Green lines from sheet metal

Forum|Forum|3 years ago
November 17, 2022
2 replies
2871 views

I would like the green lines from sheet metal to either be black on white background or white on black background.

From this post:

https://community.ptc.com/t5/System-Administration/Config-pro-option-to-change-color-of-export-to-DWG-s/m-p/569354

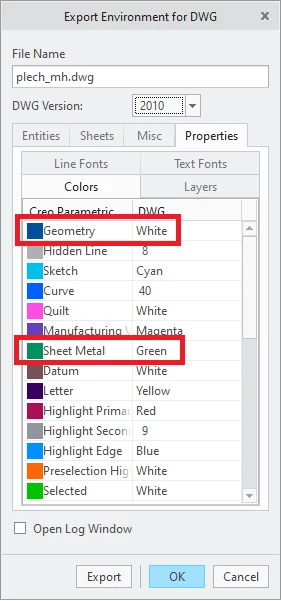

I can see where I turned everything to black and white, but the sheet metal lines still turn up green.

Any thoughts?

2D Drawing

Best answer by Tdaugherty

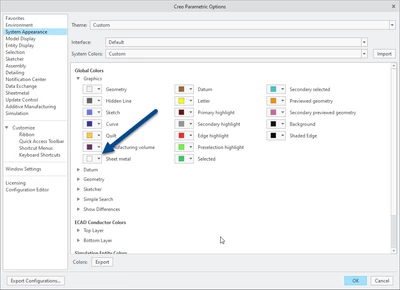

I think you can change the display of sheet metal in the options menu.

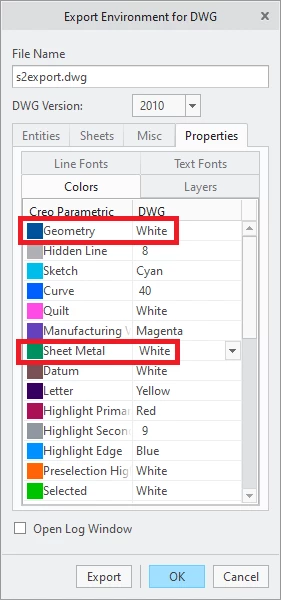

It does seem like this doesn't work exactly like I thought though. When I set the setting to white, the driving surface of my sheet metal part displays with white edges. The other edges don't though.

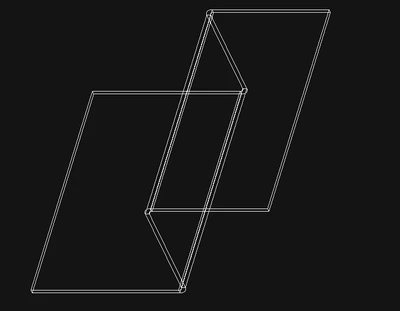

I thought that this might be related to the default appearance of my start part being green. I changed that next. I also added a few flanges to see what happens. This is the result:

Here's the drawing display as well:

I think this might be what you want but you'll have to play with it yourself.

T

Tdaugherty

Answer

16-Pearl

I think you can change the display of sheet metal in the options menu.

It does seem like this doesn't work exactly like I thought though. When I set the setting to white, the driving surface of my sheet metal part displays with white edges. The other edges don't though.

I thought that this might be related to the default appearance of my start part being green. I changed that next. I also added a few flanges to see what happens. This is the result:

Here's the drawing display as well:

I think this might be what you want but you'll have to play with it yourself.
