Helical sweep help

  • January 26, 2011
  • 1 reply
  • 2420 views

Hello,

I am making threads for a part, and they are starting and ending at the middle of the part. How do i get the threads to be continuous?

Thanks

D


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by BasaveshHiremat

Danielle,

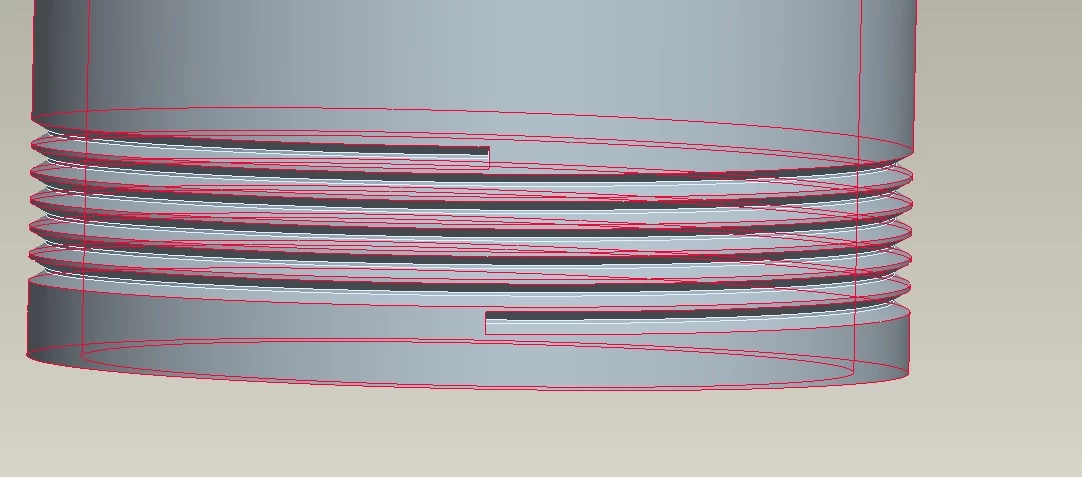

I hope i have understood your query correctly. Yes, you can change the end of threads by changing the trajectory for the sweep profile. Observe the end tip of the trajectory profile and sweep also.The attached the images are self explainatory. Let me know if there is any misunderstanding of the query.

Thanks,

1 reply

BasaveshHiremat1-VisitorAnswer
1-Visitor
January 28, 2011

Danielle,

I hope i have understood your query correctly. Yes, you can change the end of threads by changing the trajectory for the sweep profile. Observe the end tip of the trajectory profile and sweep also.The attached the images are self explainatory. Let me know if there is any misunderstanding of the query.

Thanks,
