Help! Equation Solution Request.

How do I "define" a semi-circle by an equation when Y is linear?

I know the cartesian formula:

x = 4 * cos ( t * 180 )

y = 4 * sin ( t * 180 )

z = 0

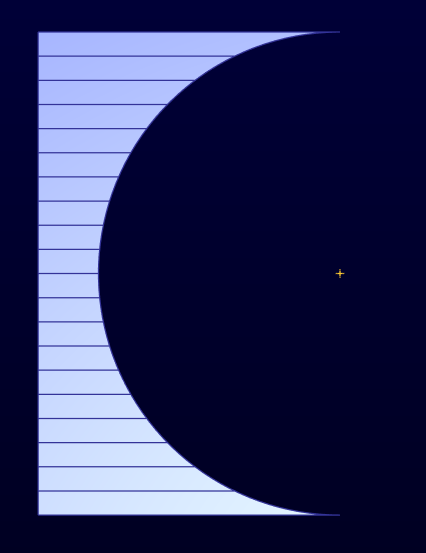

But I need to compensate for the trajectory (Y) which has a linear value.

I need the formula applied only to X given Y is linear 0-1.

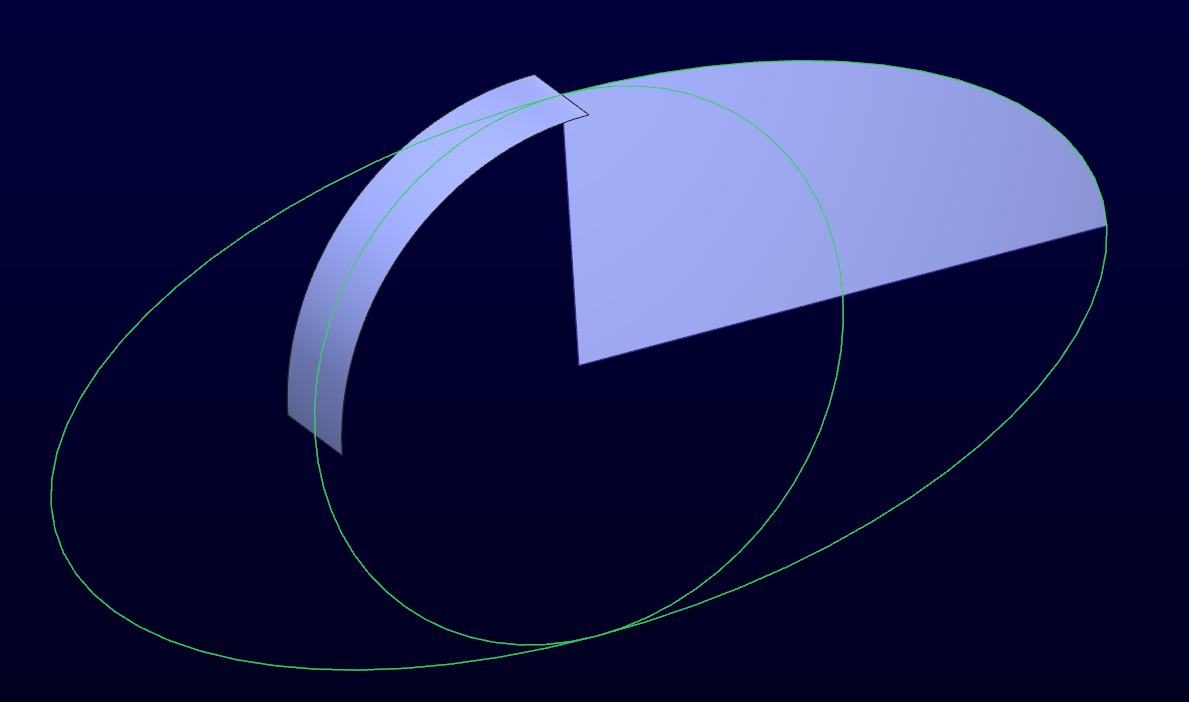

I want to sweep a VSS to make this shape. The trajpar is the given value (t as Y):



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
    VladimirPalffyAnswer
    14-Alexandrite
    June 19, 2013

    Dear Antonius

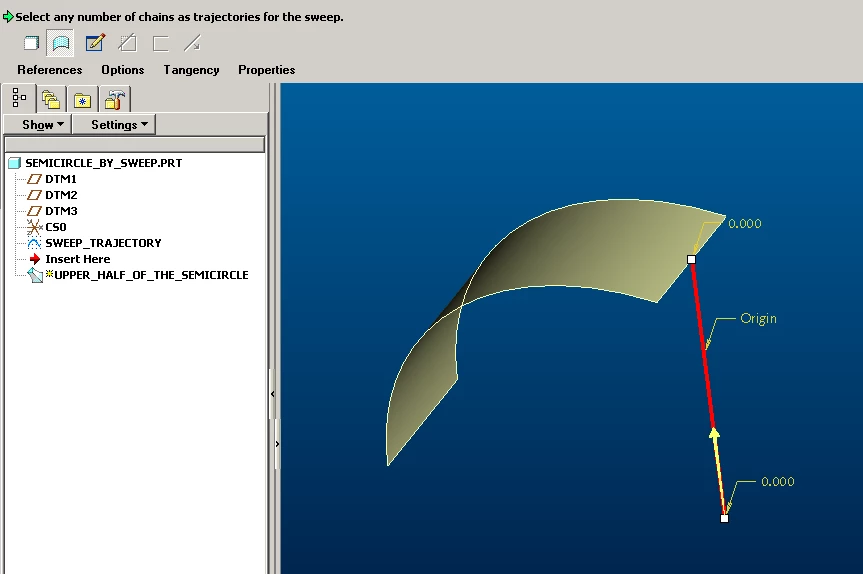

    I have tried to create SEMICIRCLE BY SWEEP feature - it is working (you can investigate my model)

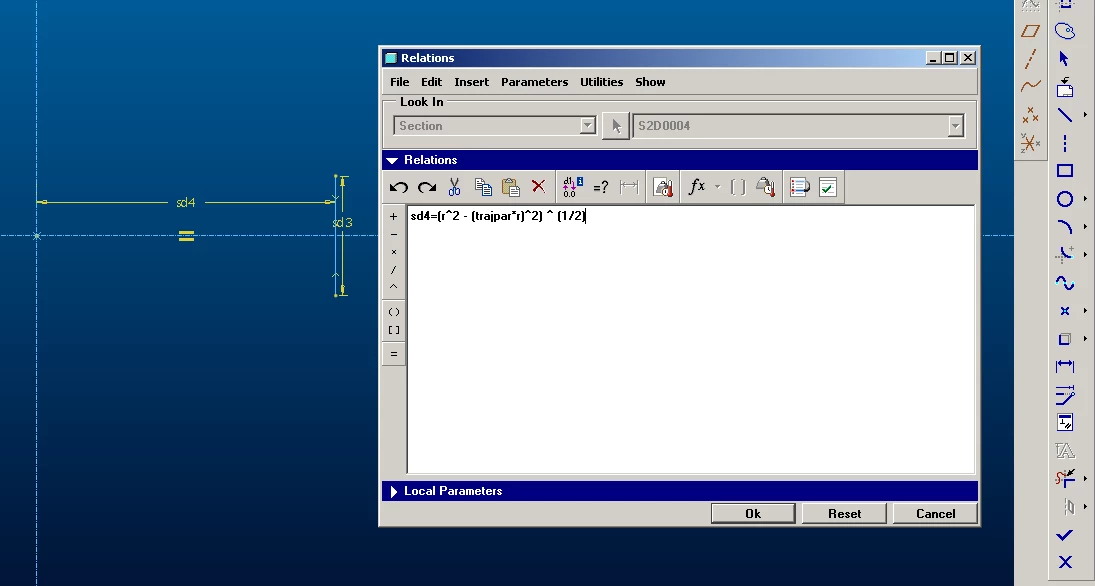

    Note: I have used for sweep feature the Relation (for UPPER_HALF_OF_THE_SEMICIRCLE) sd4=(r^2 - (trajpar*r)^2) ^ (1/2)

    Regards,

    Vladimir

    View in thread

    30 replies

    VladimirPalffy14-Alexandrite
    14-Alexandrite
    June 14, 2013

    Dear Antonius,

    I think that you can combine Sweep feature with Graph feature - the values of graph will be inputs for sweep trajpar relations.

    Regards,

    Vladimir

    Translate
    TomD.inPDX17-PeridotAuthor
    17-Peridot
    June 14, 2013

    ...or that The graph works nicely but there has to be a way to do the math.

    Translate
      VladimirN24-Ruby IV
      24-Ruby IV
      June 15, 2013

      Hi Antonius,

      Maybe "Mathcad" community able to help you: http://communities.ptc.com/community/mathcad

      Translate
      TomD.inPDX17-PeridotAuthor
      17-Peridot
      June 18, 2013

      I think the Mathcad community considers us an odd bunch and I rarely get replies... go figure

      Translate
      Patriot_1776
      Patriot_177622-Sapphire II
      22-Sapphire II
      June 18, 2013

      I'd love to help, but I suck at math! I'd be graphing that baby!

      Translate
        TomD.inPDX17-PeridotAuthor
        17-Peridot
        June 18, 2013

        I think that is why we are "visual" people... Geometry is so much simpler to "grasp" - literally

        Translate
        Patriot_1776
        Patriot_177622-Sapphire II
        22-Sapphire II
        June 18, 2013

        Exactly! Same result, just visual!

        Translate
          VladimirPalffy14-AlexandriteAnswer
          14-Alexandrite
          June 19, 2013

          Dear Antonius

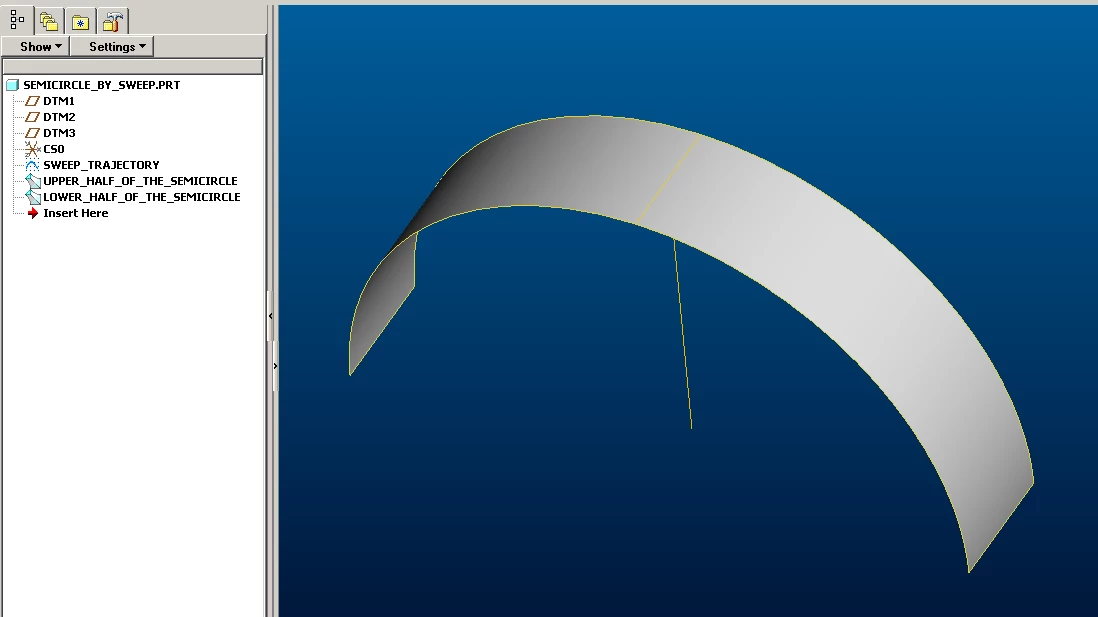

          I have tried to create SEMICIRCLE BY SWEEP feature - it is working (you can investigate my model)

          Note: I have used for sweep feature the Relation (for UPPER_HALF_OF_THE_SEMICIRCLE) sd4=(r^2 - (trajpar*r)^2) ^ (1/2)

          Regards,

          Vladimir

          Translate
            TomD.inPDX17-PeridotAuthor
            17-Peridot
            June 19, 2013

            That's the one! I suspected I would have to divide it into quarters.

            Here is the simplified "on the fly" version: sd4=sqrt((5^2 - (trajpar*5)^2))

            And as a bonus, it covers ellipses

            Thanks Vladimir!


            Translate
              TomD.inPDX17-PeridotAuthor
              17-Peridot
              June 19, 2013

              Gopal, you didn't have to remove your reply. It is definitely worthy of this discussion:

              That's the formula of a circle x^2+y^2=radius^2

              with value of Y varying from with trajectory parameter.

              Translate
