Hidden line removal for quilt not working with 2D cross-section

Hidden line removal for quilt not working with 2D cross-section from Sections used.

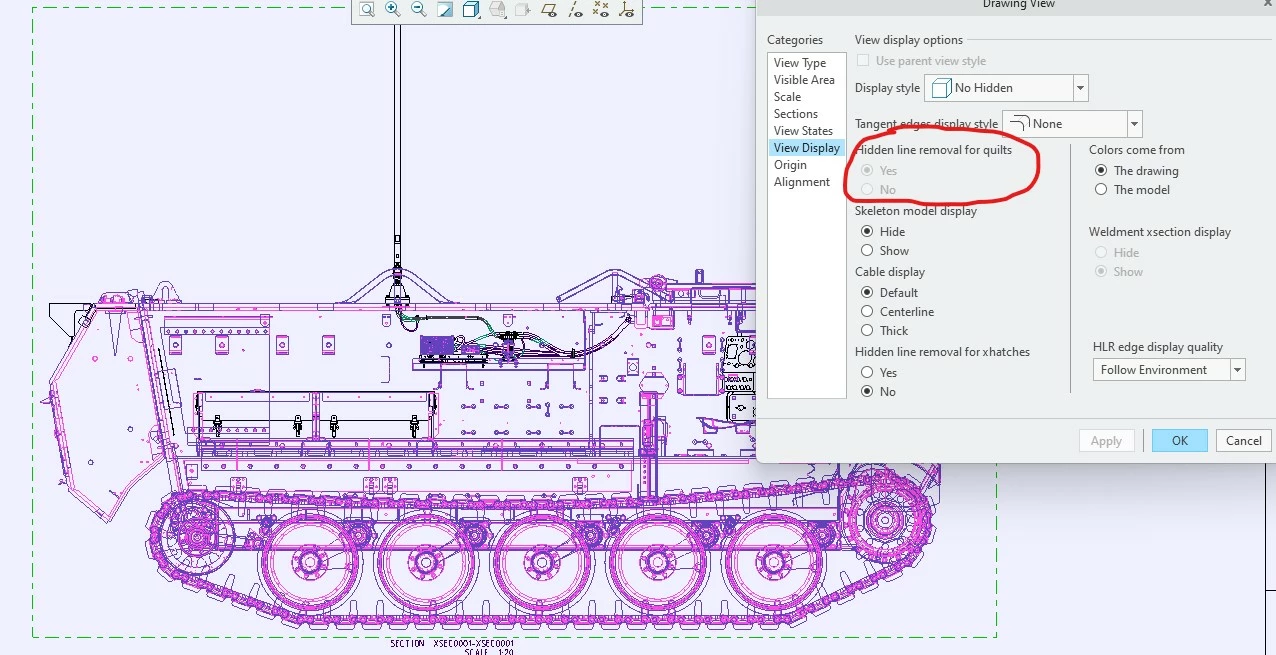

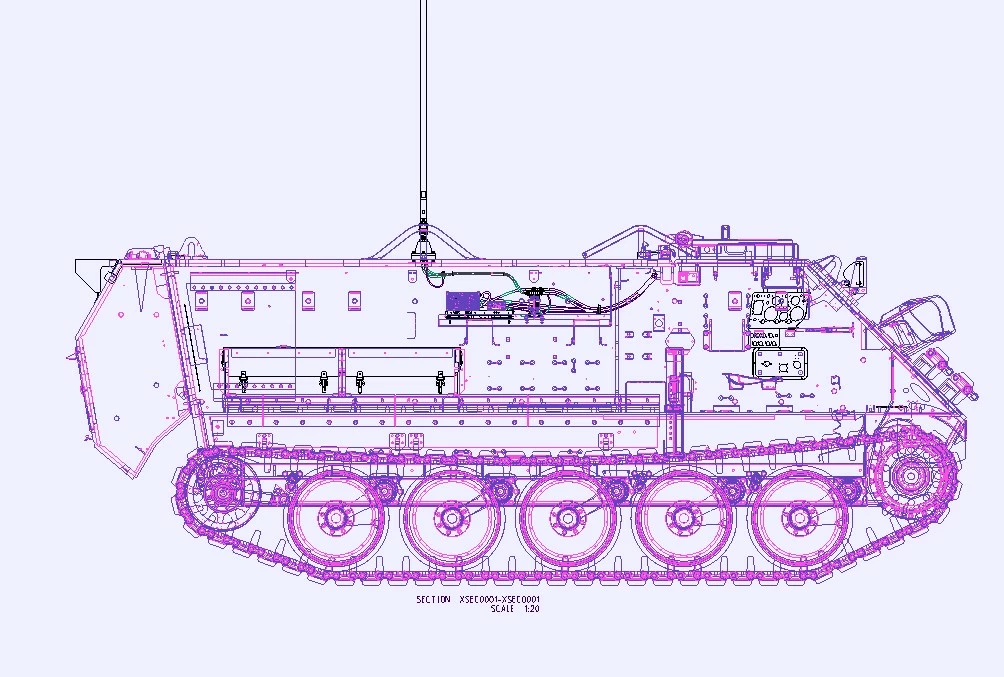

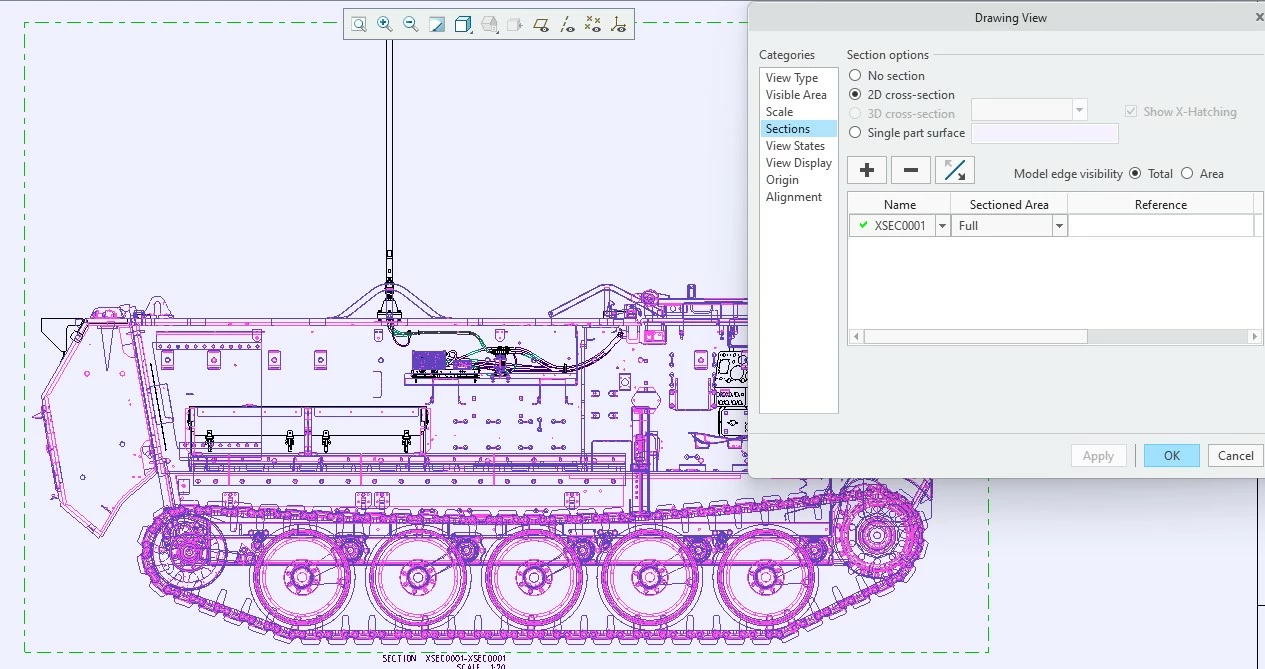

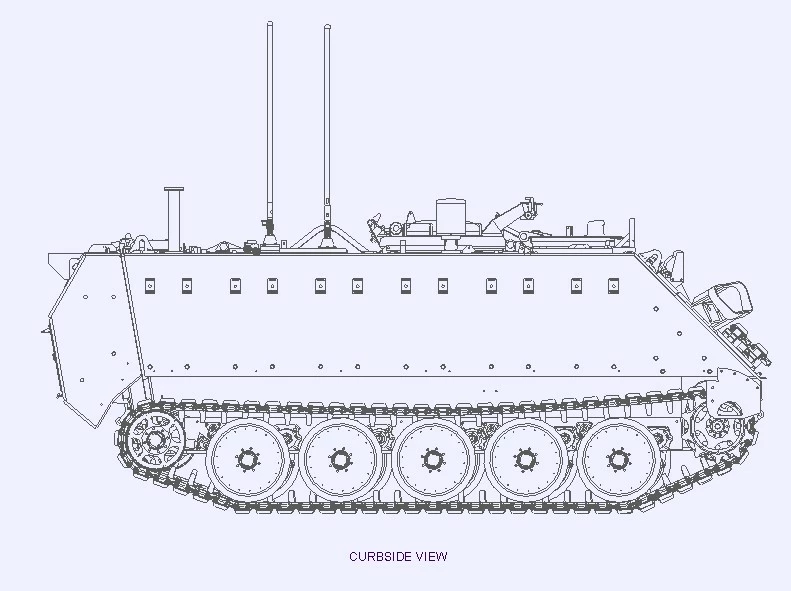

I want image 2,3,4 to be like image 1 that hides hidden line for quilts. If i select 2d section the option of hidden line is greyed out. It does not remove hidden lines. How to fix? Thanks in advance.





More to think ...more to creo!

Yogesh.T

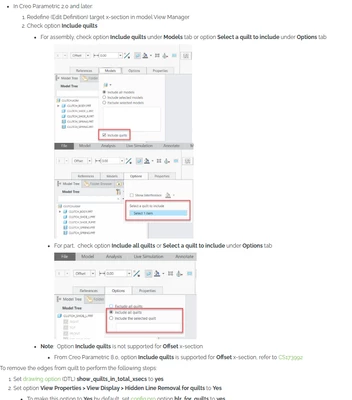

Yogesh.TAnswer
14-Alexandrite
Oct 7, 2025 2:30 PM UTC




Yogesh
View in thread

2 replies

pausob19-Tanzanite
19-Tanzanite
Oct 7, 2025 12:19 AM UTC

Maybe some of these links will help:



Cannot hide quilt - thread lines in cross section



How to enable view properties option "Hidden line removal for quilts" for cross section view containing surface parts in Creo Parametric



Cannot Hide Quilt Edges





(used this query in google search: hidden line removal for quilts in section views)
