Hide unused dimensions of coordinate system

  • November 4, 2024
  • 2 replies
  • 1000 views
I am using Creo Parametric Release 9.0 and Datecode9.0.5.0

In a coordinate system, the three transformations and the three rotations are displayed as dimensions by default.
Double-clicking on the coordinate system always displays all six dimensions, which can lead to errors such as selecting the wrong dimension.
Can I hide the dimensions that should not be changed?
    Best answer by KenFarley

    I do not know of any way to hide dimensions of a particular feature.

    If you don't want people to change them by accident, you could use a relation to assign the value of the ones you want to protect. That will at least keep people from editing the values directly. That is assuming you can use such dimensions in relations, of course. If it works, be sure to include some comments telling what you're doing and why. Future you will thank you.

    2 replies

    KenFarley
    KenFarley21-Topaz IIAnswer
    21-Topaz II
    November 4, 2024

    I do not know of any way to hide dimensions of a particular feature.

    If you don't want people to change them by accident, you could use a relation to assign the value of the ones you want to protect. That will at least keep people from editing the values directly. That is assuming you can use such dimensions in relations, of course. If it works, be sure to include some comments telling what you're doing and why. Future you will thank you.

    L
    LarsZiegler8-GravelAuthor
    8-Gravel
    November 4, 2024

    Hello KenFarley,



    that's what we're already doing today. Locking dimensions with relationships.
    Visually, it would of course also be helpful to hide other dimensions.
    Thank you for the answer!

    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    November 4, 2024

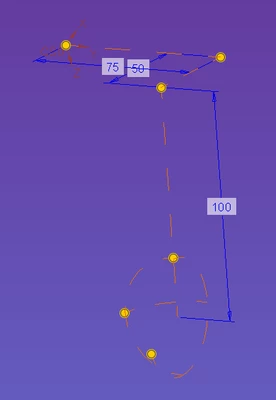

    If you show the dimensions in the model, you can then add them to a layer, then delete the dimensions from the detail tree.  However, the drag handles will still show allowing them to be dragged if not locked by a relation.




    There is always more to learn.
