In the hole tables, we get Diameter as the standard parameter to be displayed along with X and Y parameters.

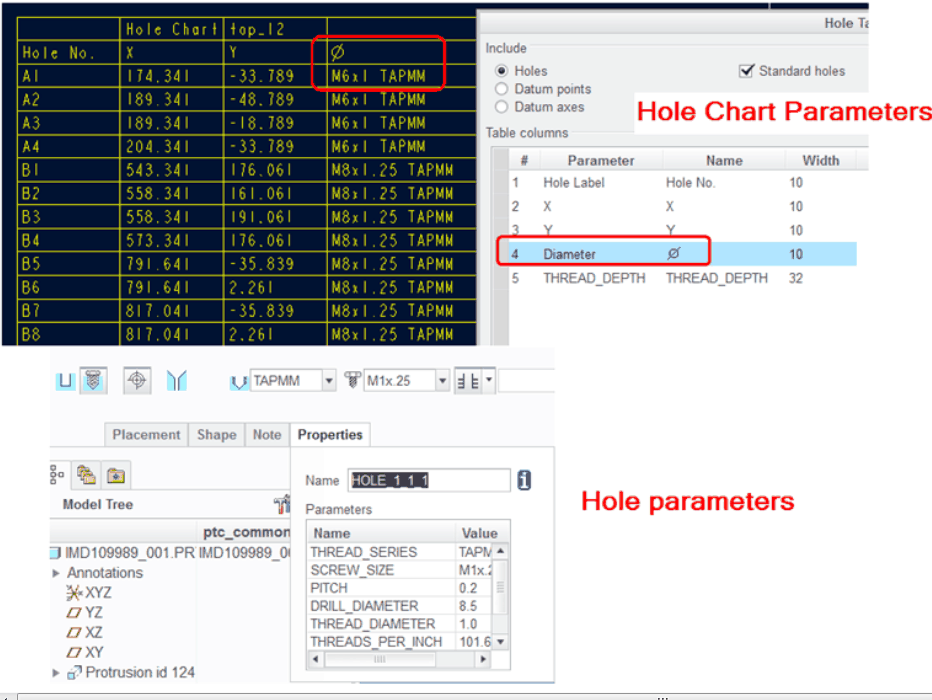

I would like to know, which hole parameter is mapped to Diameter in hole table as, I could not see any parameter in the hole describing the diameter as shown in the snap attached.

Can some one help me understanding, how the diameter of the 1st hole displayed in table is appearing as "M6x1 TAPMM"

Thanks,

Sachin


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

7 replies

MartinHanak24-Ruby III
24-Ruby III
September 16, 2014

Sachim,

the only info I can give you is that hole definition files (*.hol) are located in ...\Creo 2.0\Common Files\M070\text\hole directory. I don't know whether every column in hole definition file has its associated parameter accessible "inside" Creo Parametric.

Martin Hanak

Sachin1-VisitorAuthor
1-Visitor
September 16, 2014

Thanks Martin, I could see the .hol file is having a config option CALLOUT_FORMAT mapped to &Screw_size TAP <CTRL-a>x<CTRL-b> &Thread_depth.

This is how, it is mapped to diameter in hole table.
