How can I control the spacing of dashes in phantom, centerline, hidden, and similar lines when exporting a PDF?

  • July 24, 2015
  • 2 replies
  • 10292 views

How can I control the spacing of dashes in phantom, centerline, hidden, and similar lines when exporting a PDF? Currently, the spacing is so wide that some non-solid lines look solid in the PDF. I am running Creo 2.0.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Mike,

I realized that I used Creo Parametric 2.0 M160 when I created my video. In this version the option line_style_standard CTRLFONT number works well.

Then I tested Creo Parametric 2.0 M070. In this version the option line_style_standard CTRLFONT number does not work! It looks like your Creo Parametric 2.0 M120 has the same problem as M070.

Then I made some investigation and carefully read Axis Display Options  help page. You can find there the following sentence:

Axes that are set to CTRLFONT actually are shown as CTRLFONT_S_L or CTRLFONT_L_L, depending on their orientation.


So I went back to M070 and tried ... line_style_standard CTRLFONT_L_L number ... and it worked!

Please test line_style_standard CTRLFONT_L_L number and let me know .

Martin Hanak

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
July 24, 2015

Mike,

You may try creating pen table and use that for PDF export using config option pdf_use_pentable as yes.

Document for pen table file is available at http://support.ptc.com/cs/cs_24/howto/plt522/plt522.htm

M
mliszka1-VisitorAuthor
1-Visitor
September 4, 2015

Mahesh,

I believe a pen table will only control the thickness of lines, not the spacing of the dashes and spaces.

Mike

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 4, 2015

Mike,

Yes, pen table will control thickness, this can use to control line pattern as well.

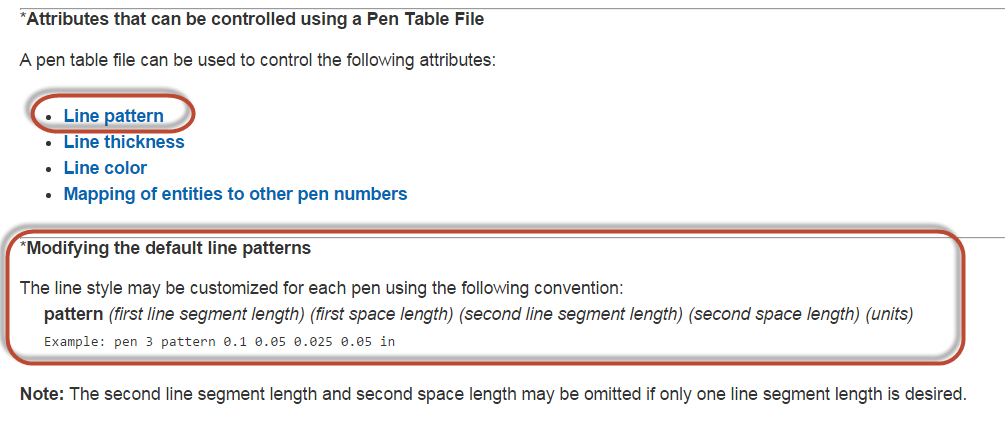

From http://support.ptc.com/cs/cs_24/howto/plt522/plt522.htm#pattern

M
MartinHanak24-Ruby III
24-Ruby III
July 25, 2015

Mike,

see my reply in Re: Axis Line Segment Distance

Martin Hanak

M
mliszka1-VisitorAuthor
1-Visitor
September 4, 2015

Martin,

This seems like it should work, but for some reason changing the line_style_length parameter seems to have no effect on the PDF output no matter what I set it to. I see in the video that you can see the result of changing this parameter in the drawing view even before you export the PDF. I don't even get that.

Mike

M
MartinHanak24-Ruby III
24-Ruby III
September 5, 2015

Mike,

install http://www.screencast-o-matic.com software and made a video showing your actions. I can watch it and check your steps.

You can also upload your testing Creo files.

Martin Hanak
