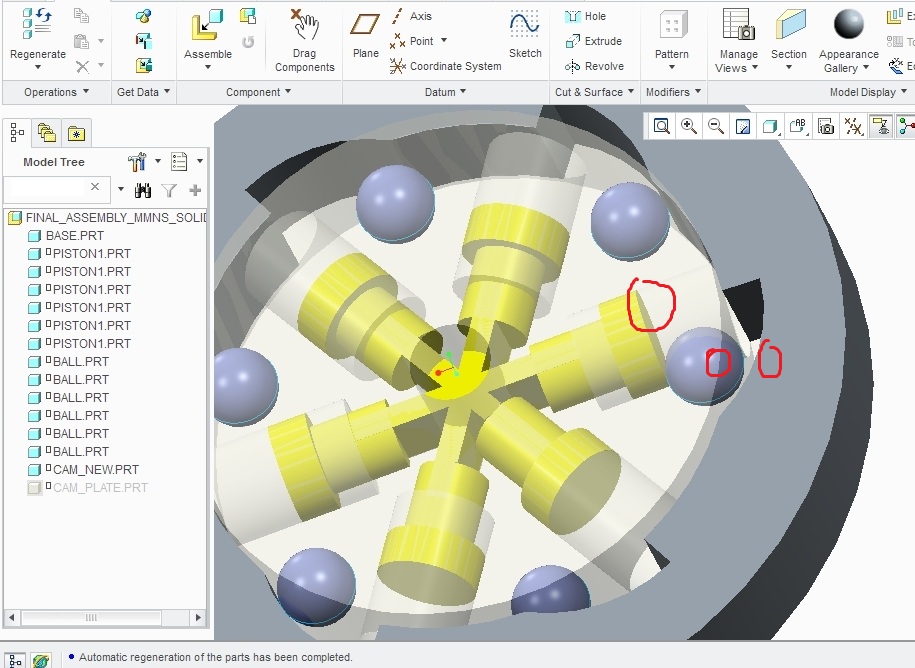

The problem is how to assemble the piston, the ball and the circular CAM ring ?

The working seems so simple : u rotate the CAM ring anti-CW to a degree, it pushes the ball and the ball pushes the plunger/piston...punching done...

Can someone help me out?

    4 replies

    T
    TomD.inPDX17-Peridot
    17-Peridot
    November 29, 2012

    We often add features to make sure we have things we can contrain.

    In the case of the sphere and piston, tangency and axis; in the case of the cam, tangency or follow a curve path.

    If you want to share the model, we might be able to come up with something slicker.

    A
    anshulpro1-VisitorAuthor
    1-Visitor
    November 29, 2012

    Sir,

    I have added the files.Please correct them if you can and re-attach them again so i could see where i was wrong.

    Also, can you give me any feedback regarding how i should learn the MECHANISM and MECHANICA.

    Since, i am in a college i can opt for "PTC 1 year e-Learning licence for Creo pararmetric"....

    Should i buy that for learning the Advanced CREO applications....?

    Is there any book available that covers MECHANISM and MECHANICA both...?

    Thanking You,

    Anshul Singh

    Under-Graduate Student

    Mechanical and Automation Engineering

    T
    TomD.inPDX17-Peridot
    17-Peridot
    November 29, 2012

    I will have a look later today on the assembly.

    As for Mechanism, cool feature but I am no expert at it. It is extra work that I am not sure is useful in most of my efforts but I can see occasion to use it, so I do need to learn it better. It is highly effective if motion is a key element in your day to day work.

    I do remember taking some helpful tutorials on this with the e-learning module. For some reason, it is not part of my current e-learning license. I have found some helpful You-Tube videos on it however. I am still having trouble just setting up the motor

    I try to stay within the bound of the basic package but I can see how it can quickly fall into shortcomings with plastics design and maybe even some highly dynamic assembly models. Then again, I am old world... I can develop an entire system with non-parametric wireframe modelers and be perfectly happy. So do not use me as an example. It is always good to learn as much as you can about the software you are using. Knowing its capabilities is -as- important as using it.
