How to calculate the Developed length in Pro/Sheetmetal?

  • January 21, 2013
  • 1 reply
  • 8924 views

Hi All,

Can anyone help me to calculate the developed length in Creo/ProE Sheetmetal.

Thanks in Advance

Amit


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

I see, there are bend allowances based on the material. These are values that you can enter or allow to default based on pre-defined tables.

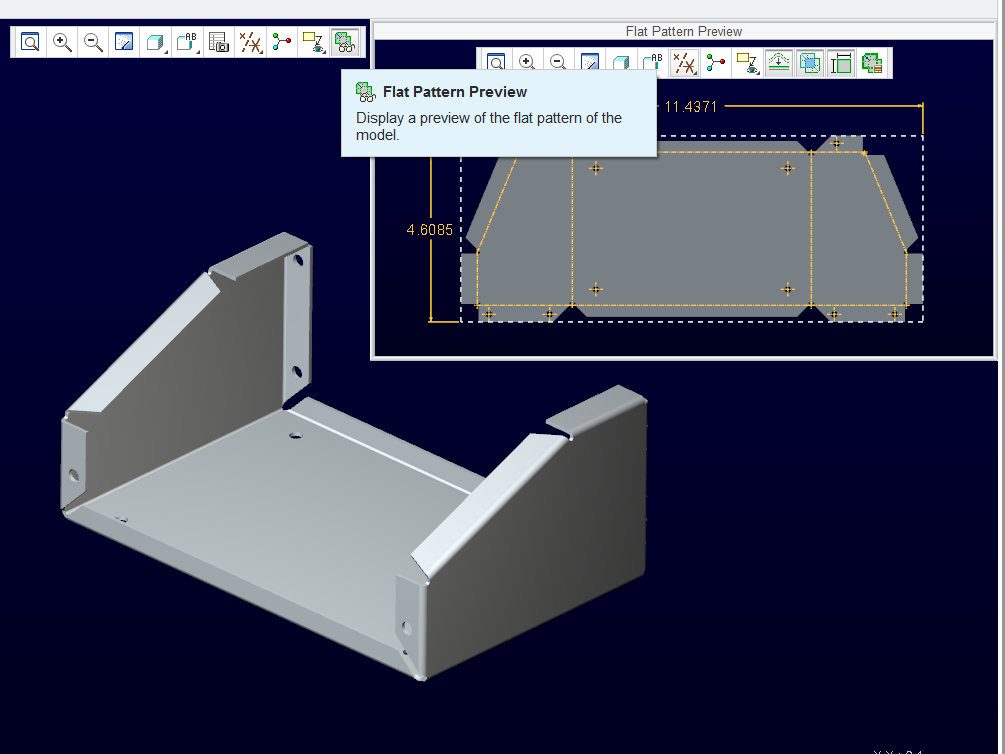

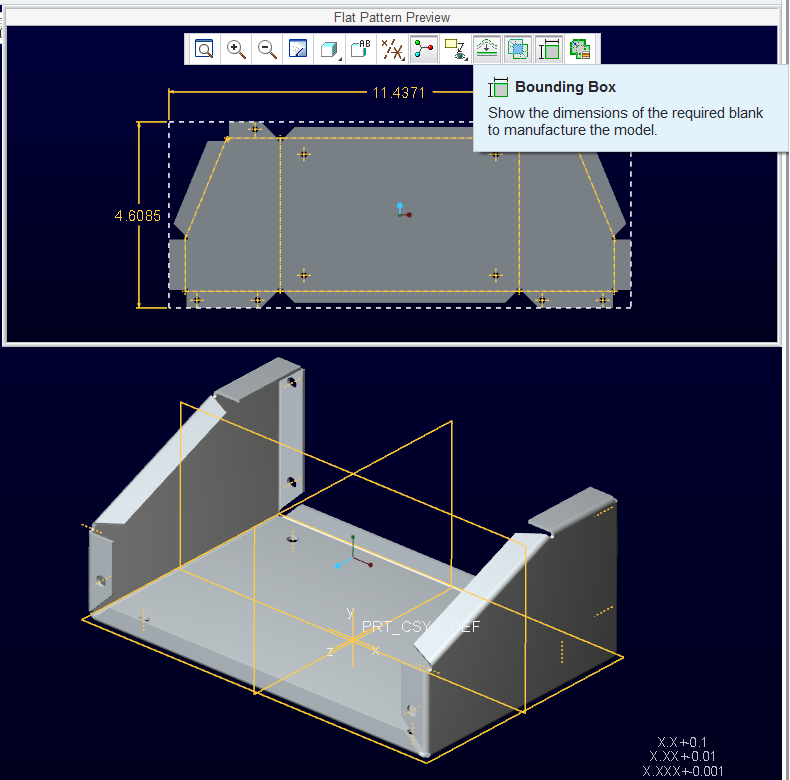

In general, there is stretch and crush going on in the bend. If you overall size is 100x100 and 100x50, then the result will the slightly less that 150. in Creo 2.0, in the flat view pop-out window, you can have the overall size shown by using the button on the graphics toolbar in the pop-out window.



1 reply

T
TomD.inPDX17-Peridot
17-Peridot
January 22, 2013

Can you clarify your question?

A
amitshah1-VisitorAuthor
1-Visitor
January 22, 2013

I have a sheet with bend wall. Now after unbend the total length of the sheet should be including the radius of the bend.

E.g. Sheet is of 100X100 and bend wall attached is of 100X50 with radius = thickness.

After unbend what should be the total length.

T
TomD.inPDX17-PeridotAnswer
17-Peridot
January 22, 2013

I see, there are bend allowances based on the material. These are values that you can enter or allow to default based on pre-defined tables.

In general, there is stretch and crush going on in the bend. If you overall size is 100x100 and 100x50, then the result will the slightly less that 150. in Creo 2.0, in the flat view pop-out window, you can have the overall size shown by using the button on the graphics toolbar in the pop-out window.
