How to change the cross hatch color different from component edge color & how to set it as default template color.

  • March 11, 2016
  • 1 reply
  • 2134 views

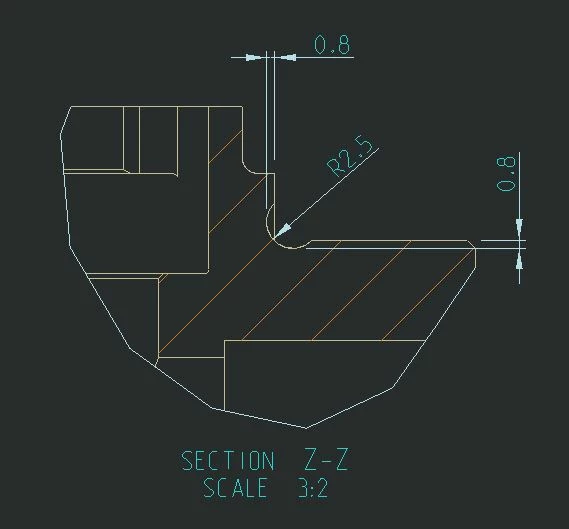

Actually I want to set different color for crosshatch in drawing sectioned view. The color of the hatching should be different from component edge & dimension extension line colors. And I want to set it as default color in my drawing templates.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

G
gkoch1-Visitor
1-Visitor
March 15, 2016

The default color for x-hatching is always letter color - I don't think this can be changed (of course you can change the letter color, but this is probably not the point)

You can save x-hatch patterns (with line style) to disk and retrieve them from there, but they cannot be set as a default for a drawing (template).

What you can do however, is associate different cross hatching with material files - see CS32616
