How to change the layout of these dimensions in a leader note to ISO Tolerance Display Style?

  • August 30, 2018
  • 1 reply
  • 5033 views

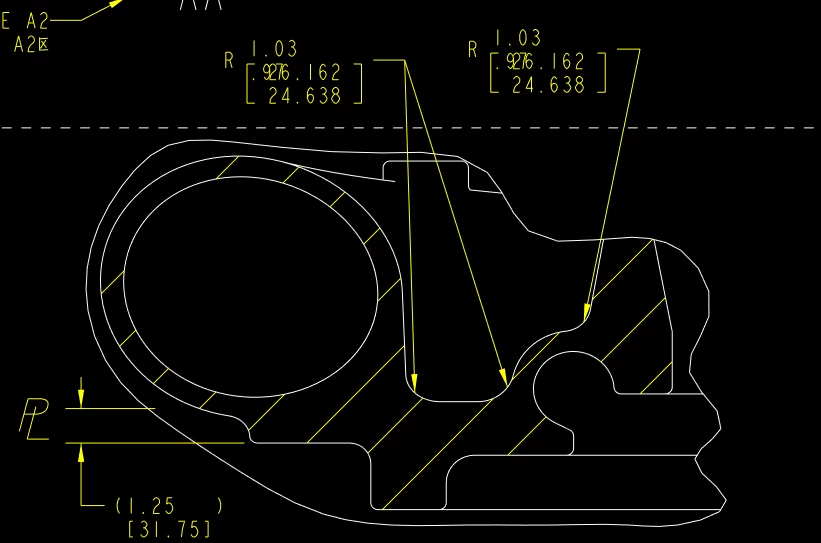

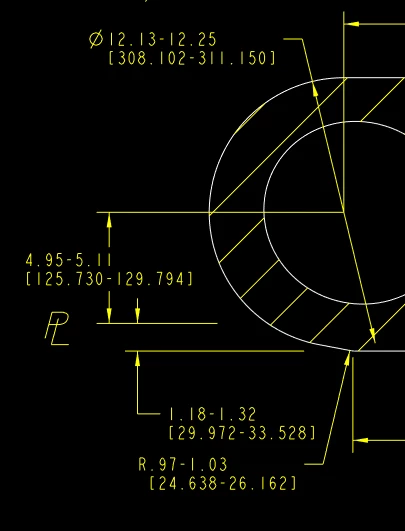

I am having this issue trying to get this note fixed (image 1). With the other dimensions I have on the drawing, I set them to iso but can't do it to the notes.  I tried setting the drawing properties but didn't work. End goal is to look like image 2.





Thanks

1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
August 30, 2018

Set detail option default_tolerance_display_style to value std_iso. This will work for new dimensions.



Further details are in article at https://www.ptc.com/en/support/article?n=CS24262



I hope this will help.

M
MTK1438-GravelAuthor
8-Gravel
August 30, 2018

Is there anyway to correct the ones already on the drawing??

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
August 30, 2018

Uncheck "Iso Tolerance Display style" under Display tab on Dimension properties dialog box for specific dimension.
