how to create sheet metal part from solid part

  • June 27, 2015
  • 1 reply
  • 1870 views

how to create sheet metal part from solid part if the surfaces are intersected not in right angle


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

kdirth
kdirth21-Topaz I
21-Topaz I
June 30, 2015

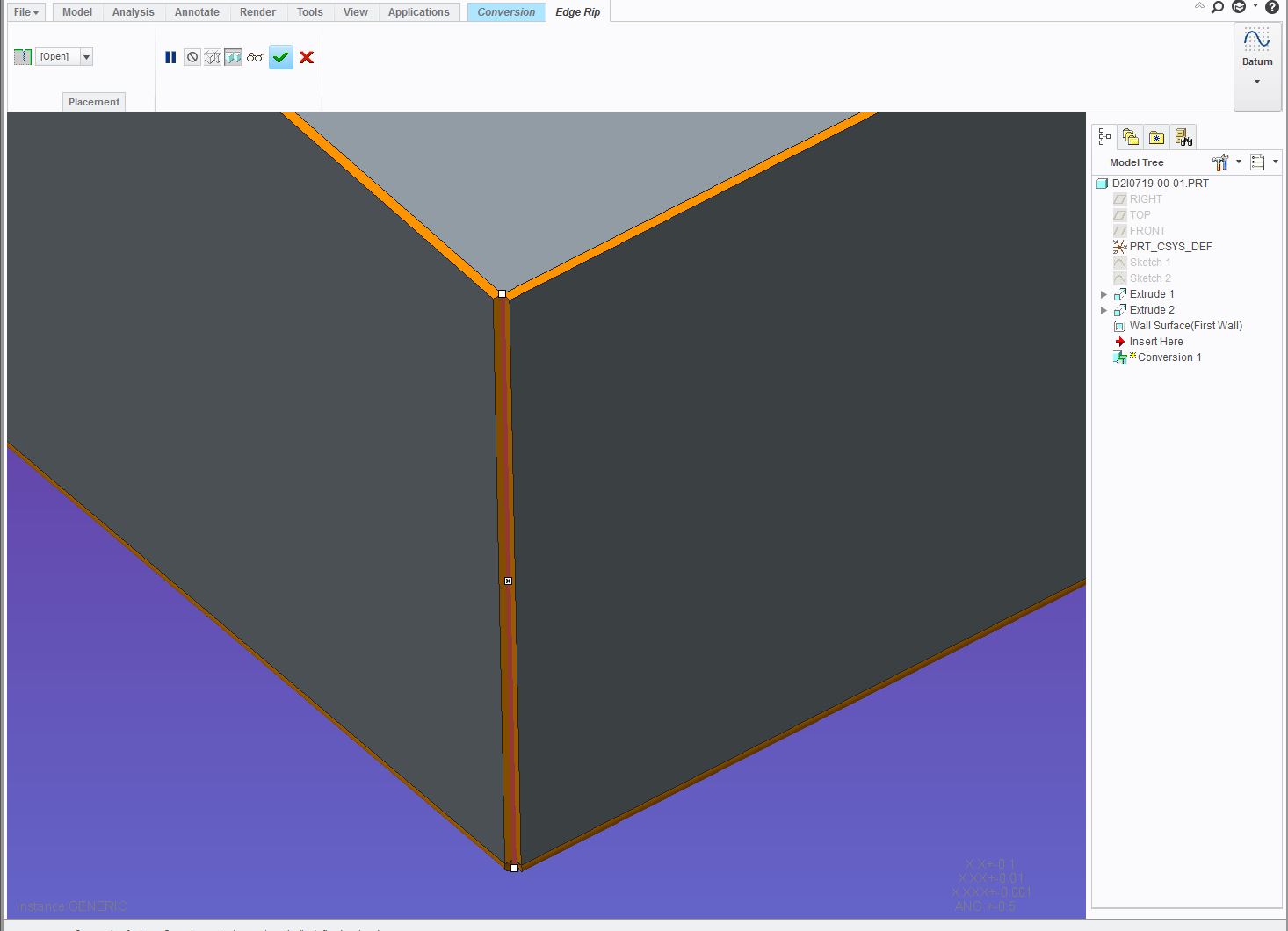

You need to use Conversion from the Engineering menu area and create Edge rips for each of the four corners to complete the conversion to sheetmetal.

There is always more to learn.
S
skorochin1-VisitorAuthor
1-Visitor
July 1, 2015

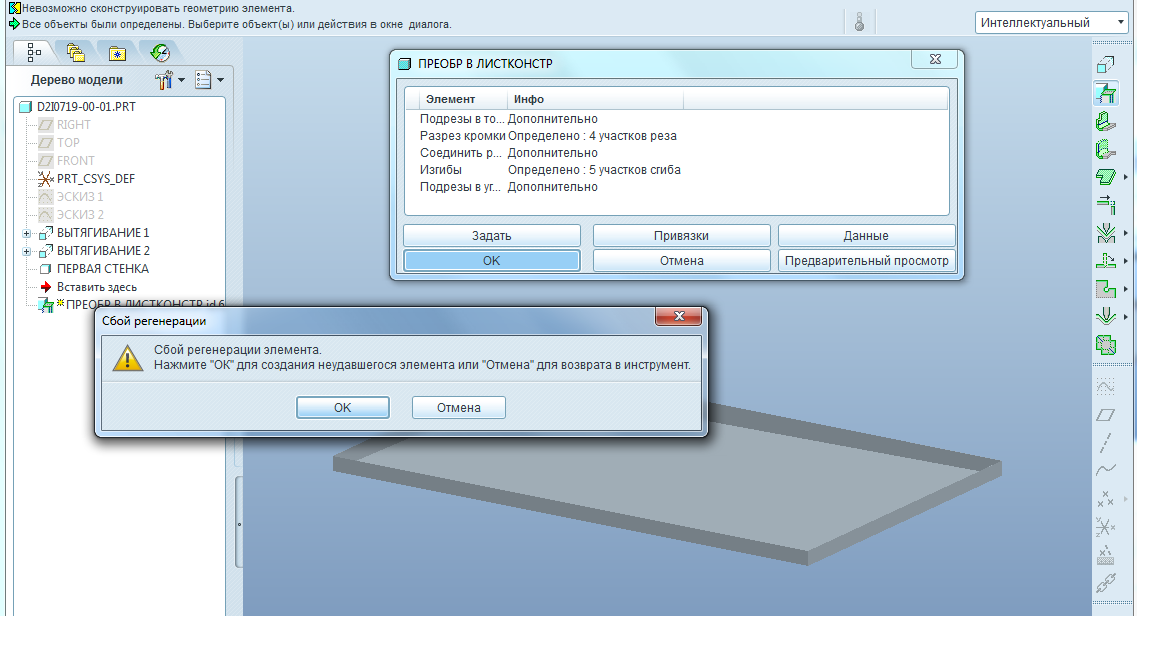

This us the issue to use Conversion to get the target.


it must contain additional terms, but I do not see how to do it.

kdirth
kdirth21-Topaz I
21-Topaz I
July 1, 2015

Not being able to read the language, I can only guess at what the problem is.  Using the Conversion tool, select edge rip and select all four corners that need to be opened.


Hope this helps.

There is always more to learn.
