how to develop this?

  • July 25, 2014
  • 49 replies
  • 12791 views

how to flatten this ?

made in creo elements/pro 5.0

    Best answer by TomD.inPDX

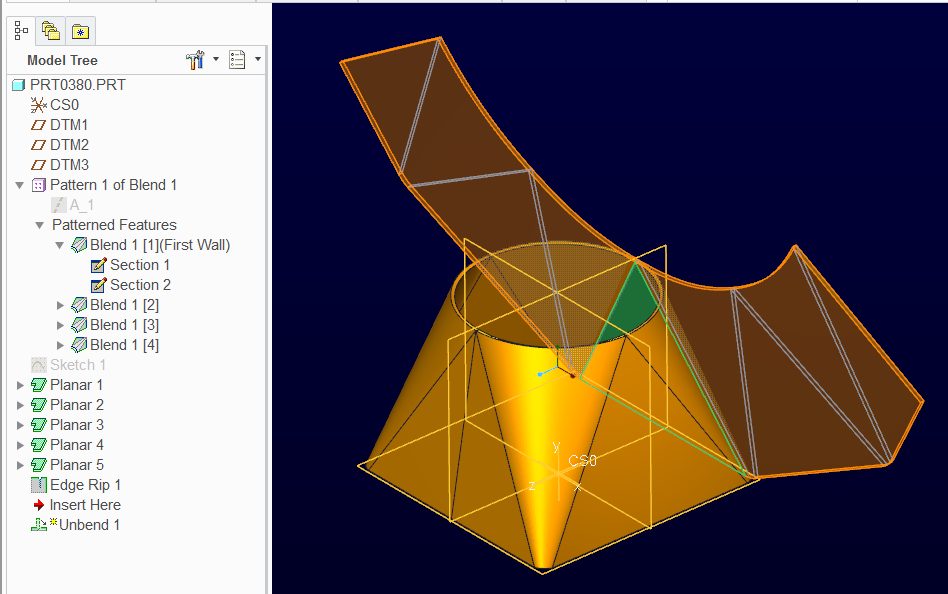

    And if the facets are not desirable... and you want a true round top, this was the best I could come up with:


    The corners are blends, and the planar features are the flat triangles.

    Did you want the Creo 2 part of either of these?

    49 replies

    rohit_rajan15-MoonstoneAuthor
    15-Moonstone
    July 26, 2014

    has anybody tried this?

    i was surprised when i was not able to make this with boundary blend.

    TomD.inPDX17-Peridot
    17-Peridot
    July 26, 2014

    We did have this discussion before. It can be done with sheetmetal.


    TomD.inPDX17-PeridotAnswer
    17-Peridot
    July 26, 2014

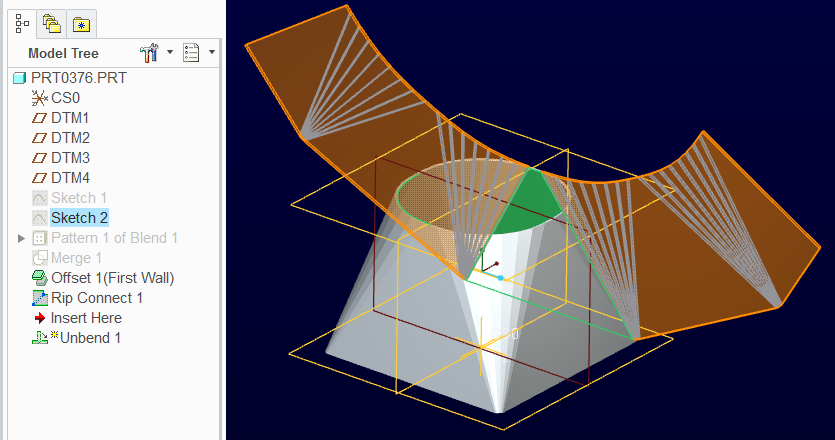

    And if the facets are not desirable... and you want a true round top, this was the best I could come up with:


    The corners are blends, and the planar features are the flat triangles.

    Did you want the Creo 2 part of either of these?
