How to do skeleton modelling

  • February 26, 2010
  • 7 replies
  • 1796 views

Hello Buddie

Good Day!!

My team want to do TOP DOWN DESIGN , So we have used skeleton modelling for to do top down design. We have around 700 variants in my top level assembly.

Skeleton model technique

1.Draw the sketch

2.Publish Geometry

3.Create part, copy the geometry from skeleton.

This method we are using. But the copy geometry is not external copy geometry. We have lot of variants in each level part.

Is this method is create??

My question is If I am going to do check in any sub assembly model in windchill, Do we need to check in 700 top level variants in windchill?

Can any one tell me any other method. What about external copy geometry, external copy geometry will work with top down design?? If it is how can I use external ref copy geometry for skeleton modelling??

Please find the example model. kindly help me to solve this issue

Suganthan Rajamanickam

Pro-e System Analyst

Trane Design Centre, India

Ingersoll Rand


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

7 replies

S
suganthan.mech1-VisitorAuthor
1-Visitor
February 26, 2010


In Reply to Suganthan Rajamanickam:

Hello Buddie

Good Day!!

I am using Pro/E wildfire 3

My team want to do TOP DOWN DESIGN , So we have used skeleton modelling for to do top down design. We have around 700 variants in my top level assembly.

Skeleton model technique

1.Draw the sketch

2.Publish Geometry

3.Create part, copy the geometry from skeleton.

This method we are using. But the copy geometry is not external copy geometry. We have lot of variants in each level part.

Is this method is create??

My question is If I am going to do check in any sub assembly model in windchill, Do we need to check in 700 top level variants in windchill?

Can any one tell me any other method. What about external copy geometry, external copy geometry will work with top down design?? If it is how can I use external ref copy geometry for skeleton modelling??

Please find the example model. kindly help me to solve this issue

Suganthan Rajamanickam

Pro-e System Analyst

Trane Design Centre, India

Ingersoll Rand



Suganthan Rajamanickam

Pro-e System Analyst

Trane Design Centre, India

Ingersoll Rand

P
PAULKORENKIEWIC1-Visitor
1-Visitor
February 26, 2010
I suggest you outsource this to the USA where I know of several firms
who can handle this type of work... 😉

W
wattsteam1-Visitor
1-Visitor
February 26, 2010
The firms Paul K is thinking of are probably very competent with ProE skeleton and other ProE techniques too, unlike your group, Buddie.
G
gdt1-Visitor
1-Visitor
February 26, 2010

AMEN!
MikePhillips
MikePhillips12-Amethyst
12-Amethyst
February 27, 2010
Absolutely AMEN!

P
ptc-7261111-Visitor
1-Visitor
February 27, 2010

Suganthan,

Here are some links to previous threads about using skeletons in Pro-E:

There are also discussions about skeletons on the MCAD Central forum (Pro-E): http://www.mcadcentral.com/proe/forum/default.asp

Chris Thompson

www.appianwaytech.com


Hello Buddie

Good Day!!

My team want to do TOP DOWN DESIGN , So we have used skeleton modelling for to do top down design. We have around 700 variants in my top level assembly.

Skeleton model technique

1.Draw the sketch

2.Publish Geometry

3.Create part, copy the geometry from skeleton.

This method we are using. But the copy geometry is not external copy geometry. We have lot of variants in each level part.

Is this method is create??

My question is If I am going to do check in any sub assembly model in windchill, Do we need to check in 700 top level variants in windchill?

Can any one tell me any other method. What about external copy geometry, external copy geometry will work with top down design?? If it is how can I use external ref copy geometry for skeleton modelling??

Please find the example model. kindly help me to solve this issue

Suganthan Rajamanickam

Pro-e System Analyst

Trane Design Centre, India

Ingersoll Rand

S
suganthan.mech1-VisitorAuthor
1-Visitor
March 11, 2010
Sujay

Yes I can.

Skeleton model technique

1.Draw the sketch

2.Publish Geometry

3.Create part, copy the geometry(External) from skeleton.



This method is correct. As we create a external copy geometry in part, It will not refer any top level assembly if we "check in" any of the part in PDM link.

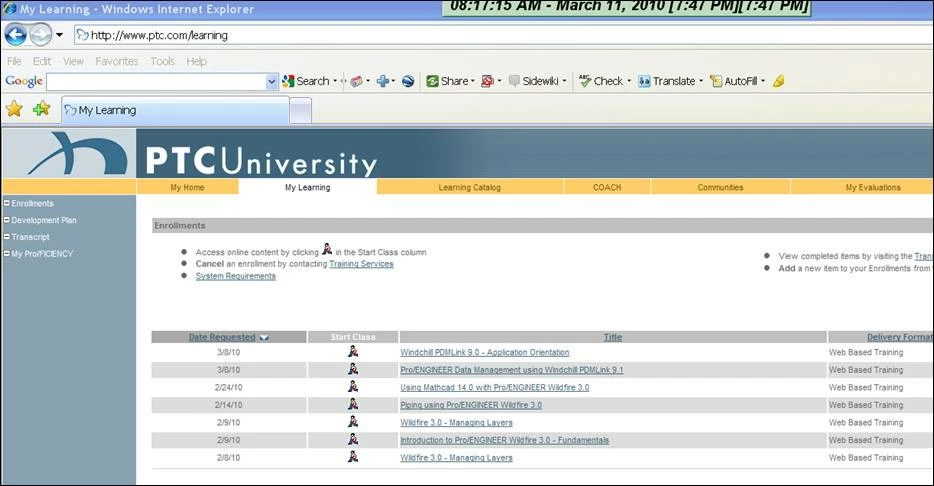

More details you can check with this website. You have to register .
