How to fit format size to paper size ?

  • October 28, 2015
  • 1 reply
  • 4371 views

Hello,

In my company, we're doing a lot of custom sized drawing.

So I want to know if it's possible to create a format fitting to the drawing paper size. And how, if yes.

I don't want to create a new format for each new custom size I need.

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomU23-Emerald IV
23-Emerald IV
October 28, 2015

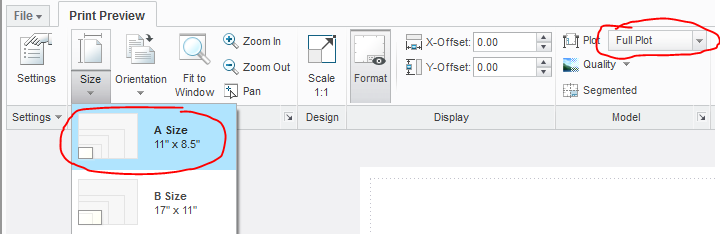

When a format is larger than the paper size, Creo will (or at least is supposed to) automatically fit it to the paper size.  Just make sure you pick your intended paper size for output and have the plot set to "Full Plot".


A
adeguy1-VisitorAuthor
1-Visitor
October 28, 2015

But the paper scale and the drawing scale doesn't match with this solution.

T
TomU23-Emerald IV
23-Emerald IV
October 28, 2015

Correct.  If you want to make sure the paper scale always agrees with the drawing scale, then you should only use formats (and drawing sizes) that exactly match the actual paper size.  In that case, you would only need a couple of formats (A and B) and then simply adjust the drawing's scale so everything fit.

You can't have it both ways.  Either you reduce the drawing scale so everything fits on your paper sized format, or you leave the drawing full scale, use a big enough format so everything fits, and then let Creo scale it all to fit the selected paper when actually printing.
