How to flatten 3D curved surface?

Forum|Forum|13 years ago
May 7, 2013
3 replies
2480 views

Hello all,

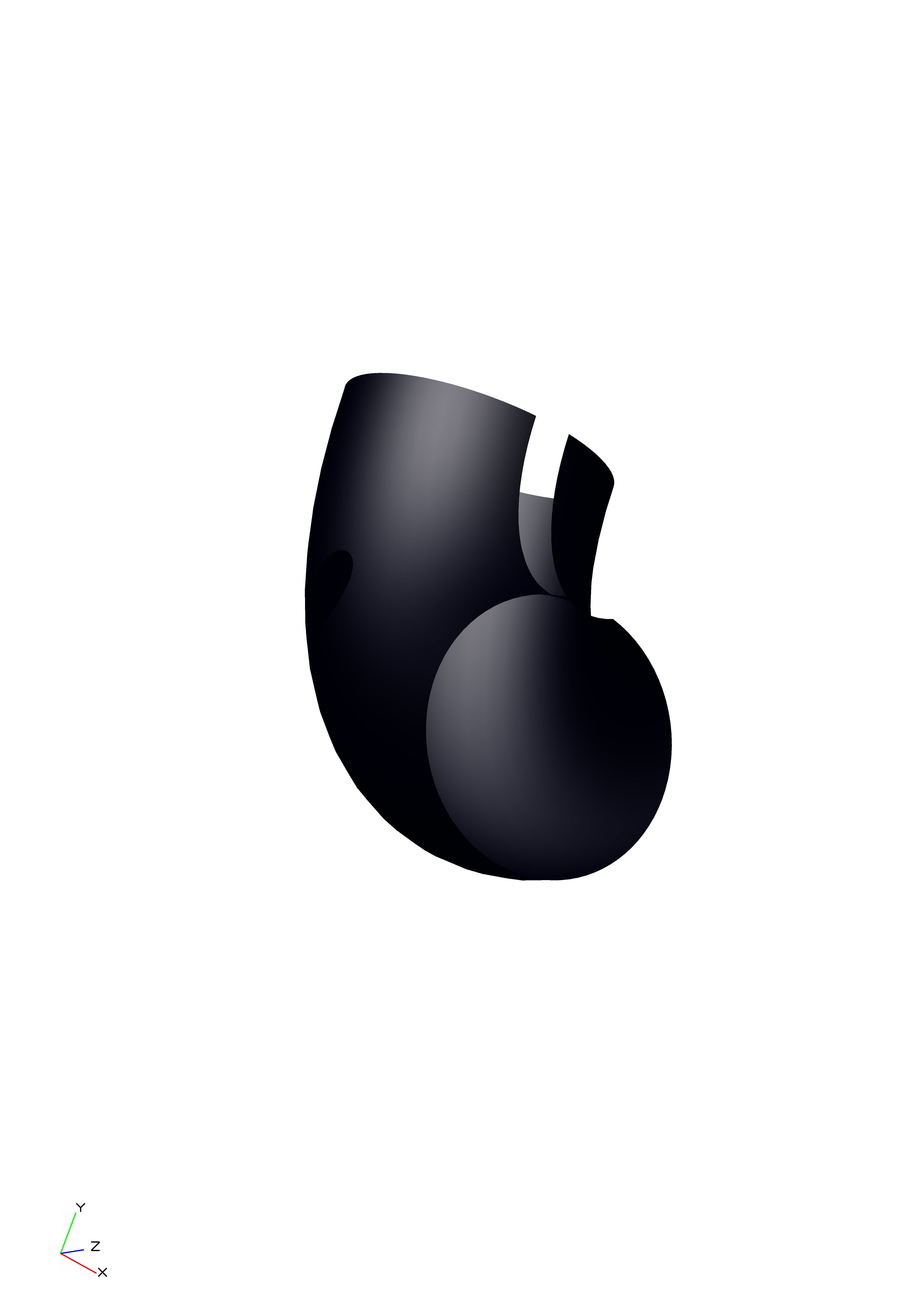

Am trying to find a way to flatten a 3d curved surface of a pipe bend. It has a split down the middle to break and am looking to find the flattened shape.

Any ideas or thoughts greatly appreciated.

1_flatten-prt-1.zip

Surfacing

P

ptc-4890452

1-Visitor

Try to convert it to sheetmetal and then use the flattening feature.

Not sure if it will work, though.

D

dgschaefer

21-Topaz II

Sheet metal won't flatten that. You can try the flatten quilt feature, but I doubt that's going to give good results either.

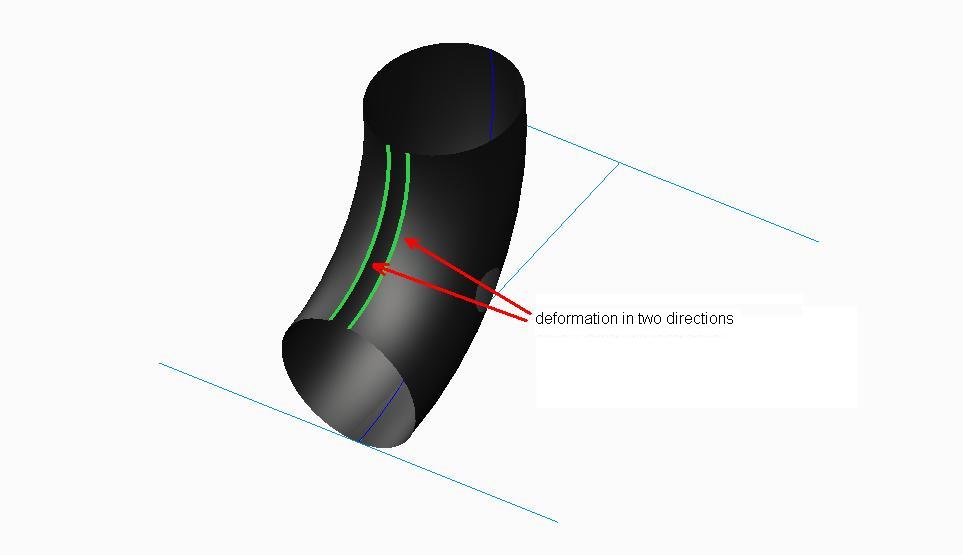

This is a geometry problem, not a CAD problem. This is not 'flattenable' geometry. No matter what it will have to be stretched or compressed to produce a flattened surface.

What are you trying to get by flattening it?
