How to get pipe segment length with repeat region bend table ?

  • May 19, 2017
  • 1 reply
  • 1479 views

Hi,



We want to show pipe segment length in pipe bend table, so pls can someone help how to achieve this with repeat region.

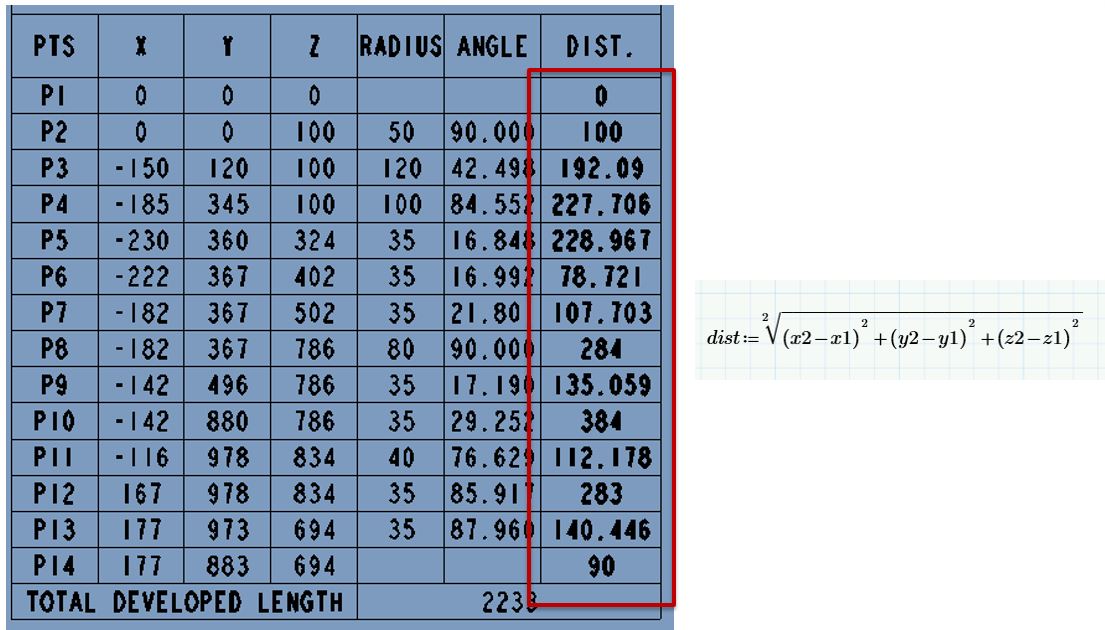

Detail required table and formula is given as below snap.






Thanks,

Prashant Pandarkar

1 reply

A
AmitDeshpande18-Opal
18-Opal
May 19, 2017

Hi Prashant,

If you have access, please take a look at CS167948.  If not, the resolution of the article is:

  • Not part of Pro/ENGINEER or Creo Parametric functionality
  • To request this functionality, refer to Product Ideas @ PTC Community
  • Workaround:
    • Create repeat region table based on below report parameters and insert the table multiple times by changing the SIZE through filters.
      • &asm.mbr.pipe.segment.name
      • &asm.mbr.pipe.segment.stock.SIZE
      • &asm.mbr.pipe.segment.len.pre_cut

Thanks,

Amit
