How to handle the BASIC dimensions in Pro-E WF5...?

  • June 27, 2013
  • 5 replies
  • 2085 views

Hello i was using Pro-E WF3 till date and sincecouple of days i'm using Pro-E WF5. And i'm facing an issues with basic dimensions, like in WF3 for basic dim. with number of instances we have a provision of wrighting that 2X 50.5 into a box. But in WF5 the 2X comes out side the box. Which is irritating me. Hence please help me how to make as WF3, means all should come in a box for basic dimensions as below

Example
2X 50.5

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

1-Visitor
June 27, 2013

Hi,

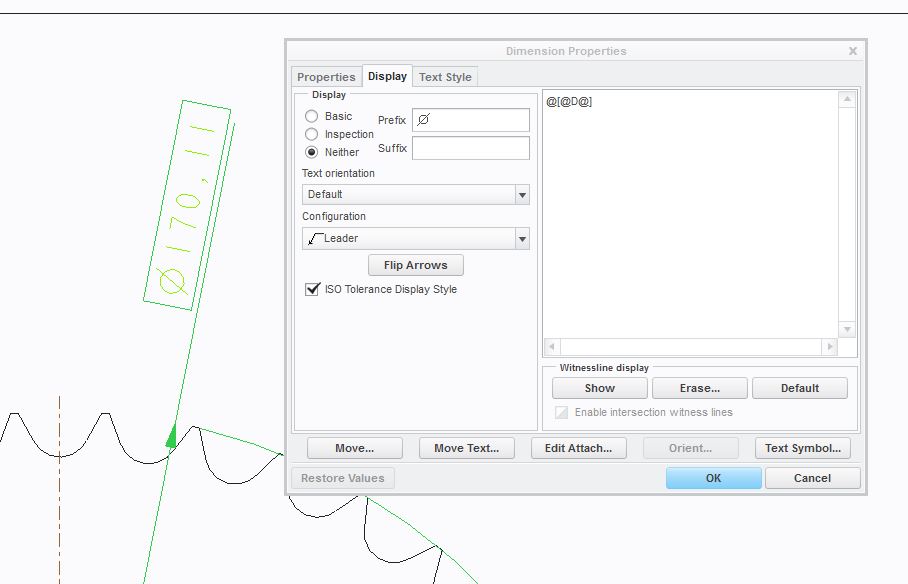

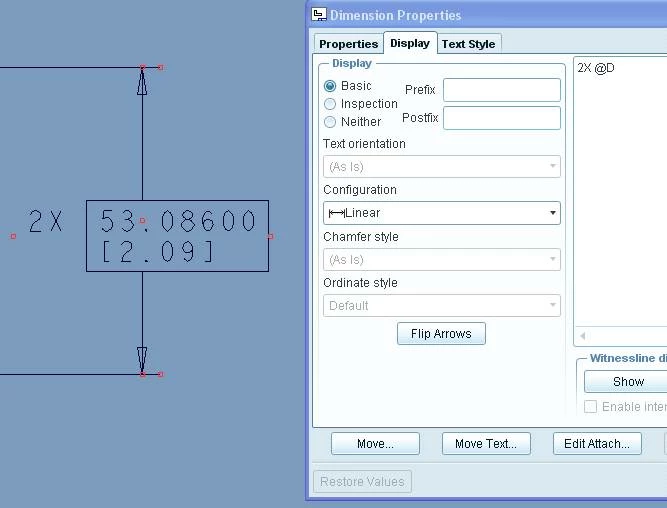

The following picture is from Creo 2.0, but I guess this should work in WF3 as well.


17-Peridot
June 27, 2013

According to all the conventions of drafting practive, the "2X" belongs outside the box.

But if you insist, You can add that to Jakub's method.

1-Visitor
June 27, 2013

It can go inside the box. You can look on the cover of ASME Y14.5-2009 and see that they put the 8X inside the basic box of the 45degree symbol.

Veerangowda,

Why are you putting a 2x on a basic linear dimension. You might be able to use symmetry lines to achieve what you want. Can you post a larger picture to see where these dimensions are going?

17-Peridot
June 27, 2013

I'll be damned I guess PTC needs to do a bit more work on the basic dimension feature

Scott Wyatt wrote:

It can go inside the box. You can look on the cover of ASME Y14.5-2009 and see that they put the 8X inside the basic box of the 45degree symbol.
