how to improve 3D modeling of circle

Forum|Forum|12 years ago
April 18, 2014
2 replies
7270 views

Hi,

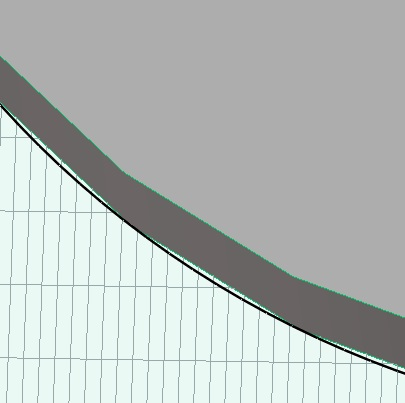

I find out that going fron a circle in 2D to 3D structure the arc definition is not really good. Do i need to use the Spline tool to rebuild the entire circle or there is another way.

PS: sorry for my english, i am french.

thanks

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

I

Inoram

14-Alexandrite

If you sketched with the circle command in the Sketcher and revolve it, it's a circle, it sounds like you might be seeing display quality? Can you post a picture?

P

ptc-5882915

Author

1-Visitor

yes

D

dschenken

1-Visitor

This is due to the conversion from a precise surface definition, which Pro/E maintains, to a faceted representation which the computer graphics card displays. Sometimes just regenerating the model when zoomed up will cause a smoother representation to be made. This will happen even with the spline tool. It doesn't affect the actual smoothness of the surface - a CNC program would make a very smooth curve based on the Pro/E data.

S

sali-2

1-Visitor

ITS ONLY A GRAPHICS DISPLAY ISSUE,Eric Terrell HAS EXACTLY ANSWERED THIS QUESTION,SETTING EDGE DISPLAY QUALITY TO VERY HIGH AND USING MORE POWERFULL GRAPHICS CARD COULD BE MORE BETTER.
