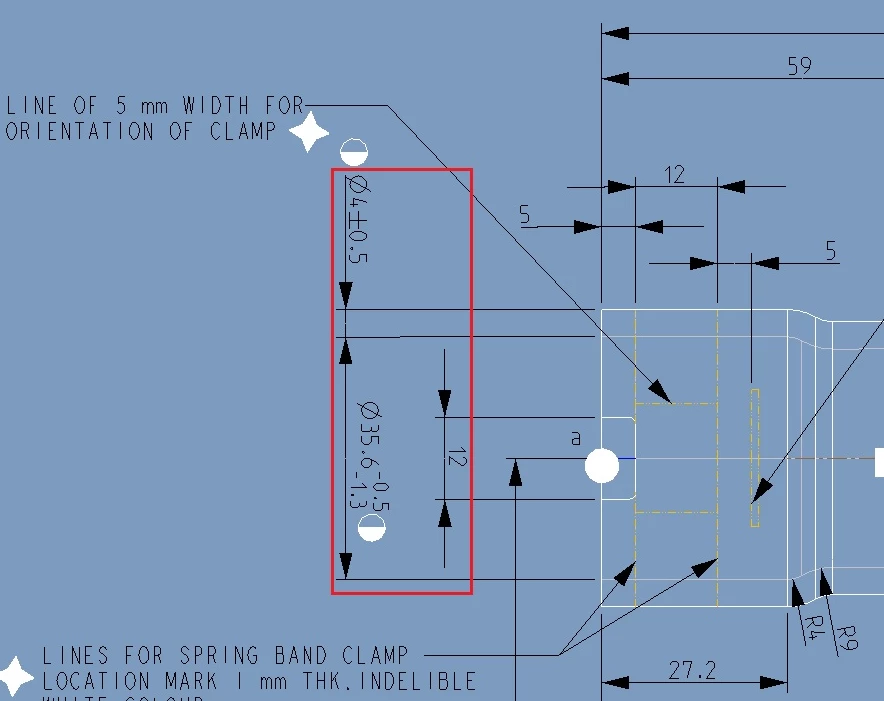

I am concerned about dimension value 4. If I go to property of dimension and set Text Orientation as "Parallel to and above leader", I am not getting like same as what is shown for dimension value 4.

Hope I have cleared my query. Feel free to revert in case of any confusion.

Thanks and Regards

Ketan

KenFarley

21-Topaz II

(1) Don't understand what you mean by "invert".

(2) Red box encloses three dimensions. Which one is of interest?

(3) One dimension says "diameter 4" but it's not a diameter, is it? It's a thickness.

K

Ketan_Lalcheta

Author

2-Explorer

I am concerned about dimension value 4 (Be it a dia or thickness. this drawing i recieved from vendor). If I go to property of dimension and set Text Orientation, I am not able to find any option which shows text and leader same as dimension value 4.

StephenW

23-Emerald III

If I remember right, when a dimension is shown as you have displayed it, horizontal dimensions are always read from the bottom and vertical dimensions from the right (or maybe it's left, memory fades). If a dimension is at an angle, then the drawing option for dimension orientation takes effect and you get parallel to dimension (if set that way).

I think the problem with your drawing is that the dimension appears vertical but is in fact not exactly vertical. That makes Creo think it needs to make the dimension parallel and it decides the orientation.

I don't know how to make the dimension appear to be viewed from the other direction. Maybe you can verify the dimension is exactly vertical. I believe it is not vertical because there is a slight jog in the dimension line.
