how to prevent thread holes diams to be shown in a drawing

  • August 18, 2014
  • 1 reply
  • 1758 views

Hello,



I have a question regarding threaded holes.

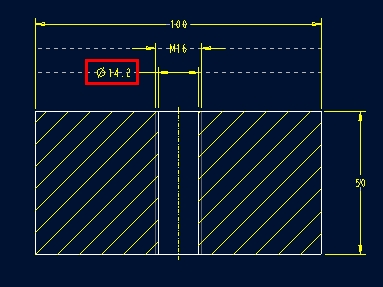

Is there some option (in .dtl) to set-up the hole diameters not to be shown in drawing by default (in this case 14,2)?




Thnx



T.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

In that case, no. I get a lot of useless dimensions. Angle dimensions seem to be prolific in my parts. How often do you need a 360 degree or 0 degree dimension 🙂

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
August 18, 2014

You must be running an older version. In Creo, you can choose what to show. in your case, you either hide it (show/hide - WF) or erase/delete - new dialog.

T
TomášHlavinka1-VisitorAuthor
1-Visitor
August 19, 2014

I am running on Creo Parametric M030.

I thing i was not clear with my explanation - I know the show/hide option can be used to hide the dim., but since that dim is usually not shown in drawings i would like to ask whether there is some possibility not to show it by default.

It is just quite annoying if there is lot of threaded holes in the drawing and all those useless diams have to be hidden.

T
TomD.inPDX17-PeridotAnswer
17-Peridot
August 19, 2014

In that case, no. I get a lot of useless dimensions. Angle dimensions seem to be prolific in my parts. How often do you need a 360 degree or 0 degree dimension 🙂
