Question

how to set decimal places 2 for 3d and 1 for 2d in creo

  • May 2, 2023
  • 2 replies
  • 2032 views

how to set decimal places 2 for 3d and 1 for 2d in creo











2 replies

Chris3
Chris321-Topaz I
21-Topaz I
May 2, 2023

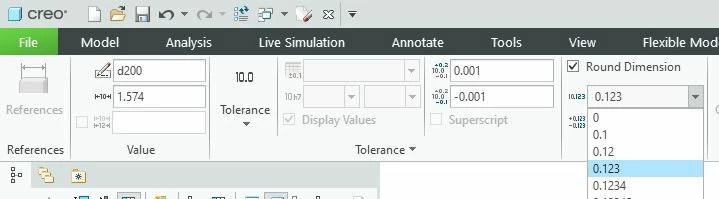

If it is a driven dimension (meaning it comes from the modeling) then you simply double click the geometry that contains the dimension, select the dimension and then change the decimal places as shown below.

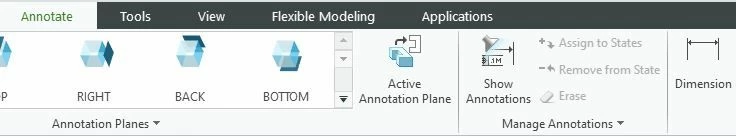

If you use the show model annotations button then you can make this same dimension (with the same number of decimal places) show up on the drawing. If you want a different number of decimal places to show in the drawing then you need to create a created dimension. You can do this either in the model or in the drawing. This will have its own tolerance control that can be set independent of the driving model dimension.

Model:


Drawing:


S
shaik.a1-VisitorAuthor
1-Visitor
May 2, 2023

HI THANKS FOR REPLY

You didn’t get what I mean

I need to set decimal places 2 for 3d modeling

and 1 for 2d drawings at the same time.

Best Regards,
Abdallah Shaik
CAD Supervisor



Alessa For Refrigeration & Air Conditioning Co.
P.O.Box 20409 Riyadh 11455 Kingdom of Saudi Arabia
T: +966 11 4093734 E: 5277 M: +966 556562106
F: +966 11 4085575
E: ASHAIK@alessa.com.sa W: www.alessa.com.sa

upload_-aW1hZ2UwMDIucG5n-4709568678275068446..pngupload_-aW1hZ2UwMDMucG5n-8254839407781253706..pngupload_-aW1hZ2UwMDQucG5n-8276797476417145181..pngupload_-aW1hZ2UwMDUucG5n-5146846544110546480..pngupload_-aW1hZ2UwMDYucG5n-1180181849182821164..pngupload_-aW1hZ2UwMDcucG5n-6053985139361441246..png

Chris3
Chris321-Topaz I
21-Topaz I
May 2, 2023

You can not have a shown dimension that has 2 decimal places in the model and then the same shown dimension have 1 decimal place in the drawing. The software doesn't allow it.



Maybe I am reading your question wrong if so then you need to provide more clarity. Otherwise as I suggested originally, the only other way to do this is to make another dimension or parameter which you can then use on the drawing (with a different tolerance).

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
May 2, 2023

Use CREATED dims at the drawing level, then you can pick whatever number decimal places you want.  The created dim on the dwg will not drive the model, but oh well.



EDIT:  Sorry, Chris beat me to it, didn't see his post until AFTER I posted.
