How to show welding symbols in drawings

  • October 28, 2013
  • 1 reply
  • 9980 views

Hello All

Can anybody suggest me , how to show the Welding symbols in

detail drawings

Regards

Vijay

+91 9845809483

1 reply

D
DanMcCaherty1-Visitor
1-Visitor
November 4, 2013

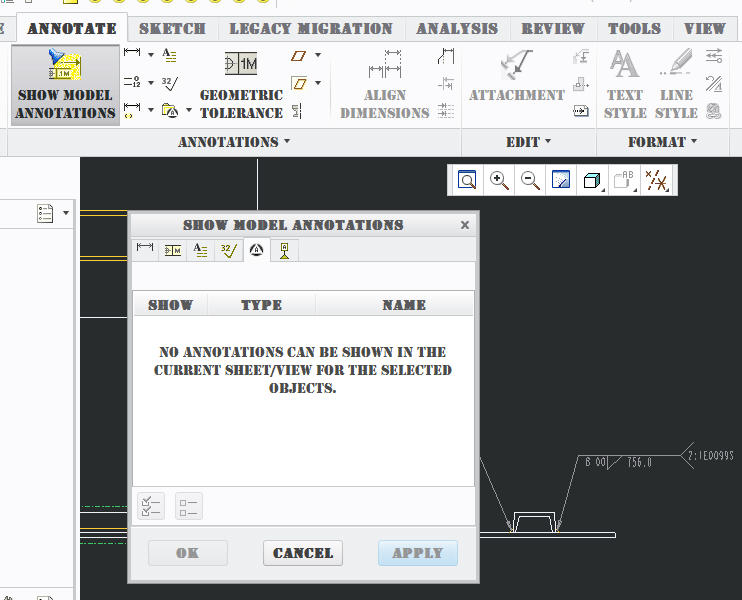

Vijay, which version of Pro/E (or Creo) are you using? If using Creo2, select the drawing view in which you want the symbols to appear, select the ANNOTATE tab, choose SHOW MODEL ANNOTATIONS, then pick the SHOW MODEL SYMBOLS tab (second tab from the right, shown below) ...show_symbols_creo2.jpg (

V
vkumar-21-VisitorAuthor
1-Visitor
November 16, 2013

Hi Mr DAN MCCAHERTY

Thanks for the Info.

I am using creo 2.0 Version

Regards

Vijay
