I need to measure distance between two axis but get results in X,Y,Z, coordinates.

  • March 30, 2016
  • 1 reply
  • 5084 views

I need to measure distance between two axis but get results in X,Y,Z, coordinates. I saw that this was doable in Creo parametric 2.0 but can't find it in Creo Parametric 3.0, any thoughts?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by dgschaefer

It's in the center of the measure dialog.


1 reply

D
dgschaefer21-Topaz II
21-Topaz II
March 30, 2016

When I use either the distance or summary measurement tools, I get a distance between any two axes.  The summary tool also gives me the angle.

Are you specifying a coordinate system in the projection box?  That's the only way I get the X, Y & Z.

B
bcooper1-VisitorAuthor
1-Visitor
March 30, 2016

I don't see that option.

D
dgschaefer21-Topaz IIAnswer
21-Topaz II
March 30, 2016

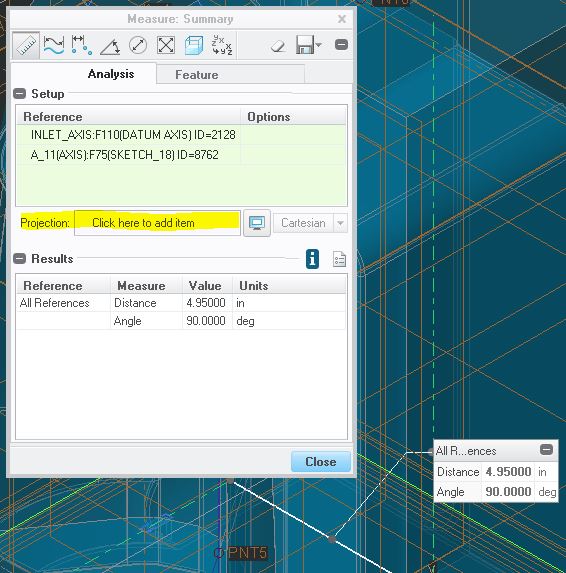

It's in the center of the measure dialog.
