Question

IGES output

  • February 2, 2012
  • 7 replies
  • 3172 views

Is it possible to publis Pro/E objects in IGES format by setting up a CAD worker ? The output should be IGES and not pvz or HPGL.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

7 replies

P
ptc-466741-Visitor
1-Visitor
February 2, 2012
Yes, you can set this in the recipe file

Dave



R
rnatrajan1-VisitorAuthor
1-Visitor
February 2, 2012

HI Dave,


are you refering to the #Advanced > # Misclenious > Drawing Options int he recipie file ?

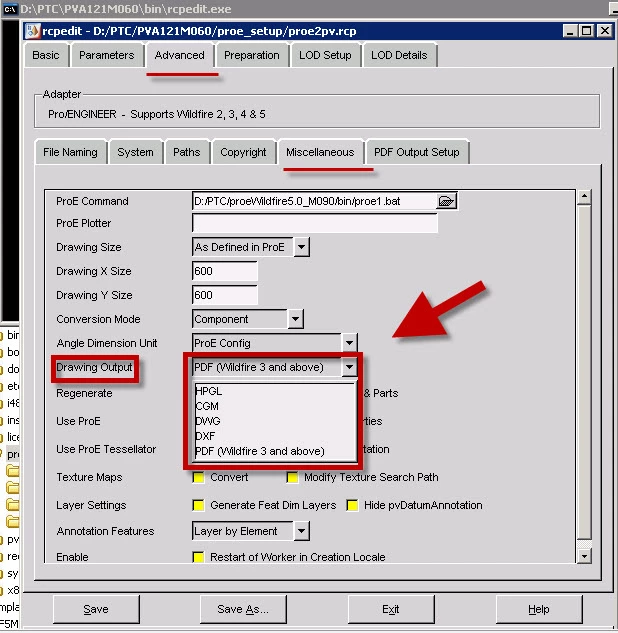

Please check the attached screen-print. it dosent have IGES listed.Moreover the requirement is to have the app Pro/E objects .PRT, >ASM to be published in IGES format.





Any quick way to accomplish this ?


Thanks,


Rakesh

In Reply to Dave McClinton:


Yes, you can set this in the recipe file

Dave



P
ptc-466741-Visitor
1-Visitor
February 2, 2012
Rakesh

you need to use the iges2pv_config.exe

Using Windows Explorer, browse to the
<installation_directory>\bin directory in which you installed
the IGES Adapter. Double-click iges2pv_config.

Dave



----------
V
v_mhala1-Visitor
1-Visitor
February 2, 2012
I believe iges2pv is for converting iges files to productview format. My
requirement is. Convert Pro/E data to IGES.

Please correct me if iam wrong.

L
lhemminger10-Marble
10-Marble
February 2, 2012
You can Export to IGES from ProductView. It uses the underlying full CAD data set to produce that IGES file, not the lightweight PV file.

Lynne
[cid:image002.jpg@01CCE1BA.75302D40]
M3 Project Manager
408-962-7251 (Desk)
408-368-2386 (Work Cell)
[cid:image003.jpg@01CCE1BA.75302D40]

S
Sriram_Rammohan1-Visitor
1-Visitor
March 12, 2012

Hi Vaibhav ,



We can achieve your functionality by using "Pro-E dBatch".It requires high end customisation skills if you want to integrate it to your Windchill.If not you can execute it via UI console of the dBatch.



Sriram

V
v_mhala1-Visitor
1-Visitor
March 13, 2012

Thanks Sriram, but i was looking for a simpler method... a smaller customization may be..


Thanks,



Vaibhav

In Reply to Sriram Rammohan:



Hi Vaibhav ,



We can achieve your functionality by using "Pro-E dBatch".It requires high end customisation skills if you want to integrate it to your Windchill.If not you can execute it via UI console of the dBatch.



Sriram
