Question

Import data missing but shows up when redefined

  • September 23, 2014
  • 2 replies
  • 1941 views

Hello all,

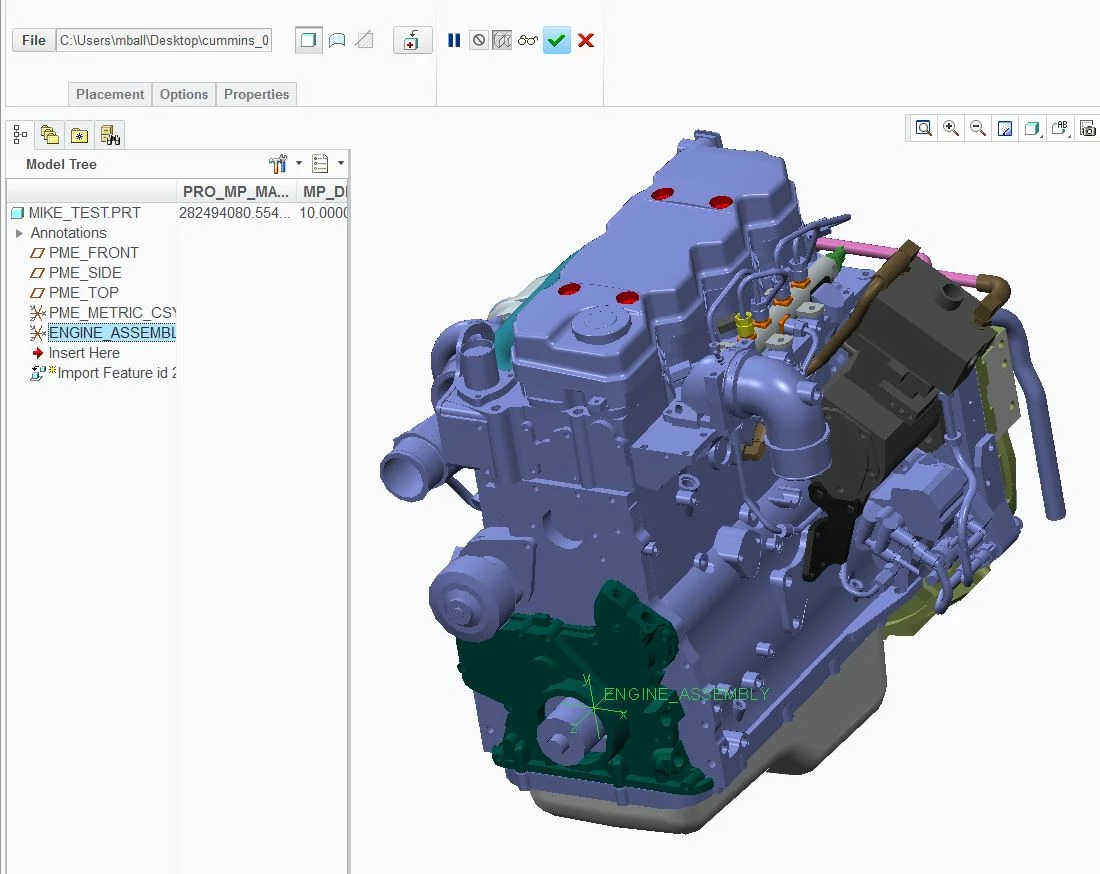

I have imported an .iges file (engine assembly) that looses much of the geometry when opend. However, when I "Edit Definition" of the import feature all of the geometry becomes visable for manipulation in the IDD... Any ideas how/why this is happening? Obviously I need to get all of the data visable.

Thanks

Mike


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

T
TomU23-Emerald IV
23-Emerald IV
September 23, 2014

Have to checked to make sure no layers are set to hidden?

D
dschenken1-Visitor
1-Visitor
September 23, 2014

One likely sequence:

A number of the components are not solidifying, so they stay surfaces/quilts +

config option to place surfaces/quilts on layer +

surfaces layer is hidden.

Also - the mass seems a tad high.

P
ptc-53728971-VisitorAuthor
1-Visitor
September 23, 2014

Thanks for the quick response, and sorry about my the spelling mistakes in the original post.

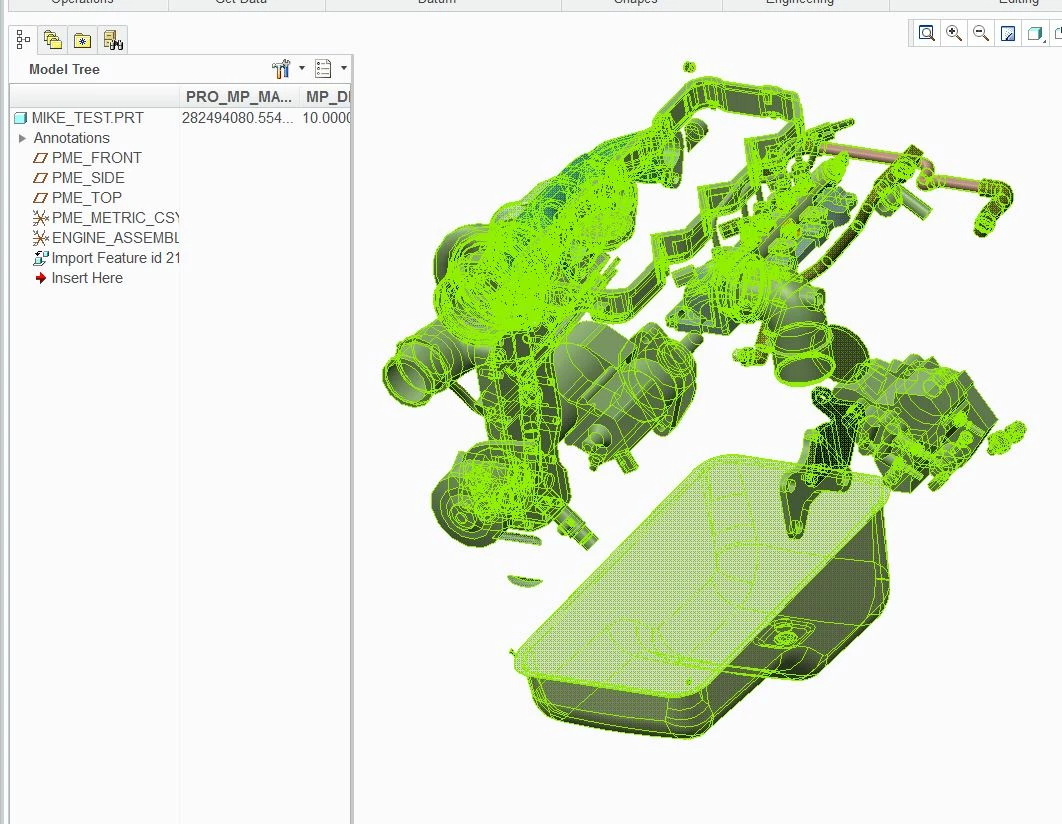

Back to the model. It's not a layer issue. I am thinking all of the purple geometry (when in IDD) are quilts. I guess that I need to solidify those objects somehow. The weird thing is the engine block was a solid when the iges file was created.

our default density is set high in our start part to immediately identify incorrect material properties.

Thanks

Mike

D
dschenken1-Visitor
1-Visitor
September 23, 2014

There's a spell-check button available during post editting, though almost no one seems to use it.
