Inserting an image in sketch

  • May 22, 2012
  • 1 reply
  • 37504 views

Is it possible to insert an image (such as a JPG files) in a part sketch?



I use WF5.



Thank you


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MikeMinsterkett

I think it was an "enterprise" license when I had it.

If you want to import the graphics on a plane you must first create an outline. You do this by creating a sketch on the plane. Then fill the oultine with a surface. Then add your graphics via texture. Then you can create a sketch over the top of that using sketcher. The only reason I do this is to create a more realistic look since I have curved & flat surfaces. My graphics wont lay or look right. If you are hving problems with your graphic you can send one & I can make sure it will work.

1 reply

M
MikeMinsterkett1-Visitor
1-Visitor
May 22, 2012

You can create a sketch in 3d then fill it, then add texture by adding a jpeg to the texture. You will have to create a new appearance then add your texture to it. If you are not familiar with this then I can give you more detailed instructions. Just let me know.

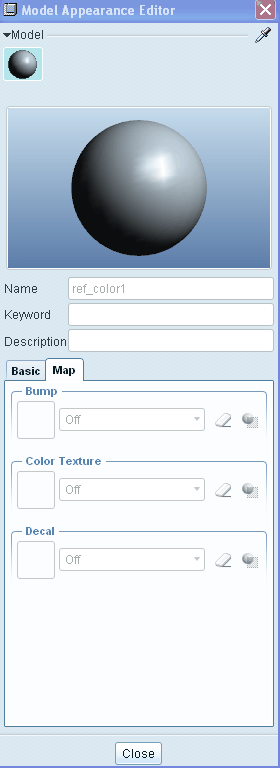

ScreenHunter_05 May. 22 15.17.gif

P
PierrePatenaude1-VisitorAuthor
1-Visitor
May 22, 2012

Mike,

Thank you very much for your answer.

Yes, I am familiar with this process. But I don't want the image to be on a part face, but on a plane. My goal is to use the image (JPG file) to "trace" a sketch.

Any idea?

Regards,

K
KrisR1-Visitor
1-Visitor
May 22, 2012

I do not see a way to do this!

Even ACAD has this functionality....you could sketch in ACAD (after inserting your picture) then save the sketch as a DXF and import it into a sketch in Pro/Creo.

That's the only option I can see....unless you can somehow turn that vector image into a raster image and save it as an Adobe Illustrator file.
