Is it possible to create a flat pattern of a helical part in a sheet metal module of Creo Parametric?

Forum|Forum|14 years ago
May 24, 2012
4 replies
3189 views

Hello, everyone!

Thank you in advance.

Best regards, Vladimir.

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1_helical_sweep-prt-1.zip

General

Best answer by KrisR

Have you tried converting this part to sheetmetal, then creating a flat pattern to see?

If you don't want to do it on the original, save a copy as a different name, then attempt it.

K

KrisR

Answer

1-Visitor

Have you tried converting this part to sheetmetal, then creating a flat pattern to see?

If you don't want to do it on the original, save a copy as a different name, then attempt it.

B

BrianMartin

13-Aquamarine

Hi Vladimir...

This is definitely possible. There's a thread on here from about 4 months back where we did something very similar. I'll look for the thread and see if I can post a link.

Thanks!

-Brian

V

Vladimir_G

Author

1-Visitor

Hello, Kris, Brian.

Thank you very much for your help!

At last I managed to do it.

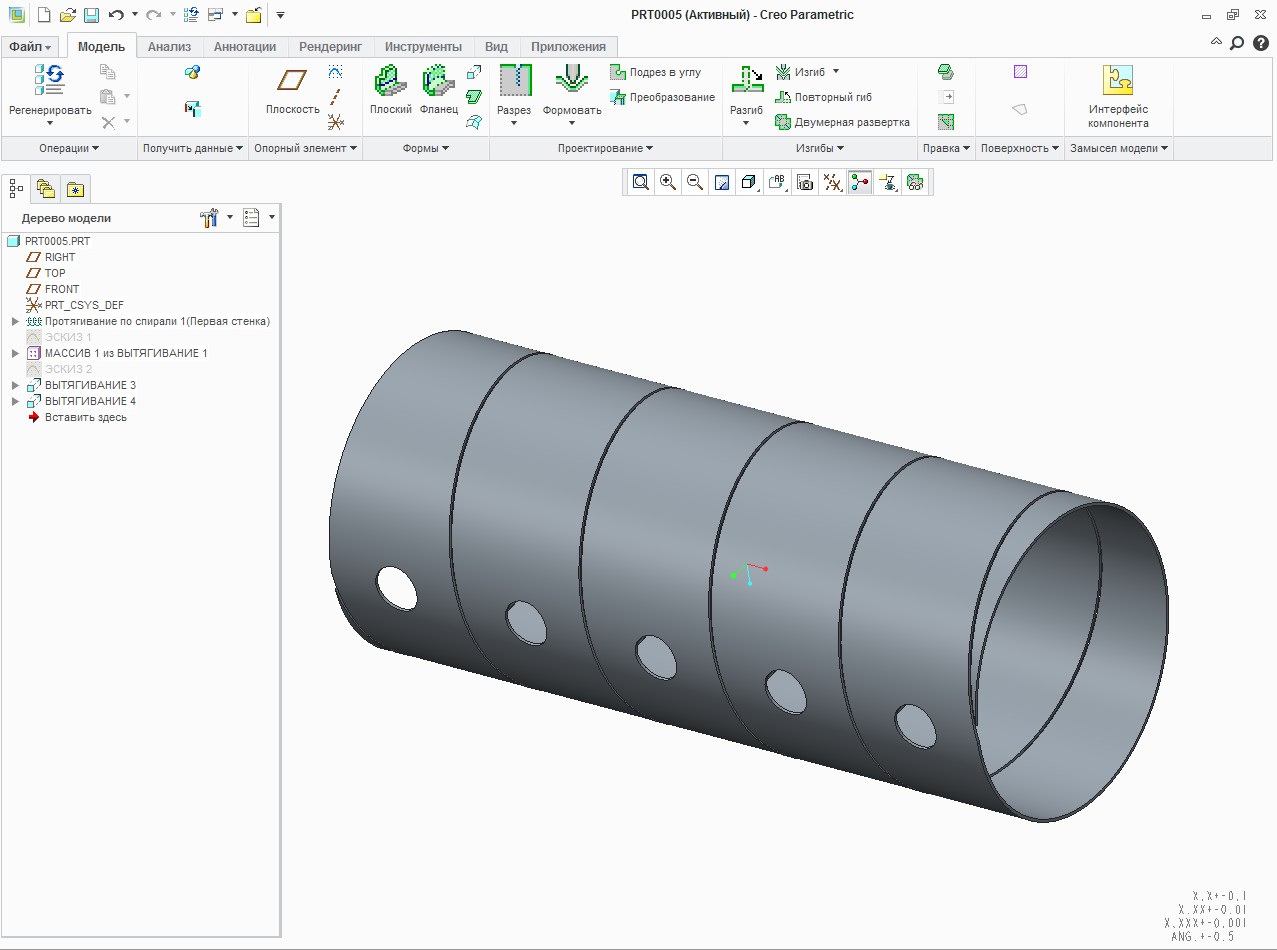

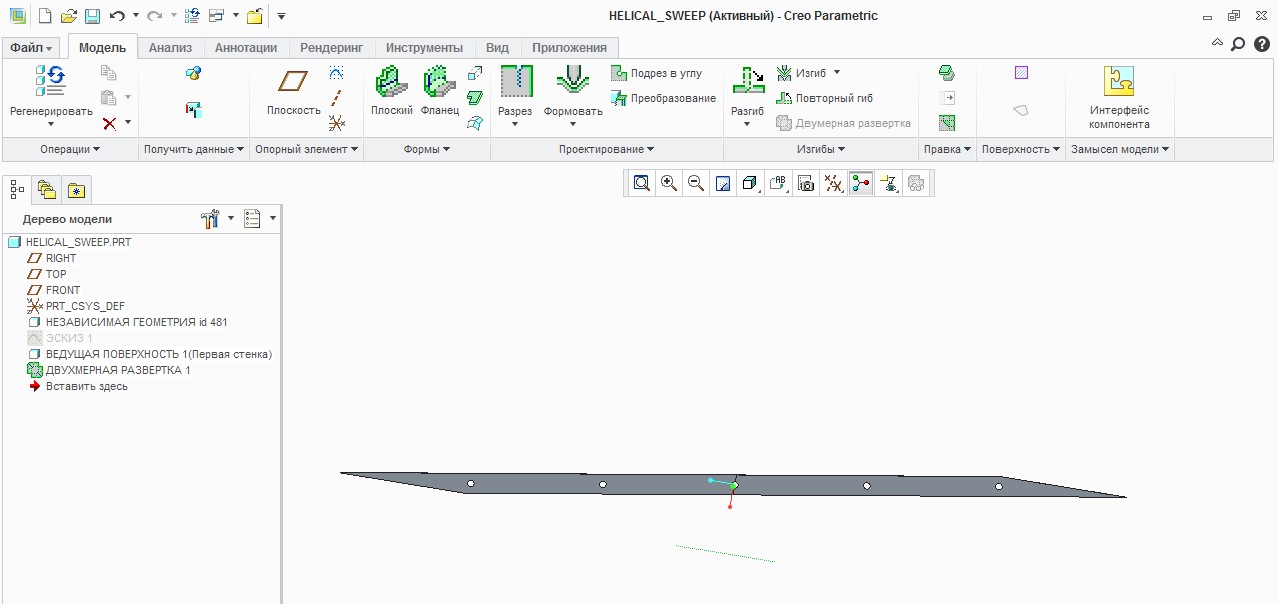

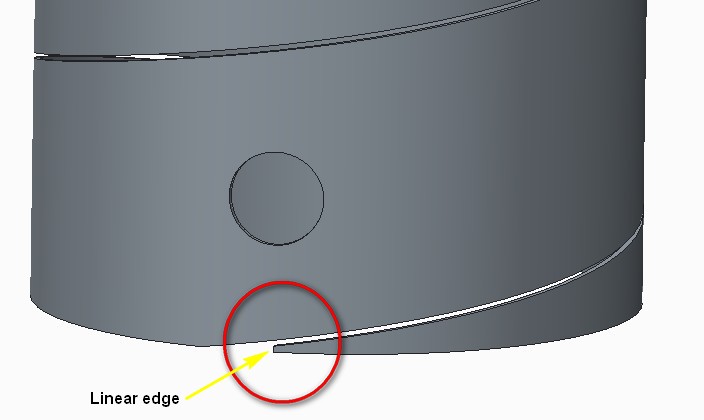

Kris, you were right. I made a small change in the model so to get a linear edge in it, then I converted this model from a solid part to a sheet metal part (that is an interesting fact, because I initially made this part in a sheet metal module). When I were creating a flat pattern I chose this linear edge to fix it. The result is perfect. That is exactly what I want.

Kind regards, Vladimir.
