Is it Possible? Variable section sweep with more than 2 sections and on a 3d datum curve

  • September 18, 2018
  • 5 replies
  • 2786 views

Is it Possible? Variable section sweep with more than 2 sections and on a 3d datum curve?

What I am trying to accomplish here is a multiple bend flared tube for a swedge fitting. I'm only able to sweep 2 sections on my 3d datum curve, the start and the end. I can sweep multiple sections on a 2d plane but not a 3d datum curve. Thoughts? Is this possible?

5 replies

D
DaveMartin16-Pearl
16-Pearl
October 17, 2018

I'm thinking you want to use Swept Blend, not a Variable Section Sweep.

kdirth
kdirth21-Topaz I
21-Topaz I
October 18, 2018

I believe sections can only be added at end points. If you wish to build off one sweep, you could copy it in portions to get the additional end points.

There is always more to learn.
D
DaveMartin16-Pearl
16-Pearl
October 18, 2018

Which feature allows sections only at end points?

kdirth
kdirth21-Topaz I
21-Topaz I
October 24, 2018

Learn something new every day.  Swept blend can have sections placed at datum points on the trajectory curve.

There is always more to learn.
Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
October 29, 2018

Ok, so, I know you were wanting multiple sections along A trajectory.  Simple:  Swept Blend feature.

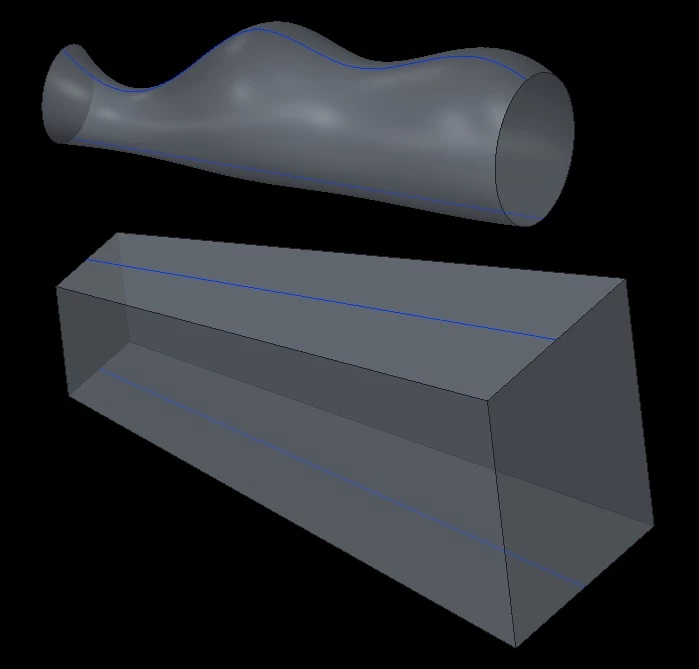

BUT....in my twisted mind, I though, hmmm, can I make a Sweep (what I still call a VSS - Variable Section Sweep) with multiple sections in the feature....and you CAN.  I'm using one feature, 4 trajectories, but it appears you can have multiple sections.



So there!  🙂
