Hi,

I have a problem with something I supposed is a 1-st grade problem. I'm trying to do a skeleton-driven PVC window. For that I made an assemby with a skeleton (a square) and I planned to add to eache of the 4 sides of the skeleton an assembly containing flexible frame, flexible gaskets, corners.....BUT I can't do the corner joining (mittered). When I insert a cut into the assemby (one side) it cuts only the frame profile and the middle gasket but it doesn't cut the gasket that sits on the frame. I olso tried to do the cuts on each flexible part but in the assembly (one side of the skeleton) it says that it does not intersect the flexible-part anymore.

please help me

Serban D

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

S

SerbanDumbrava

Author

1-Visitor

So? Is that hard to do?

D

DavidButz

1-Visitor

Serban,

Sorry, but I don't quite understand what you are trying to do from your description. Also, what do you mean by saying the parts are "flexible".

Do you have a picture of some sort that you could post, so it would be clearer what you are trying to do?

David

S

SerbanDumbrava

Author

1-Visitor

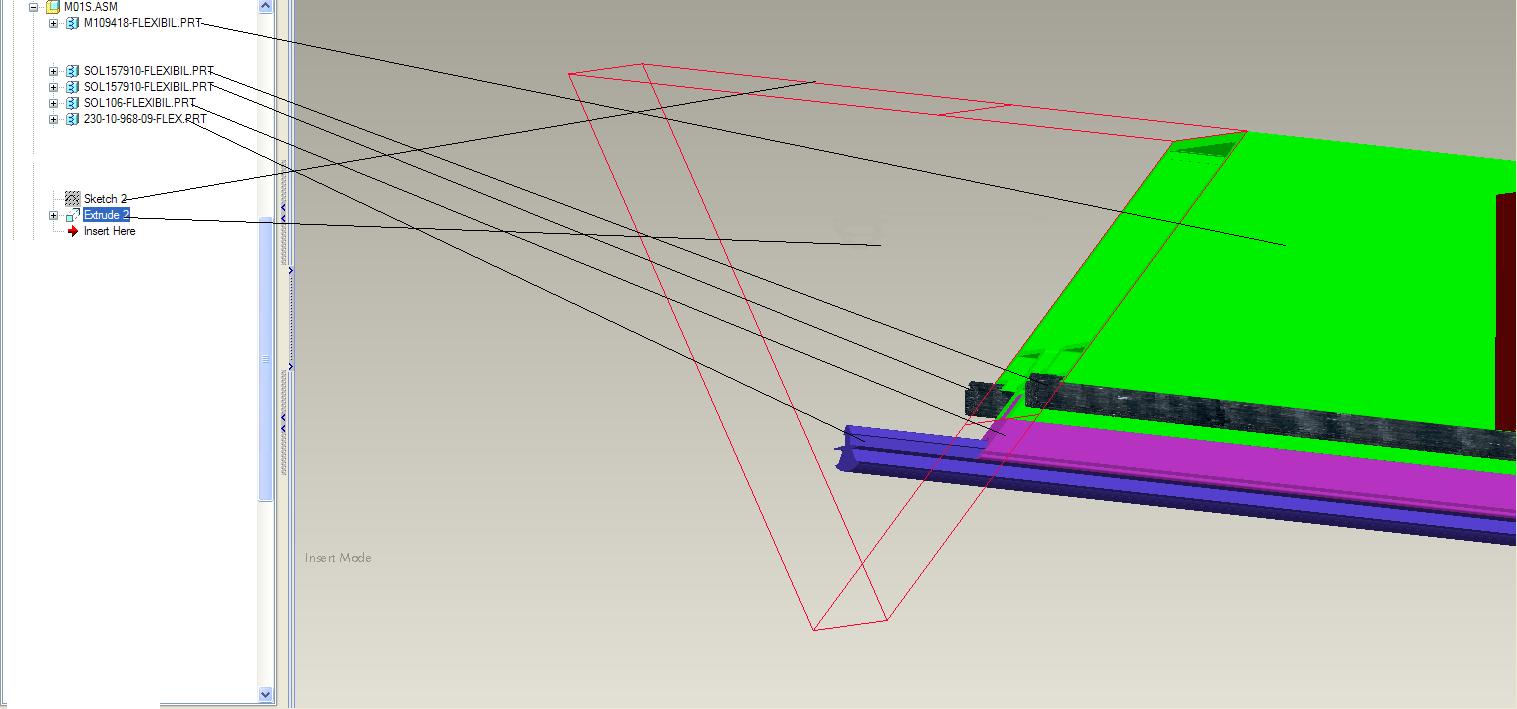

I sitched to another assembly (a mullion) but the problem persists. It cuts through the "m109418", it cuts the "sol106" but it doesn't cut the two "sol157910" and the "230-10-968-09". The depth was set both to 55, the width of the m109418 profile ( on his side is done the sketch), and "through all" on both sides
