Lego blocks in assembly

Forum|Forum|13 years ago
September 7, 2012
16 replies
10990 views

Hi,

I am making lego assemblies models from parts. How can I compute in assembly how many different parts I have (block 3005, 3002, 65500,...) and to compute have many times is used for example block 3005,...

Thanks for help

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

Best answer by SamuelBrantner

hey Jozef,

i would simply create a drawing of the model and create a recursive BOM with your specs.

greets sam

P

ptc-4462191

1-Visitor

Hello !

Hard to find something in Pro/E, maybe someone else will find an easier solution than this one :

You can create a Repeat Region (table) in a drawing (Recursive, No Duplicates) then insert the following parameters : asm.mbr.name & rpt.qty

Then in the table you will get all the references contained in your model with the count for each component.

Just ask if you need some more assistance.

I hope it helps.

SamuelBrantner

Answer

16-Pearl

hey Jozef,

i would simply create a drawing of the model and create a recursive BOM with your specs.

greets sam

Greetings Sam

J

JozefBucha

Author

1-Visitor

Thanks for solution. I was looking for something just in assembly enviroment, not in drawing.

P

ptc-4462191

1-Visitor

I missed the blocks count... You may save the table as a CSV to get the components sum through a simple relation in Excel.

J

JozefBucha

Author

1-Visitor

Thank you.

I got some numbers like here:

http://www.peeron.com/inv/sets/10134-1

M

MikeFitch

1-Visitor

Info\Bill of Materials

Depending on your settings, it should save a file called (top level).bom.1. Rename the extension to '.txt', open in your text editor, and scroll to the bottom...

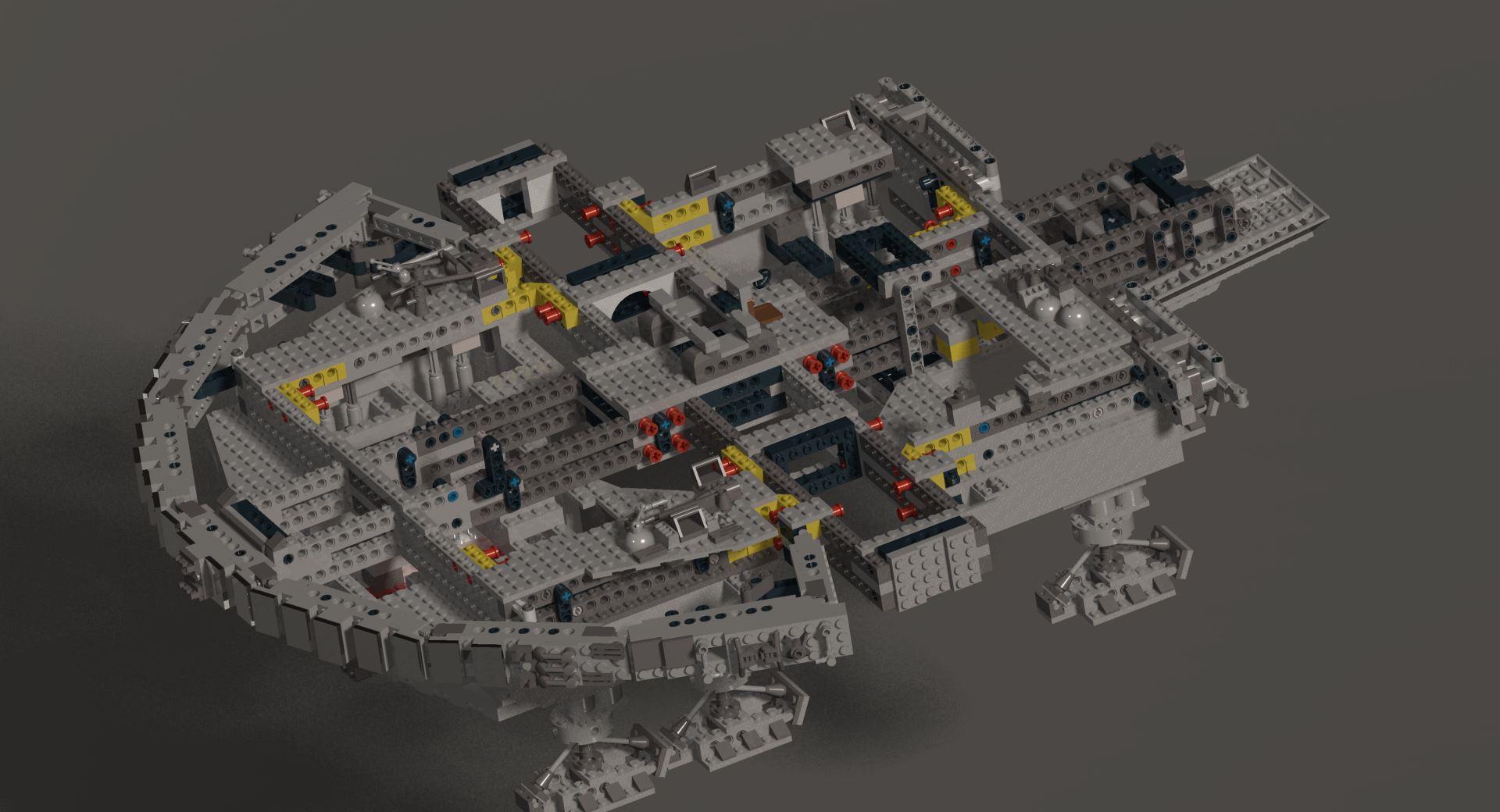

Nice model, by the way!
