Looking to add an indicator on the drawing if the part is modified (maybe using PTC_MODIFIED)

  • March 19, 2015
  • 2 replies
  • 1659 views

I am looking to add some indication on a format that would show a + if the drawing is modified but not checked in. People are creating pdfs of their unchecked-in drawings with the wrong rev and content than is being released. If this + is on the drawing, we could easily tell that the engineer didn't follow procedure.



Does anyone have a good idea how to do that? I am *currently* looking to avoid using relation as a user can mess with the relations.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

D
dnordin16-Pearl
16-Pearl
March 20, 2015

Joseph,

We do this exact thing for the same reasons you posted.

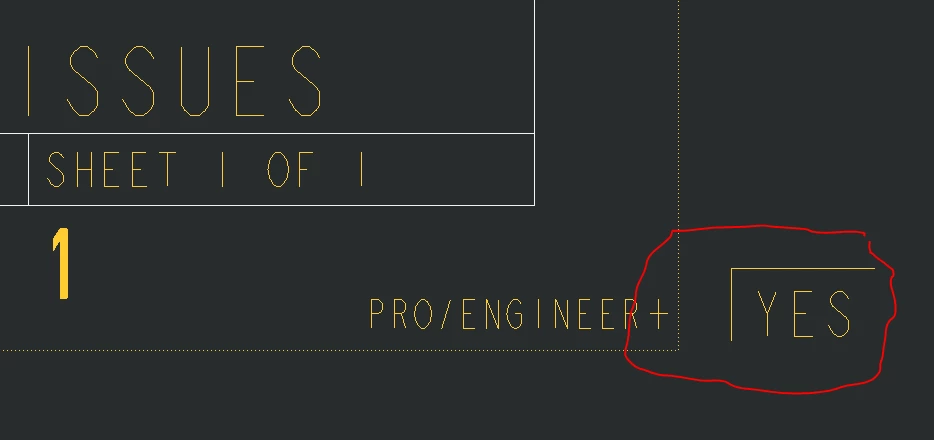

We created a small table outside the right side of the border of the drawing format with the text "+ &PTC_MODIFIED:D" right justified. If the &PTC_MODIFIED:D value is YES, the "+" part of the text is visible inside the border of the format, and will show up when the user creates a print/plot/PDF. "+ YES" vs. "+ NO". See the attached image.


Daniel Nordin
www.baesystems.com

    J
    jwagh18-OpalAuthor
    18-Opal
    March 20, 2015

    Thanks Guys!



    Dan,


    I don't know if you remember me. I used to work at BAE a few years ago. First in Greenlawn then in Wayne. The reason for my inquery was because I remember seeing it but wasn't sure how it was implemented.



    For the +, did you use a relation in a repeat region table?
