How to merge more than two sketch??? so that i can use sweep feature easily.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

J
James621-Visitor
1-Visitor
September 20, 2015

Either make a new sketch feature to which you can project these lines and hide the original sketches aftewards.

Or use chain selection type wth RMB button to toggle selections within the sweep feature.

    H
    hzaveri1-VisitorAuthor
    1-Visitor
    September 20, 2015

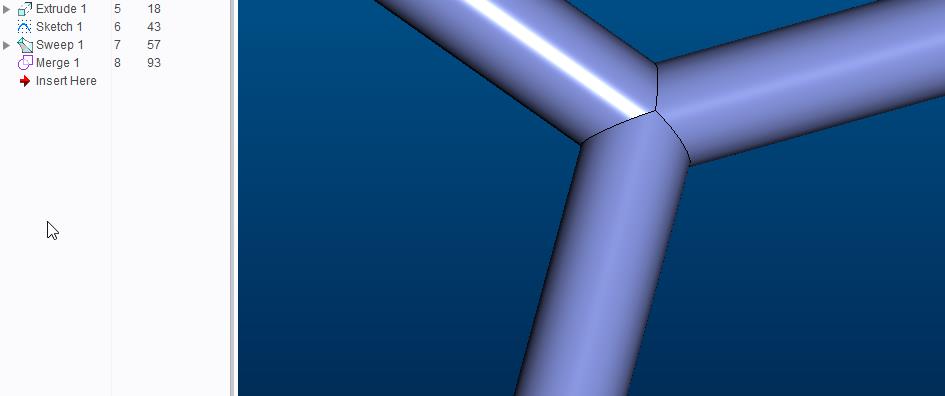

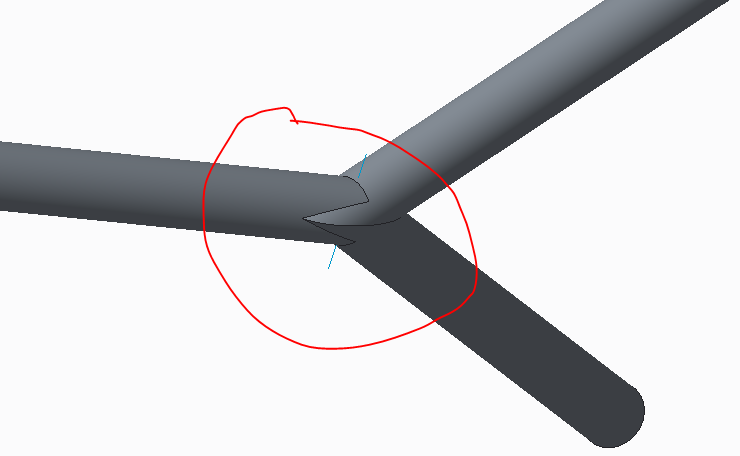

    Hey James622.PNG, thanks for your reply. But when i sweep this type of problem is occurred which i have attached. please see that thanks.

    J
    James621-Visitor
    1-Visitor
    September 20, 2015

    If the sketch has got sharp transitions then the sweep based on the sketch will have sharp transitions too.

    If you are on Creo Parametric 3.0 trying to connect three rods that don't have their axes on the same plane then cut it off before the connection and use freestyle tool to connect it.

    https://www.youtube.com/watch?v=BjtNuv0x99k

    Anyway, what's your end goal?

    V
    vlipovčan1-Visitor
    1-Visitor
    September 22, 2015

    Create shapes in surfaces and use merge. Than u can use thicken -> change to solid.
