Hi, I'm encountering a mirror problem. I tried to mirror the flange(in red color) with respect to "Front Plane" But it is unsuccessful after I select the mirroring edge, is there any particular step I miss to make flange mirroring correctly?

F

Freddy

1-Visitor

Question

Mirror flange error

Forum|Forum|8 years ago
December 25, 2017
1 reply
1420 views

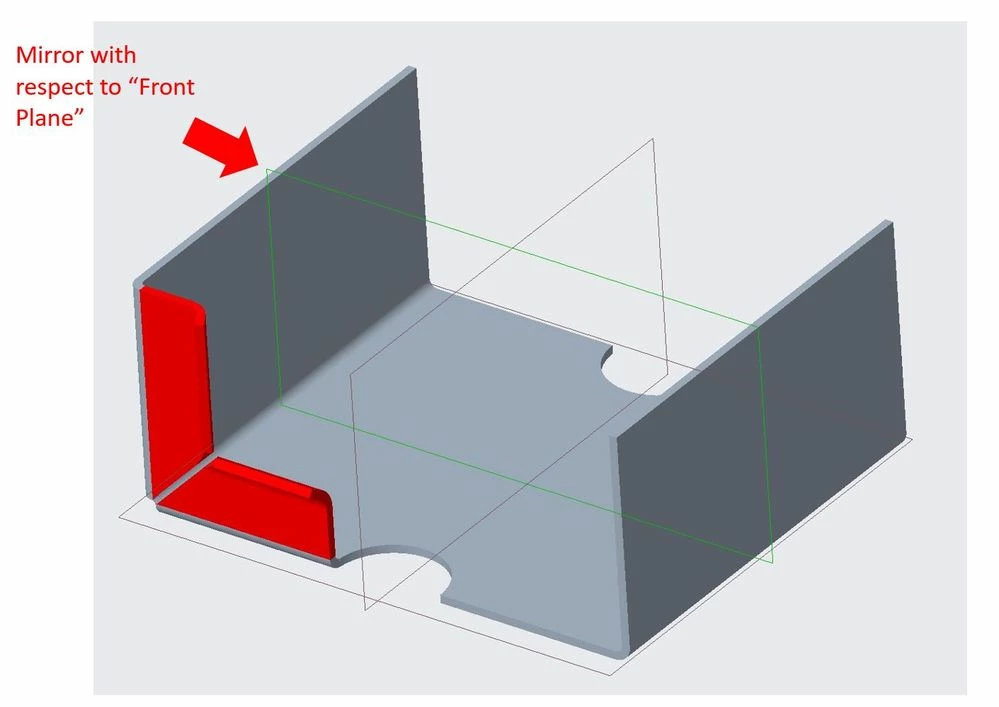

Hi, I'm encountering a mirror problem. I tried to mirror the flange(in red color) with respect to "Front Plane"

Pic 1.JPG

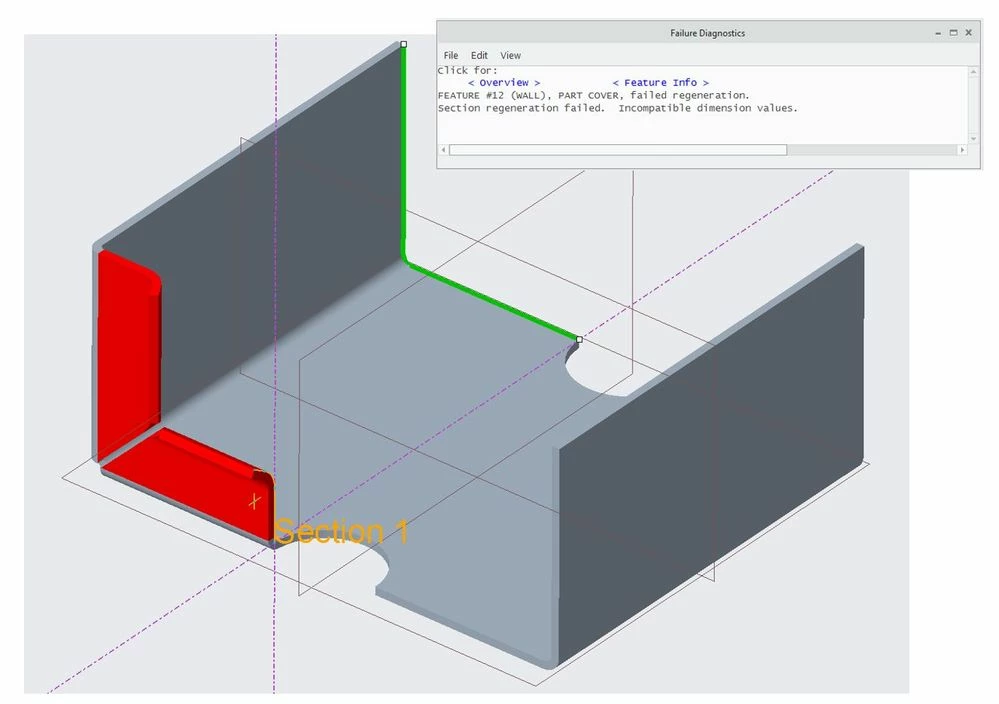

But it is unsuccessful after I select the mirroring edge, is there any particular step I miss to make flange mirroring correctly?

Pic 2.JPG

1_cover-prt.rar

Data Exchange

Mahesh_Sharma

22-Sapphire I

Freddy,

Creo has limitaions on mirror of flange. It will allow mirrong of flange wall created with only one edge, if it is created using adjecent edges (as in your part), it will fail on mirroring.
