Missing parts in generic part that are in instance

Question

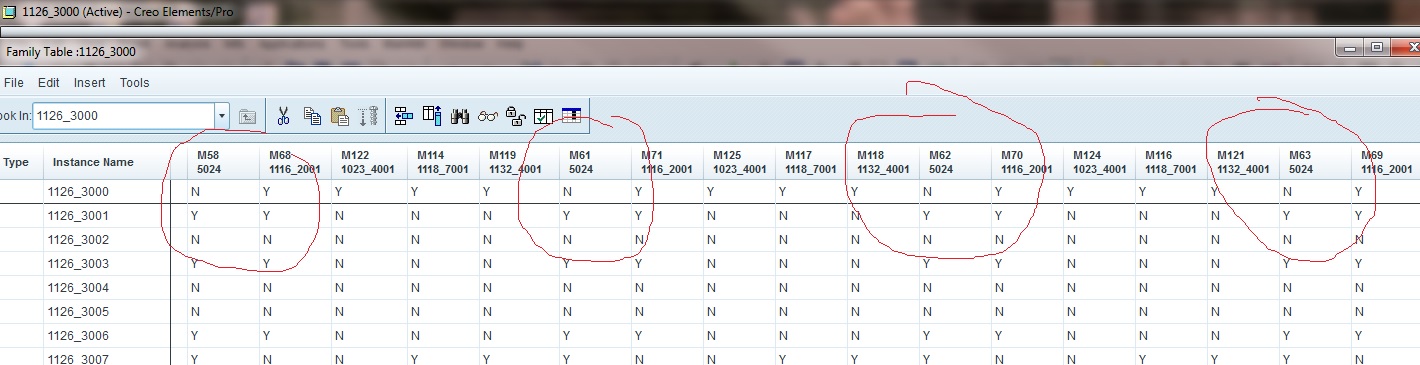

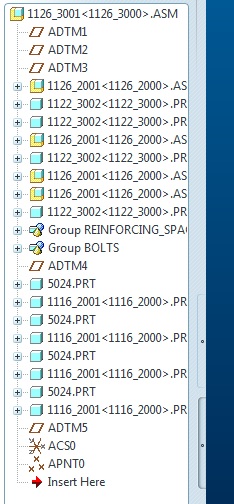

I have a generic part that I cannot find parts that are available in an instance. If you look in the third picture (the model tree of an instance 1126_3001) you see a part, 5024, between ADTM4 and part, 1116_2001. But when looking at the first picture (the model tree of the generic - 1126_3000), the part, 5024, is nowhere to be found. If you look at the second picture (the family table ), you can see where I circle where part 5024 is shown in the table. Typically this would lead to a suppressed item in the model tree of the generic (see the bottom of the first picture - 1112_7001 for something else that is suppressed in the generic model tree). Does anyone have some thoughts as to where these 4 parts (all 5024's) may be hiding? Thanks, Dale

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Dale_Rosema · Accepted Answer

A solution to this problem has been found!!!! ( Can't get enough !!!!!!)

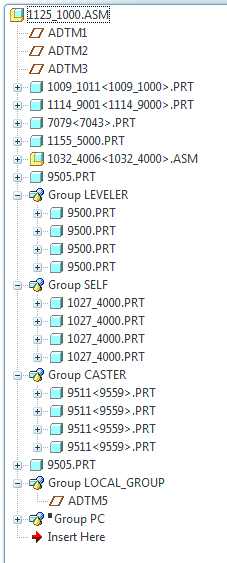

With the components missing from the generic, there was no way to delete them out of the generic. Below shows the tree of the generic.

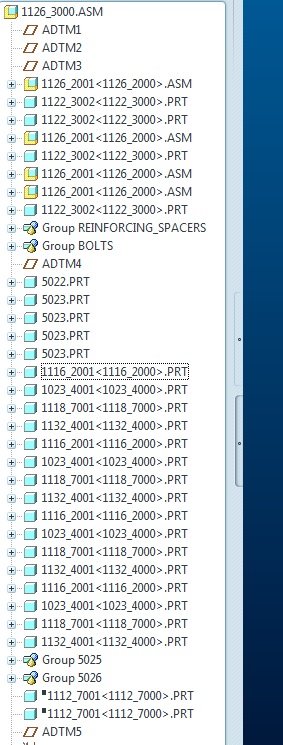

The generic:

If the parts are not showing up in the generic, the family table was opened, and they were added to a specific instance (put a "Y" in the column for the missing parts). Then the specific instance was opened. When this occurred, the parts were missing references in the assembly definitions. This was corrected.

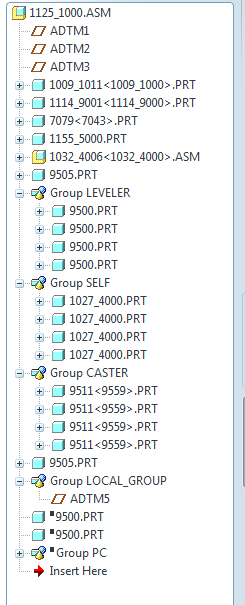

The instance with one reattached and one not finished yet:

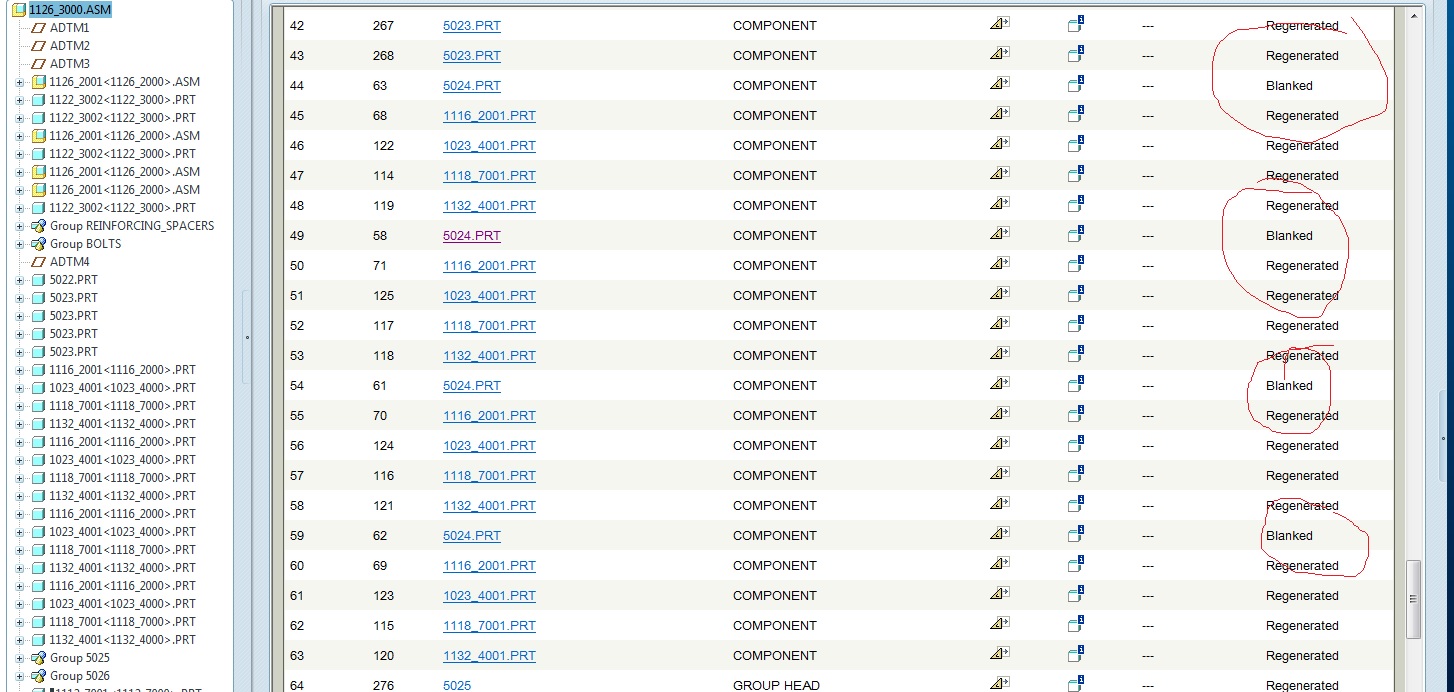

The generic:

Now the parts are showing up and since they were no longer needed they can be deleted out of the generic.

Now this theory needs to be tested on another part that was given to PTC to trouble shoot.

Thanks, Dale

dgschaefer · Answer

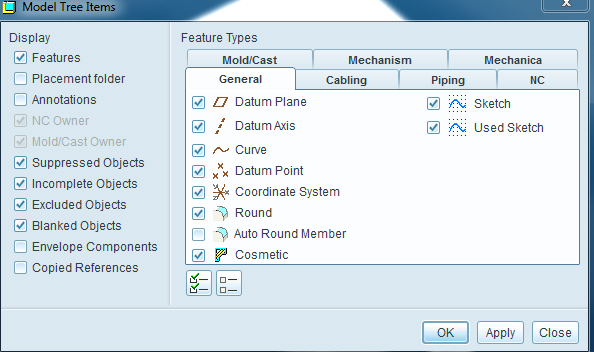

This may be one for tech support.Have you double checked that everything is set to be displayed in your model tree settings?Have you tried setting your model tree columns to show the feature number? I'd expect to see a skipped number where the missing item is.Have you tried searching for the part by part number using the find tool?I've seen strange things like this with family tables, tried to sort them out with tech support only to have them work themselves out somehow and not return. I kept trying things like I suggested and something clicked and it was as if Proe / Creo said, "Oh, look there, sorry about that." and corrected it.
