Model-Based Definition with mirrored parts

  • July 13, 2022
  • 1 reply
  • 3209 views

Hi



We are developing injection moulded plastic parts. Often we use the mirror functionality to create e.g. left and right version. Typically around 10% of the features are different between the parts (through holes vs, hole for PT screws). At the end we issue two datasets, one for each side, but the vast majority is identical.



For geometry/bodies we know how to handle this, but struggle with model-based definition features.



We tried several options, but none is able to mirror such features. Even worse Show Annotations does not show any elements in the mirrored part.



What is the best approach to model-based definition features in mirror parts?



Best answer by Ziegi

@Mfridman

Indeed such a enhancement would be needed. I hope you can push that into Creo soon 🙂

There is already a Creo Parametric Idea: Creating Mirror of a part in Creo 7.0



at all readers: Please vote for it!

1 reply

Mfridman
Mfridman16-Pearl
16-Pearl
July 13, 2022

Hi @Ziegi

Can you please provide more details on the issues that you see for annotations, once you have mirrored the part?

Maybe you can provide a simple part that shows the issue that you are seeing or some images.



Also, I wonder if you have tried to have the annotations be as part of an annotation feature (vs having them as standalone annotations)?

annotation feature, is just like any other feature ,so it will support mirror operations (like geometry supports) and the annotations that it contains will be mirrored too

    Z
    Ziegi12-AmethystAuthor
    12-Amethyst
    July 13, 2022

    Sure

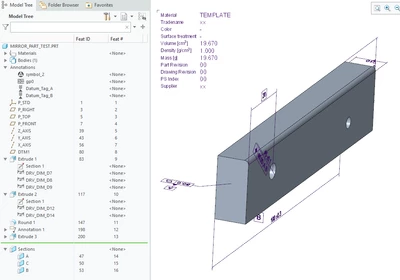

    Mirror_Part_Test is the Master including GD&T elements.




    Part0005.part is the mirrored part (created using Mirror Component in an assembly).

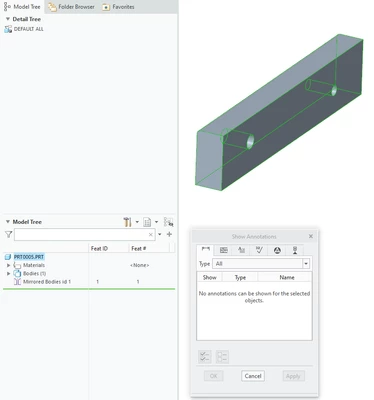

    Note: No annotations can be shown for the selected objects in the dialog window when the part0005.prt or feature Mirrored Bodies id 1 is selected.



    Using annotation features does not change the situation. It doesn't get mirrored. Tested with the position tolerance,



    Creo data is attached (Version 7.0.8.0)







      Mfridman
      Mfridman16-Pearl
      16-Pearl
      July 13, 2022

      Thanks @Ziegi

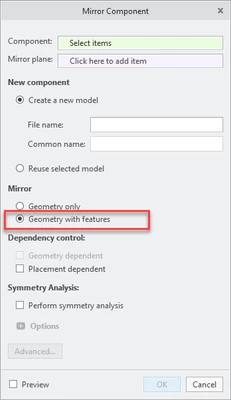

      Can you please try creating the mirrored component with the option "Geometry with features" checked




      If you will choose this option, all of the original annotations will be created on the new mirrored part. you can then choose to assign them to the top assembly or open it in its own window and observe that they are all shown there already

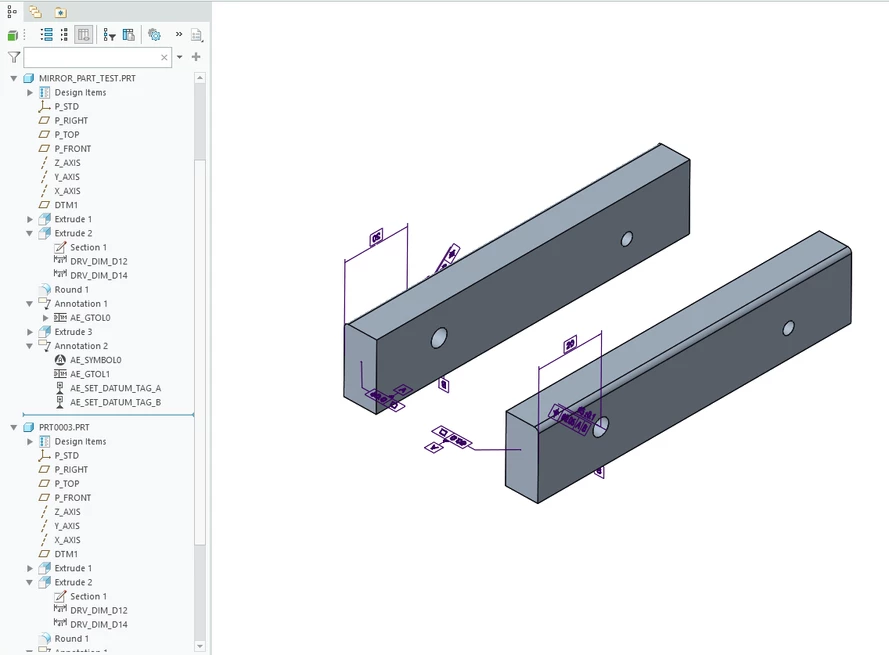

      Here is how it looks from the assembly (I have assigned the same annotations from both of the components to the assembly combination state):




      This allows you to leverage any existing annotations that came from the original model and add a few of your own



      Thanks, Michael
