Model in Instance is missing in Generic

  • January 16, 2013
  • 2 replies
  • 7655 views

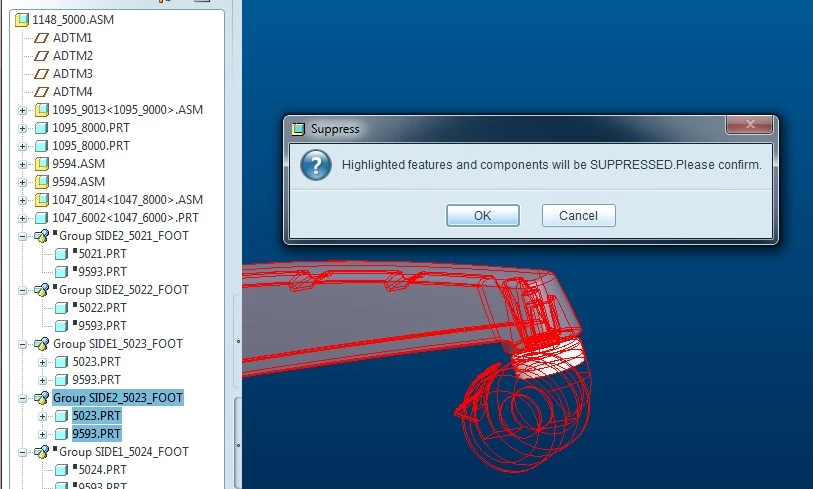

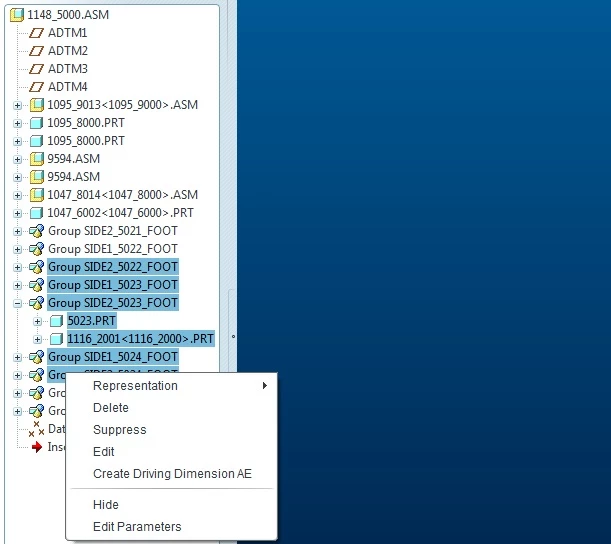

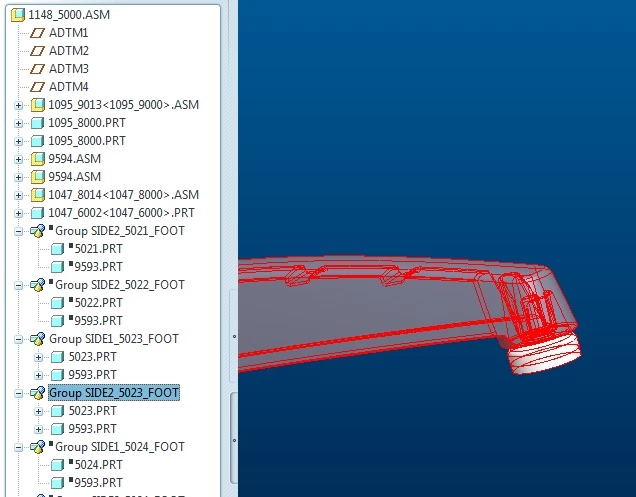

I have an assembly where the instance has a model (Picture 1), but I do not see the model in the Generic (Picture 2). Usually I'll see it but it in a suppressed state. And by the way, if I suppress the Side2_5023_Foot in the Generic assembly, the outline of the part shows up. (Picture 3)

Thanks, Dale


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Dale_Rosema

At this particular time I decided to delete the two groups, SIDE1_5023 & SIDE2_5023, which deleted the missing/hidden parts with them. I then added them back into the assemlby and they are now clearly visible in the tree. Sorry I wasn't able to spend more time on this, but I looked into various settings in the view tab and elsewhere to no avail.

Thanks Martin and Antonius for your help.

I am going to mark this as correct only because I don't have the problem any more not because I was able to resolve this issue.

2 replies

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
January 16, 2013

I guess this isn't the only model with which I have had an issue. This was from October.

http://communities.ptc.com/message/190202#190202

Thanks, Dale

T
TomD.inPDX17-Peridot
17-Peridot
January 16, 2013

oops... got confused in the posts.

I have not used family tables before but I probably should.

If I knew how to do this I could at least figure out of this issue still exists in Creo 2.0.

Could this be a graphics card/driver issue?

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
January 16, 2013

I don't think it is graphics card/driver issue because I have had happen in only a few (maybe two) models. I am thinking something was added at the instance level and didn't get translated to the generic. I was trying to see if it was some sort of rep (i.e. master rep) thing since I have not use this much and am unfamiliar with it. Both of these models predate my being at this job.

M
MartinHanak24-Ruby III
24-Ruby III
January 17, 2013

Dale,

I guess that you assembled the unvisible component directly into the instance. I think that in such case, the component is suppressed in generic by default. Try to open generic. Then open its family table and go through its columns. I think that you will find the column related to unvisible component. I expect that the cell located in this column will contain N value.

Check the family table and let us know.

Martin Hanak

M
MartinHanak24-Ruby III
24-Ruby III
January 17, 2013

To see the component in generic, simply do Resume for it, regenerate the generic and save it.

I suggest you to check family table, again. All instances, which contain * in component's column, will now have the component visible. To hide the component, set N value in component's column.

Martin Hanak

Dale_Rosema
23-Emerald III
Dale_Rosema23-Emerald IIIAuthor
23-Emerald III
January 17, 2013

Martin,

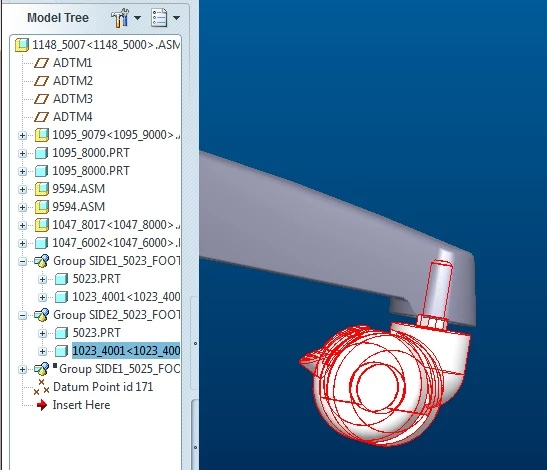

How would I Resume the part? I know that when something is suppressed, to click on it and Resume, but what about when you can't see it in the family tree. If you compare picture #2 and #3 (above) and #4 (included here) the caster part does not show up in the tree. Is there a way to resume from the family table? Usually I cannot edit the top line of the generic in the family table, only the instances.
