Modelling problem - key on shaft

Forum|Forum|8 years ago
March 27, 2018
3 replies
7673 views

Hi!

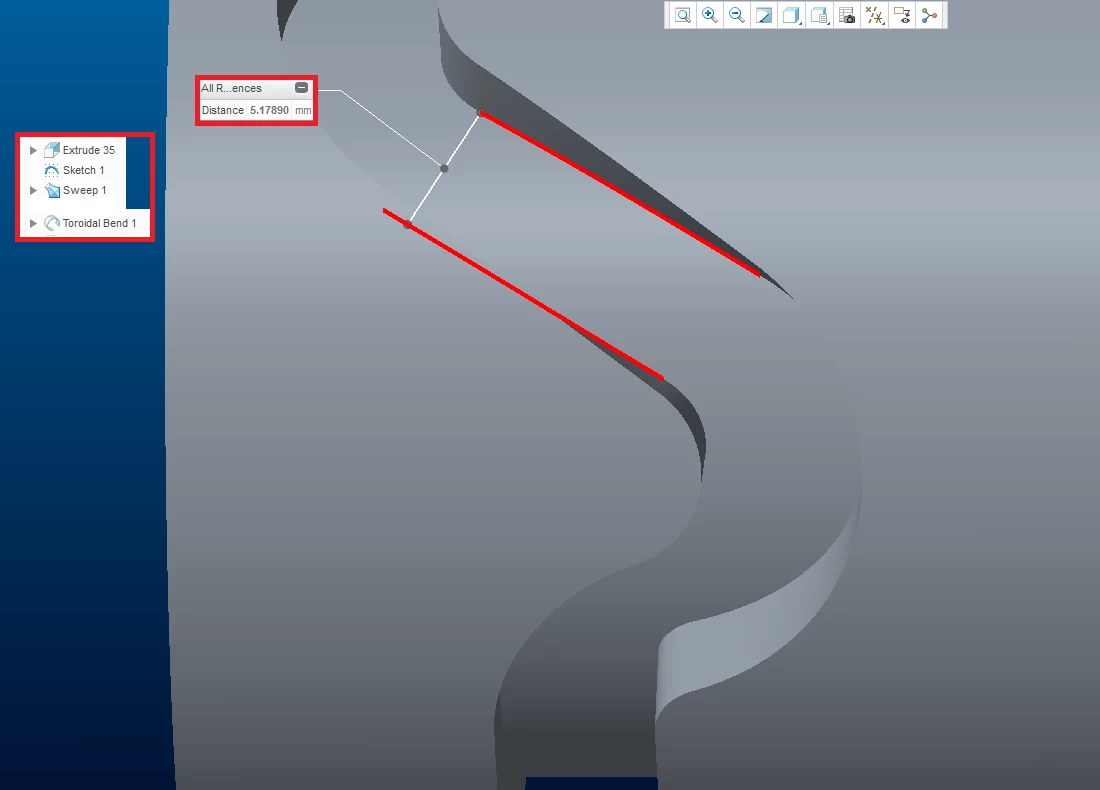

I have a problem with modeling a special key on a shaft. I need to create a key that has constant wide (6 mm) and constant deep (4 mm) everywhere on diameter. (attachment 3)

I tried two methods of modeling:

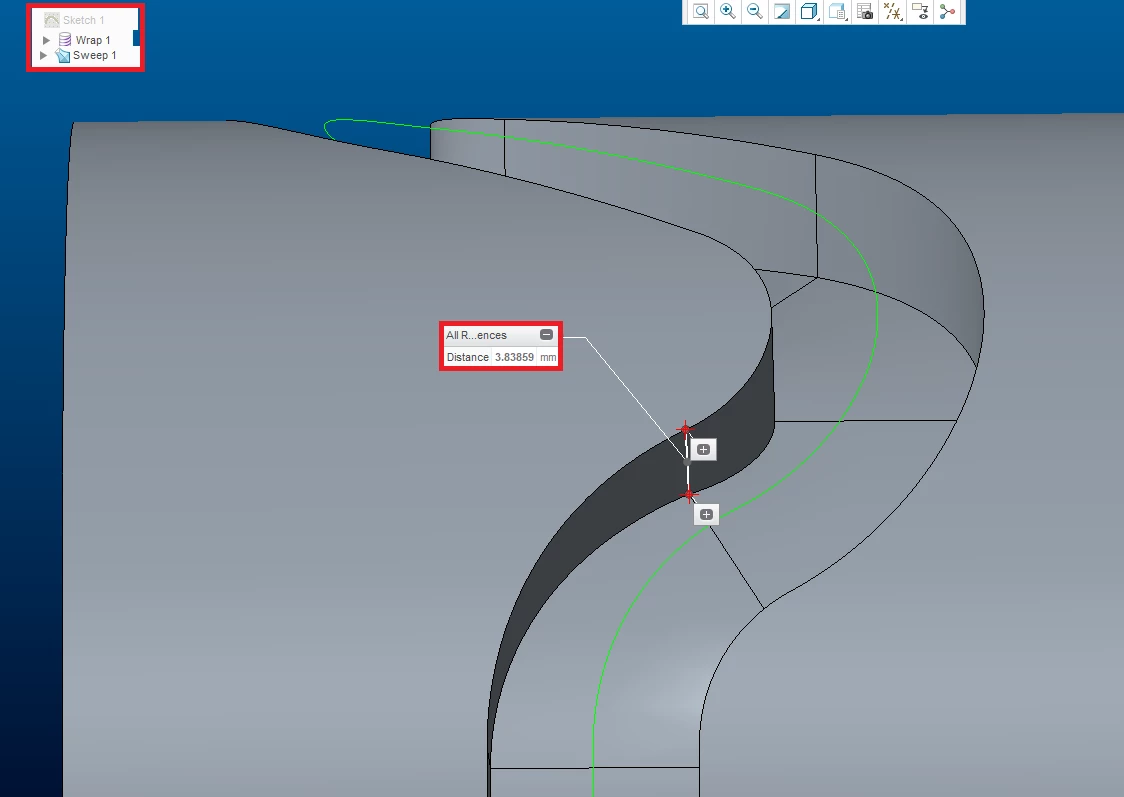

1) method - wide of the key is not constant (attachment 1)

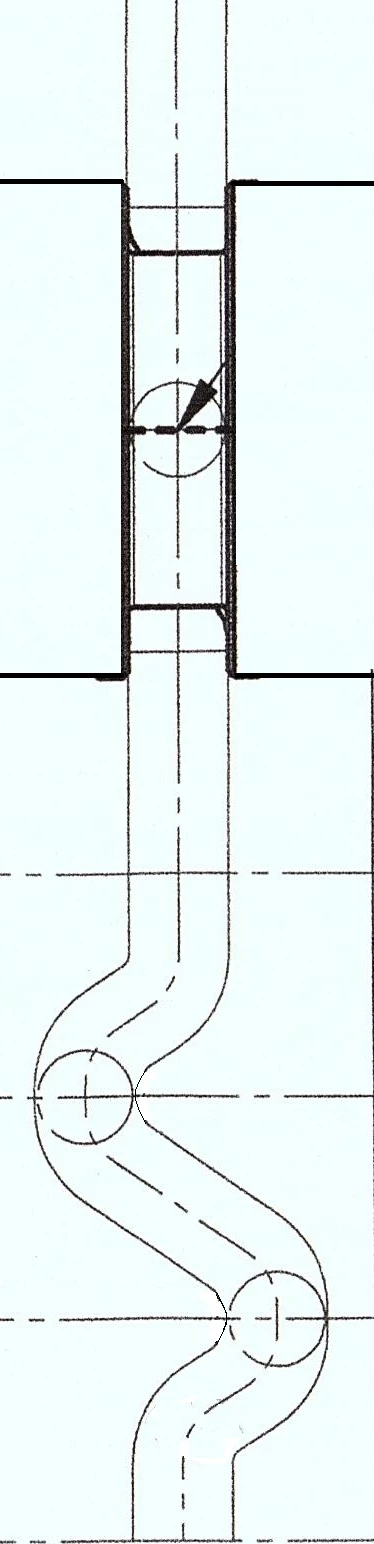

2) method - deep of the key is not constant and radii are not tangent (attachment 2)

I will be grateful if someone help me to find the best way of modeling this key.

Klaksac

General

S

StephenW

23-Emerald III

If I'm not mistaken, that specific application would require you to be able to sweep a 3d solid and that is not current functionality in Creo, although Creo 5 is supposed to have a 3d helical sweep.

There have been other posts about this:

https://community.ptc.com/t5/Creo-Modeling-Questions/Surface-generated-by-toolpath/m-p/47062

https://community.ptc.com/t5/Additional-Creo-Questions/Remove-interference-material-as-a-result-of-mechansim/m-p/71732

K

Kevin

1-Visitor

I've had some success in generating 2d sections for a sweep along a helix in Creo 3. So far I've tried a cylinder and wedge and compared the results of the surfaces generated by sweeping a 2d section and creating a boundary blend to the surfaces generated by patterning 3D cut along a helix.
