Multiple convection coefficients?

  • April 2, 2014
  • 3 replies
  • 2318 views

Does anyone know if its possible to simulate a steel plate that is subjected to a high convection coefficient and high bulk temp for the, say, first 4 - 5 seconds, and then subsequently be subjected to a low convection coefficient and low bulk temp for the remaining 2-3 minutes?

I want to simulate a steel plate that is subjected to a welding torch on one side of the plate for 4-5 seconds and then move the welding torch away from the plate.

Is this just a matter of combining constraint sets? Thanks,

Paul


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

ehaenen1-Visitor
1-Visitor
April 4, 2014

Hi Paul

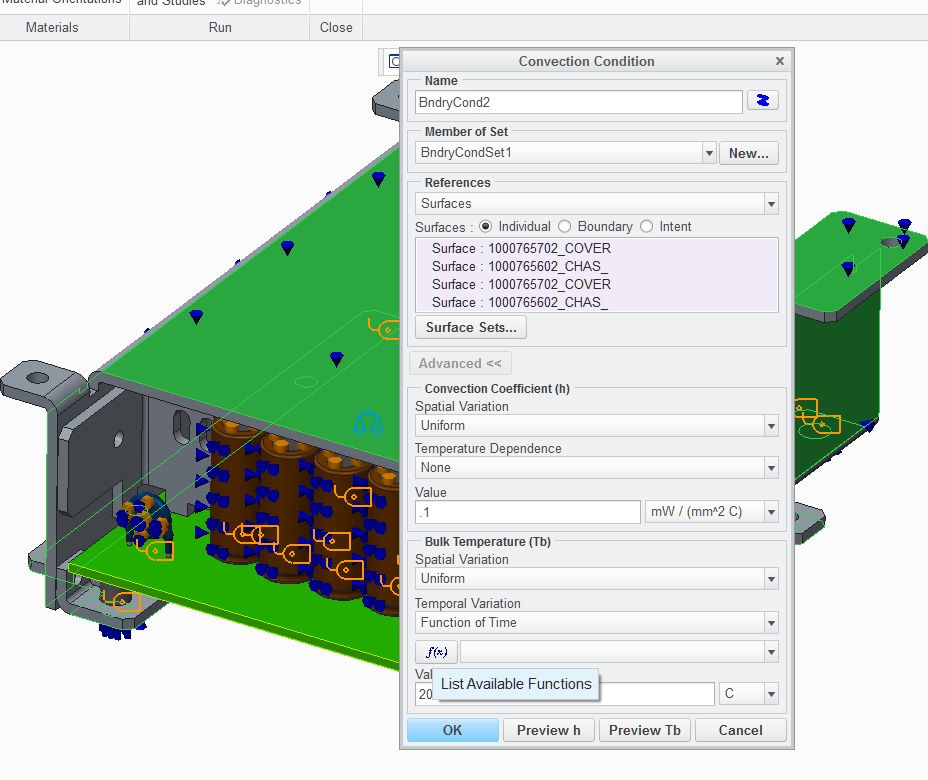

In a transient thermal you can add a time function to a convection condition, look at the attached picture.

If you need more info, do not hesitate to ask!

Regards


ptc-6514261-VisitorAuthor
1-Visitor
April 7, 2014

Hi Erik,

I can see from the image that it's possible to apply a temporal variation on the bulk temperature by defining an equation or table, but I'm more interested in having the convection coefficient change value as a function of time.

For example, can the convection coeff in your model (.1 mW/(mm^2 C) change to another value over time? Or is there something in the pull down menu from the pic you've attached that shows this and I'm somehow missing it? thanks!

ehaenen1-Visitor
1-Visitor
April 7, 2014

Hi Paul

You're right it looks like it's only the bulk temperature. Maybe you can work with that in a similar fashion as heat transfer is proportional to convection condition times temp difference. If you make the temperature difference small, there is little or no convection.

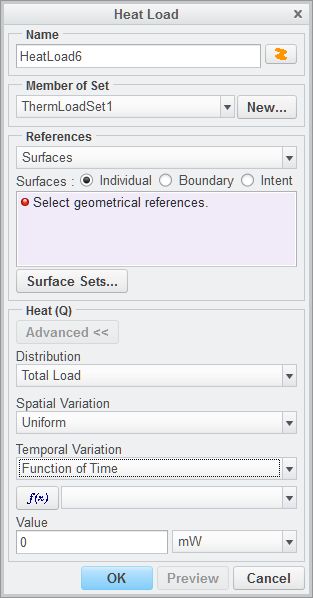

Or differently, I would model your welding torch as a heat load, which can vary over time using a function or a table.


Erik
