Need some help on displaying some measurements

Forum|Forum|12 years ago
October 28, 2013
1 reply
2577 views

To PTC Community

I am fairly new at Creo. I wonder if anyone know how to display dimensions/measurements on an assembly drawing such as the length, radius, and width of the assembled drawing. If there are any additional information that I need to provide for you to help, feel free to comment.

Thanks!

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Assembly Design

Best answer by Dale_Rosema

Are you looking to display the driven dimension within the mates or just the overall placement?

It looks like your asking for dimensions on a drawing and not on the model correct?

Can you just put the assembly model in the view and start placing dimensions?

Length -> click on on end and then on the other and place the dimension.

Diameter or radius of sphere -> use dimension (click once for radius and click once and Cntrl_click a second time for diameter) and then place?

Thanks, Dale

17-Peridot

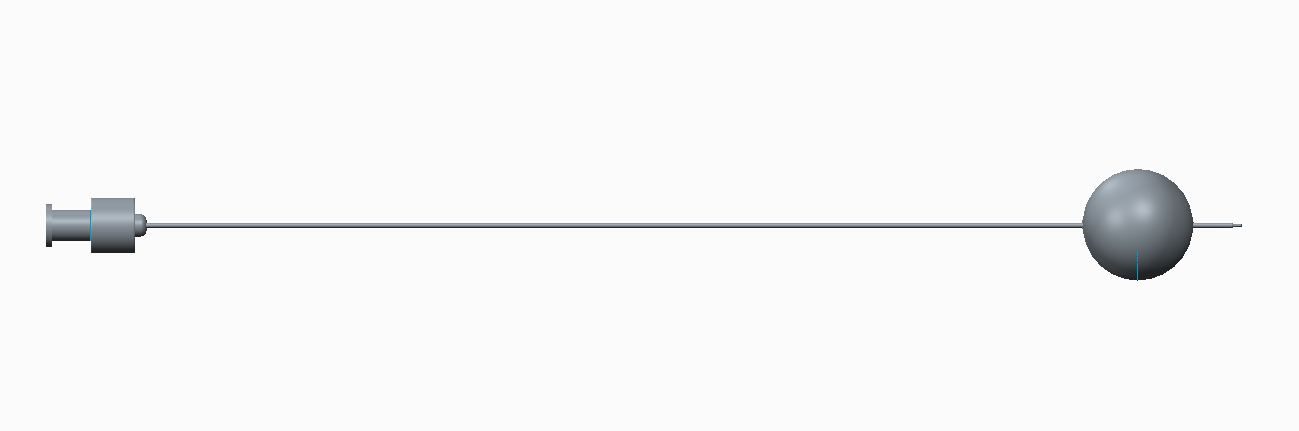

show me the assembly

Author

1-Visitor

Answer

23-Emerald III

Are you looking to display the driven dimension within the mates or just the overall placement?

It looks like your asking for dimensions on a drawing and not on the model correct?

Can you just put the assembly model in the view and start placing dimensions?

Length -> click on on end and then on the other and place the dimension.

Diameter or radius of sphere -> use dimension (click once for radius and click once and Cntrl_click a second time for diameter) and then place?

Thanks, Dale
