Need to put an Earth Ground symbol engraving on a sheet metal piece

As the title says, i need to put an earth ground symbol engraving on a sheet metal piece, only problem ist, the symbol is unicode, and doesnt show up when i put a text engraving on the workpiece. only thing that shows is a square because the program doesnt know the symbol. any suggestions on how to solve this issue?
KenFarley
KenFarleyAnswer
21-Topaz II
December 1, 2021

Sometimes the behavior of fonts in stuff I want to engrave is odd and I don't like it. For example, for some reason, the "1" character in isofont is not centered within the space it occupies. It's annoyingly shifted over from center.

In these instances, I take the only other option I've found. I sketch the "character" using lines and arcs, etc. Engraving works with any sketched entities. You can build some pretty cool stuff to have marked on your part. I've used it to do illustrations of which direction a lever is going to move something, what direction is "+" or "-" on a knob, etc.

View in thread

9 replies

VladimirN24-Ruby IV
24-Ruby IV
December 1, 2021

A similar question was previously - "Sketch on sheet metal surface": https://community.ptc.com/t5/3D-Part-Assembly-Design/sketch-on-sheet-metal-surface/td-p/231473

Translate
    cheezbert11-GarnetAuthor
    11-Garnet
    December 1, 2021

    Hi!

    Thanks for the quick answer, but unfotunately this is not a solution to my problem, since i can't get  this -> ⏚ in the text of the sketch, as it only shows a square, when i try to copy it in

    Translate
    KenFarley
    KenFarley21-Topaz IIAnswer
    21-Topaz II
    December 1, 2021

    Sometimes the behavior of fonts in stuff I want to engrave is odd and I don't like it. For example, for some reason, the "1" character in isofont is not centered within the space it occupies. It's annoyingly shifted over from center.

    In these instances, I take the only other option I've found. I sketch the "character" using lines and arcs, etc. Engraving works with any sketched entities. You can build some pretty cool stuff to have marked on your part. I've used it to do illustrations of which direction a lever is going to move something, what direction is "+" or "-" on a knob, etc.

    Translate
      cheezbert11-GarnetAuthor
      11-Garnet
      December 1, 2021

      thanks for your response, i guess sketching it out will be the only possible method for now.

      Translate
      tbraxton
      tbraxton22-Sapphire II
      22-Sapphire II
      December 1, 2021

      Sketching the symbol is not required. You can use unicode character definitions in notes.








      Translate
        tbraxton
        tbraxton22-Sapphire II
        22-Sapphire II
        December 1, 2021

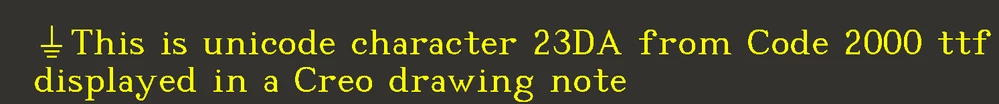

        It is possible to use unicode characters in text strings within Creo. You will need to load a true type font (.ttf) that supports the unicode characters required.



        Native fonts do not support UNICODE

        Hence no mapping file exists between the native fonts and unicodes

        Use a true type font instead, that supports unicode

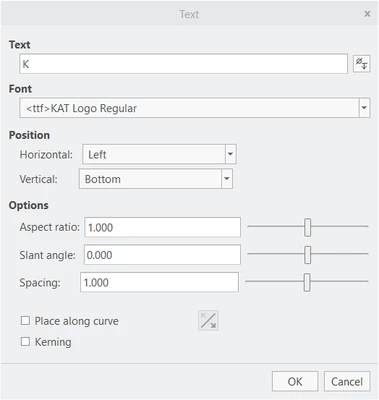

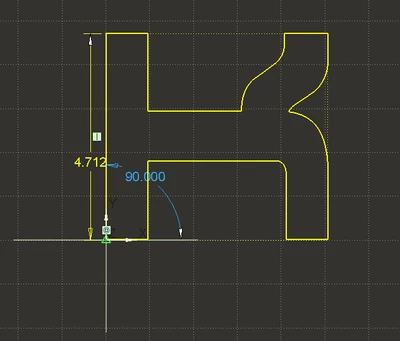

        This example illustrates an application where a logo is defined within a ttf font file.







        Translate
          KenFarley
          KenFarley21-Topaz II
          21-Topaz II
          December 1, 2021

          If you use a character like this, can you also engrave it? I seem to recall trying to use some nice characters in my marking "text" and having the engraving sequence fail...I've had engraving sequences fail because I had the audacity to use a comma in them...

          Translate
          tbraxton
          tbraxton22-Sapphire II
          22-Sapphire II
          December 1, 2021

          I have used .ttf logo definitions on many production designs made using injection molding, stamping, electroforming. I have not had any tool design or fabrication feedback that it was a problem. I have logo designs for the different processes so that a molded logo is not identical geometry to a stamped version as an example.

          Translate
          cheezbert11-GarnetAuthor
          11-Garnet
          December 2, 2021

          Hey everyone, i guess i was a bit to fast on accepting sketching out as final answer, as i found this after a lot of research, which is basically exactly my problem, and after following the steps it also works now in text
