Nested BOM and BOM balloons

Hi all,



I have an assembly with 4 sub-assemblies

Under this 4 Subs, i have some components

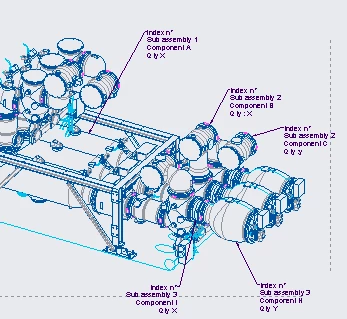

I would like to obtain something like this, but automated with a BOM and special Symbol in place of BOM Balloons


But... I tried:

- Nested tables

- A table with several repeat regions (one by Sub-assembly)

- table with model columns



Without any success.

How could i obtain the above result with CREO?



Regards

Dom_BOUCHARDYAnswer
12-Amethyst
Feb 24, 2026 3:05 PM UTC

Hi Martin, Hi Catalina,



I found my happiness here : Solved: Upper-level assembly name on repeat region - PTC Community



Regards

View in thread

3 replies

Catalina
CatalinaCommunity Manager
Community Moderator
Feb 24, 2026 2:20 PM UTC

Hi @Dom_BOUCHARDY

Thank you for your question.

Your post appears well documented but has not yet received any response. I am replying to raise awareness. Hopefully, another community member will be able to help.

Also, feel free to add any additional information you think might be relevant.



Best regards,

Translate
Catalina | PTC Community Moderator
Martin_Hill10-Marble
10-Marble
Feb 24, 2026 2:42 PM UTC

I think that this should be possible with a custom Balloon symbol and a nested repeat region.



The nested repeat region should be similar to the one in the PTC documentation: Examples: Nested Repeat Regions

Translate
Dom_BOUCHARDY12-AmethystAuthorAnswer
12-Amethyst
Feb 24, 2026 3:05 PM UTC

Hi Martin, Hi Catalina,



I found my happiness here : Solved: Upper-level assembly name on repeat region - PTC Community



Regards
