New GD&T Profile Tolerance

  • April 2, 2014
  • 4 replies
  • 7405 views


[cid:image001.png@01CF4E79.95116BF0]

A new symbol, circle U, was added to profile tolerance. In the past, a design engineer wanting to specify an unequal profile tolerance on the drawing would draw a chain line in the applicable area. Two arrows were shown to displace the tolerance zone. In the new standard, the circle U symbol follows the toleranced value in the profile feature-control frame. This announces that an unequal tolerance is in effect.

Is there some way to add this to the interface?

[cid:image003.png@01CF4E83.87B03C70]


Regards,

[cid:012445618@15012007-1FE4]
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

4 replies

K
kimndave91-Visitor
1-Visitor
April 2, 2014


It's almost 5 years since ASME added the (U) symbol and almost 10 year since it was first proposed. If it's not there now...


Besides, the chain line is more direct.


x

G
gdt1-Visitor
1-Visitor
April 2, 2014
A circle U is used in ASME, ASME Y14.41-2003 to be exact.It refers to the distance from the surface a profile tolerance is offset. A distance of 0.000 means that the tolerance is bilateral.This does away with having to draw a phantom line to denote which side a profile tolerance is applied to.
If its not a standard in the ProE drawing call out make a symbol

From: -
To: -
Subject: [proecad] - New GD&T Profile Tolerance
Date: Wed, 2 Apr 2014 18:57:10 +0000













A new symbol,
circle U, was added to profile tolerance. In the past, a design
engineer wanting to specify an unequal profile tolerance on the drawing would draw a chain line in the applicable area. Two arrows were shown to displace the tolerance zone. In the new standard, the circle U symbol follows the toleranced value in the profile
feature-control frame. This announces that an unequal tolerance is in effect.

Is there some way to add this to the interface?




Regards,










Robert Altman
Manager, CAD Engineering & Tech Support




C
ChadSmith1-Visitor
1-Visitor
April 2, 2014

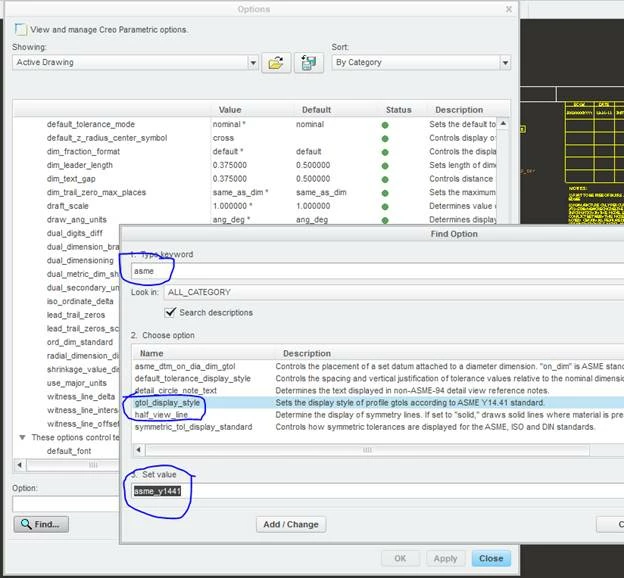

You can turn this on in the drawing options.

ASME Y14.41

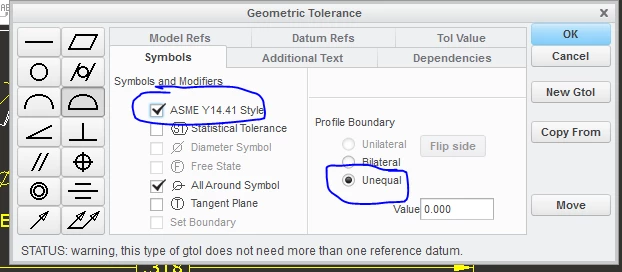

Circle U and other ASME Y14.41 settings
File-> Prepare-> Drawing Properties ->Detail Options

[cid:image004.jpg@01CF4E83.014CB3C0]

[cid:image005.png@01CF4E83.014CB3C0]


[cid:image001.png@01CE8938.2DDEC0B0]

Chad Smith
Product Engineer | Upper Extremity
www.acumed.net
K
kimndave91-Visitor
1-Visitor
April 2, 2014

Ahh, Creo or Creo 2


x
