Question

oloid model

  • March 9, 2010
  • 1 reply
  • 9938 views
Hello, I've learned about this really great shape called an Oloid and I was wondering how to make it in ProE. The shape is basically taking two disks of equal dims and perpendicularly intersecting them so they touch each others centers. Then after having the two disks together, you stretch a "skin," like a balloon, over the disks to make it a solid piece. Just look up oloid on google to get pictures. Ploting the disks is pretty easy but I have a hard time getting the "skin" on there, does anyone have any ideas? Thanks, Allen
This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

12-Amethyst
March 10, 2010
thats a cool shape! i think i would attempt that by using a skeleton of curves then patching it all together with surfaces from boundaries and useing the tangent boundary constraints so its all nice and smooth. theres probably 20 other ways to do it but that what came to mind first. might be able to do a surface free form and manipulating all those points
12-Amethyst
March 10, 2010

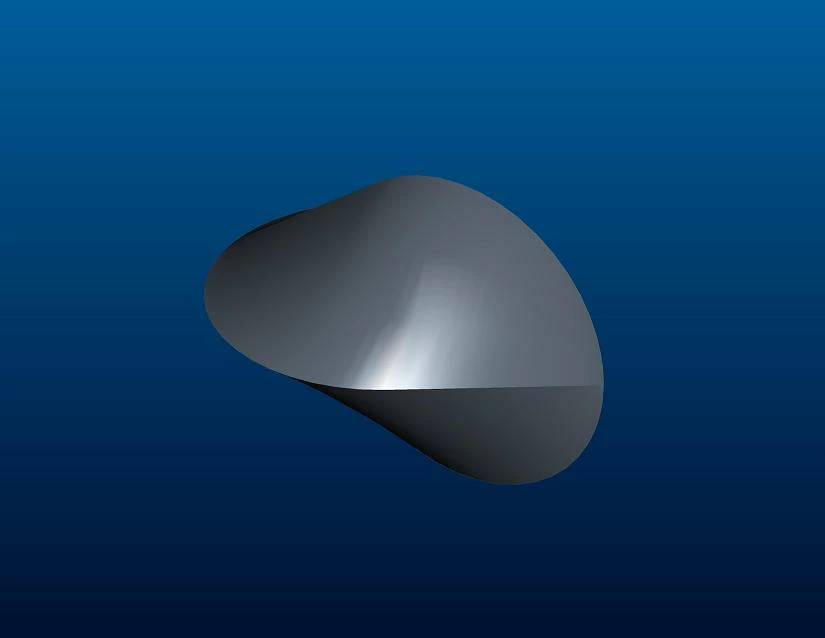

like this?
12-Amethyst
March 10, 2010
sorry about that huge pic
