Ordinate Dimension Style Like AutoCAD

  • December 30, 2017
  • 1 reply
  • 2606 views

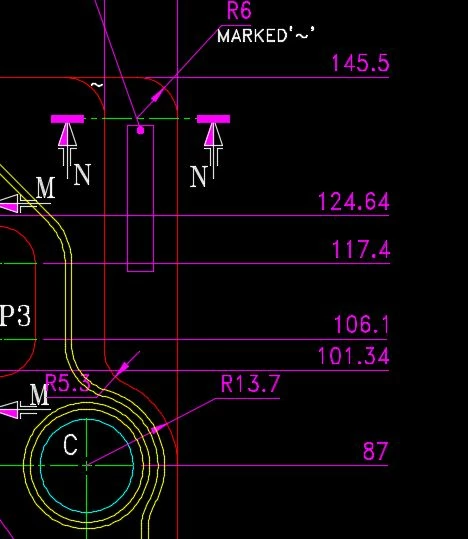

Hi there i want the text of dimension over the Line, like as per attached screen shot in Creo.

Please help. My Current version is Parametric 4.0 M30.





1 reply

L
llie17-Peridot
17-Peridot
January 2, 2018

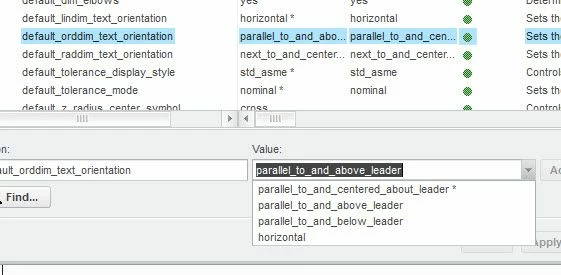

In the Drawing, go to File, Prepare, Drawing Properties, Change for Detail Options. You might have to play with some of the other options as well as the one that is highlighted in the image.



ordinate dim.jpg

P
preetamnegi71-VisitorAuthor
1-Visitor
January 3, 2018

Hi there, thanks for the reply i had already tried this, also explored tools but couldn't come close to the style shown above.



Thanks for your reply.
