Part geometry defective after STEP Export

Forum|Forum|11 years ago
September 3, 2015
8 replies
3727 views

Hello CAD community,

I have here a very remarkable mistake for which I have no solution found so far.

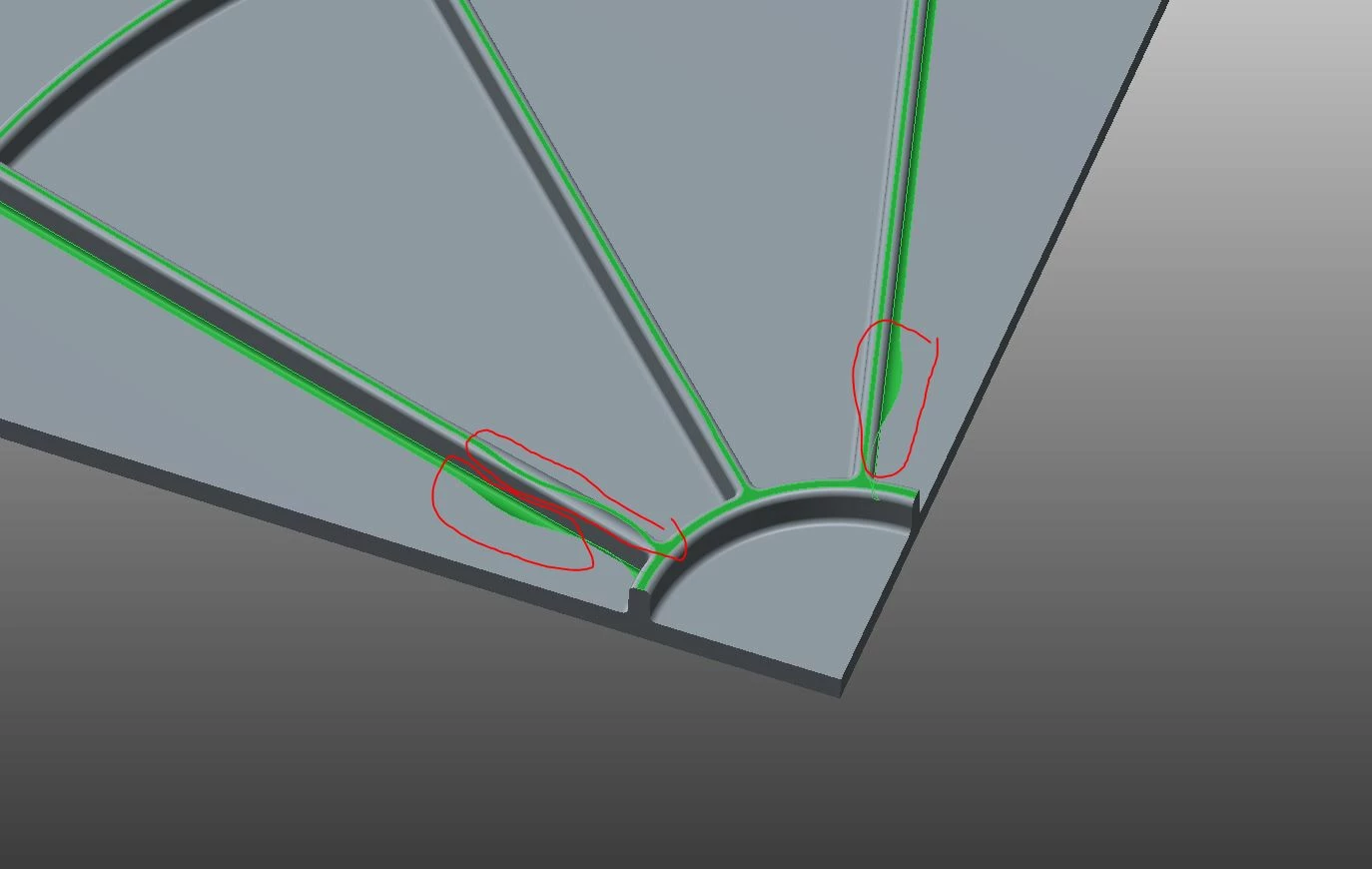

The following CAD File is after exporting as stp file and the subsequent import into Creo 2.0 in the marked area faulty or defective.

When exporting as IGS and the subsequent import into Creo 2.0 this problem is not the case.

Can someone help me here what this could be?

Thanks in advance

Heiko

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2_stp_export_fehler.zip

2D Drawing

M

MauroStefanovic

1-Visitor

Not in this case, but i have noted that Creo hates sometimes rounds with many sets or sets with heavy intent edges. I think in this case Creo inverts normal of rounds. Try many feature of rounds, instead of heavy features. I know, it's tedious, but try...

I

Inoram

14-Alexandrite

Standard issue import/export errors. With STEP, try a different version of STEP like one of the 214s. Also, are you using absolute accuracy and adjusting it to be more accurate? And then you can import on different accuracy, either by using a template, or external accuracy or change it after import, these will probably all produce a different result.

H

hhagedorn

Author

10-Marble

Hello Mauro and Matt,

I have already tried to apply different rounding solutions without real success.

And yes, the accuracy of the parts is absolute, with 0.01. I've changed the accuracy to 0.001. These I have made in both files, in the prt and in the import template. The change of the accuracy in the import part, was also unsatisfactory.
