Patch thickening of surface model

  • April 12, 2016
  • 7 replies
  • 2416 views

Hello,

I'm struggling to thicken part of my surface model. I've created a boundary blend on the inside and tried to thicken that, which has failed. It says the part has failed to intersect.

I was then intending to solidify the external surface to fill the patch in the model.

I have attached a step file of the model. The problem is in prt006.

I think the problem could be due to a converging line on the external surface.

I would appreciate any help.

Sam


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

7 replies

MartinHanak24-Ruby III
24-Ruby III
April 13, 2016

Hi,

your part and assembly were created in educational version of Creo. Nobody with commercial version can open it.

MH

rohit_rajan15-Moonstone
15-Moonstone
April 13, 2016

Martin then you would need to install the educational version.

MartinHanak24-Ruby III
24-Ruby III
April 13, 2016

Rohit,

you are good joke-teller, aren't you ?

MH

TomD.inPDX17-Peridot
17-Peridot
April 13, 2016

If I understand your problem, you may try to patch both inside and outside.  This should allow you to solidify the patched region.

swhitehead-rice1-Visitor
1-Visitor
April 13, 2016

Hi everyone,

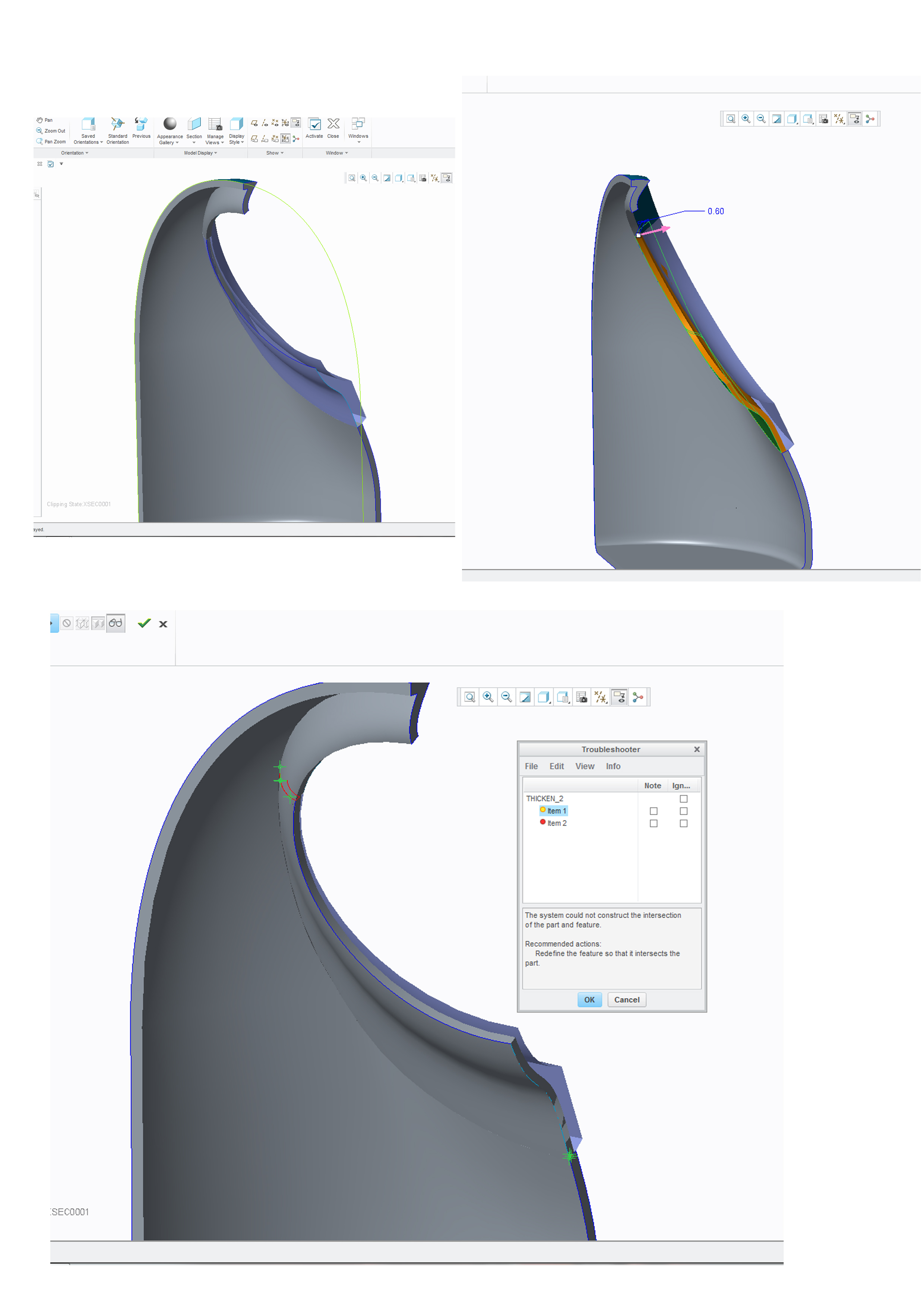

thanks for replying. I've attached a set of screen shots, which I hope shows the problem more clearly.

thanks,


TomD.inPDX17-Peridot
17-Peridot
April 13, 2016

This is a tough one.  I might suggest removing one surface of the solid to make the whole part a quilt.  Next, make the patch; combine into a single quilt of only one skin; then thicken the entire quilt again.
