Pattern Boundary Blend Surface

  • April 2, 2014
  • 2 replies
  • 6455 views

Hi,

I want to check if it is possible to pattern a boundary blend?

I tried doing this. The pattern would fail, I have to use Geormetry pattern instead.

I have a rectangle cut on a surface. I used boundary blend to blend. I can pattern the sketch, trim, but not boundary blend.

Is there a way to do this?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by ptc-5498717

Thanks. I got it to work. I created the surface blend once first then create the pattern, then I go back and pattern the sketches, trim and sketch. That sims to fixed it.

I tried to group and pattern first, then create the blend then pattern. That did not seam to work.

2 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
April 2, 2014

Hi HH,

Boundary blend can pattern in a part. Possible reason for failure can be part accuracy, try to change the accuracy of part and check if that helps you.


Regards,

Mahesh

P
ptc-54987171-VisitorAuthorAnswer
1-Visitor
April 2, 2014

Thanks. I got it to work. I created the surface blend once first then create the pattern, then I go back and pattern the sketches, trim and sketch. That sims to fixed it.

I tried to group and pattern first, then create the blend then pattern. That did not seam to work.

T
TomD.inPDX17-Peridot
17-Peridot
April 2, 2014

Patterns can be fussy. Just changing a single reference can make a failed pattern function again.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
April 2, 2014

I've had instances where on one side of a part I gouped features, then patterend them, and on the other side it didn't work. So I patterened the first feature, then reference patterned the rest and it worked.

Pro/WORKAROUND at it's finest!

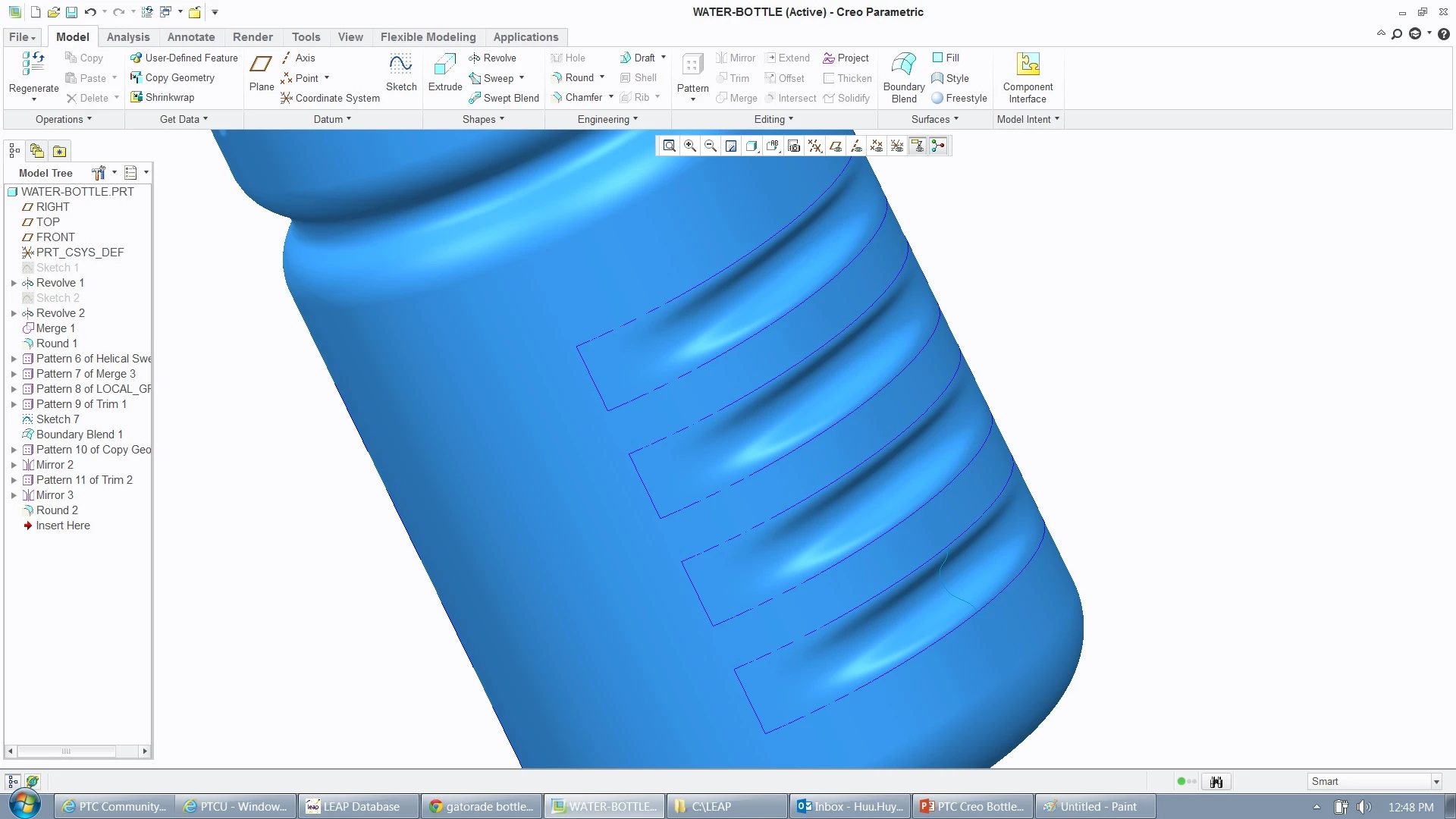

My question, is if you're making a bottle (and not just doing a learning demo), why go thru the trouble to make a Boundary Blend for those cuts (I assume, like the video)? You can make a very similar shape without all that baggage by simply making a cut, circular or elliptical if viewed from the top and use a round. You can even get tricky and use a variable radius round. Boundary blends are finnicky at the best of times, best to avoid them as much as you can in the real world.

T
TomD.inPDX17-Peridot
17-Peridot
April 2, 2014

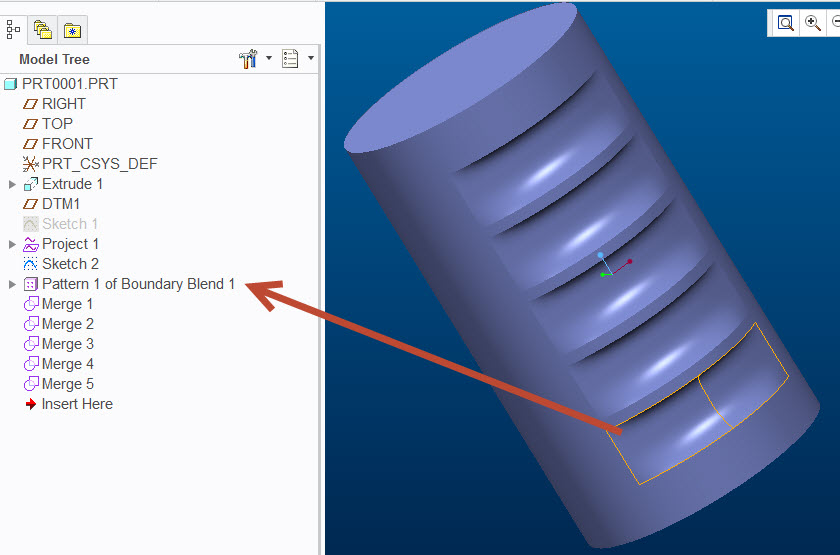

...or just sweep a surface through the bottle quilt, pattern them, and then merge them.

Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
April 2, 2014

Yup. For those little indents, in the real world, I'd never use a BB. But, as I mentioned I think he was trying a demo or lesson.
