Pipe Start part - automatic creation of revolve plane

  • February 19, 2013
  • 1 reply
  • 3278 views

Hi All



My first post.



Is it posible to create a start_part for piping with code [program or relations] to create a datum_plane at spool first and last length?

What I am trying to achieve is to do a end treatment of the pipe fast and easy.

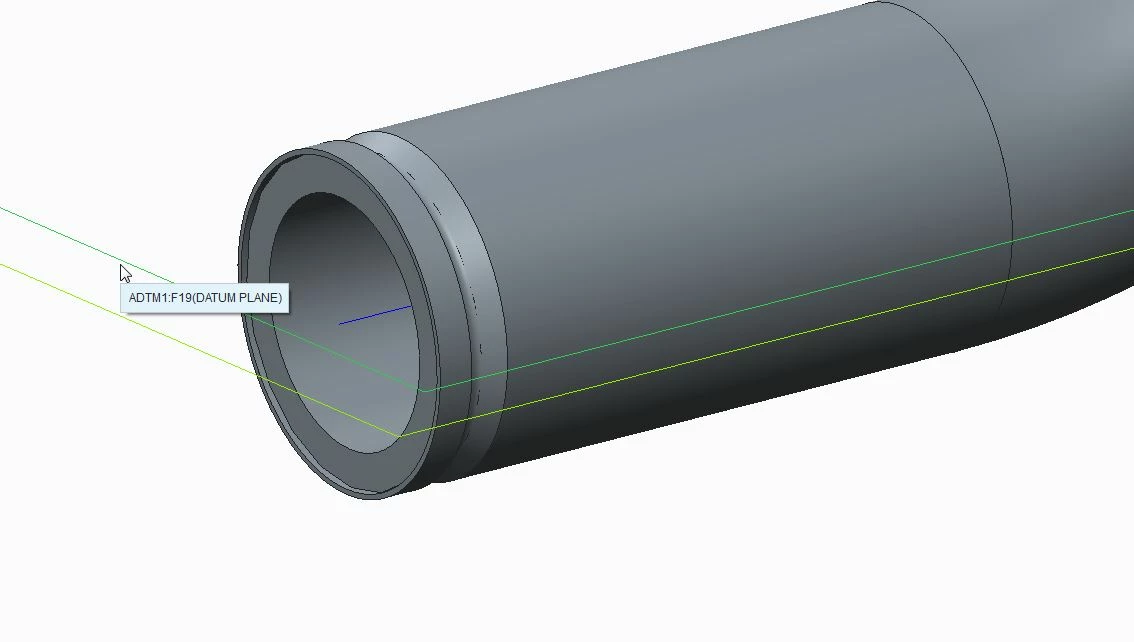

See attache picture.



Program Creo 2.0 Parametric with piping extention.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
February 19, 2013

You might consider UDF ...user defined feature.

O
OleH1-VisitorAuthor
1-Visitor
February 20, 2013

Thanks for the answer.

I am using UDF wiht a family table for all dimensions, to create the features.

But the UDF requires a Datum_plane to place the "revolve sketch".

What I am trying to achieve is to automate the process through a script or simmilar in the start_part.prt

Does this make any sense at all ?

    T
    TomD.inPDX17-Peridot
    17-Peridot
    February 20, 2013

    What kind of relation do you want for this plane prior to creating the part?
