Placing cross/4-way branch fittings with Spec-driven piping.

  • July 30, 2014
  • 1 reply
  • 1794 views

Fellow ProENGINEER/CREO users,

I'm having the following issue(s):

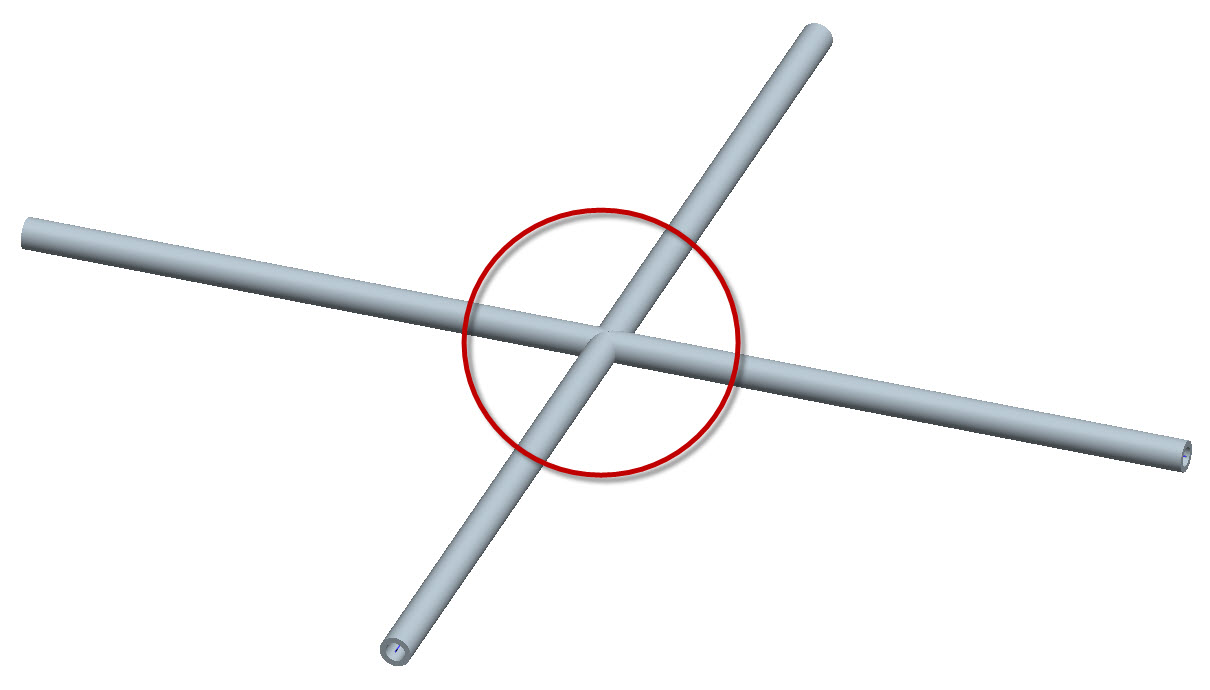

  • How to route a pipeline so that a proper 4-way branch connection is made?
  • How to place/configure a 4-way branch fitting in combination with spec-driven piping?

I've allready searched the entire (for as far as that is possible) PTC Knowledgebase and PTC help-files, there is however no documentation on how to even route a 4-way branch connection.

Examples/explanations that use non-spec driven piping are also of help!



If there is more information needed please let me know!

Thanks in Advance,

With Kind Regards,

Hein van den Broek



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

H
hvandenbroek1-VisitorAuthor
1-Visitor
July 30, 2014

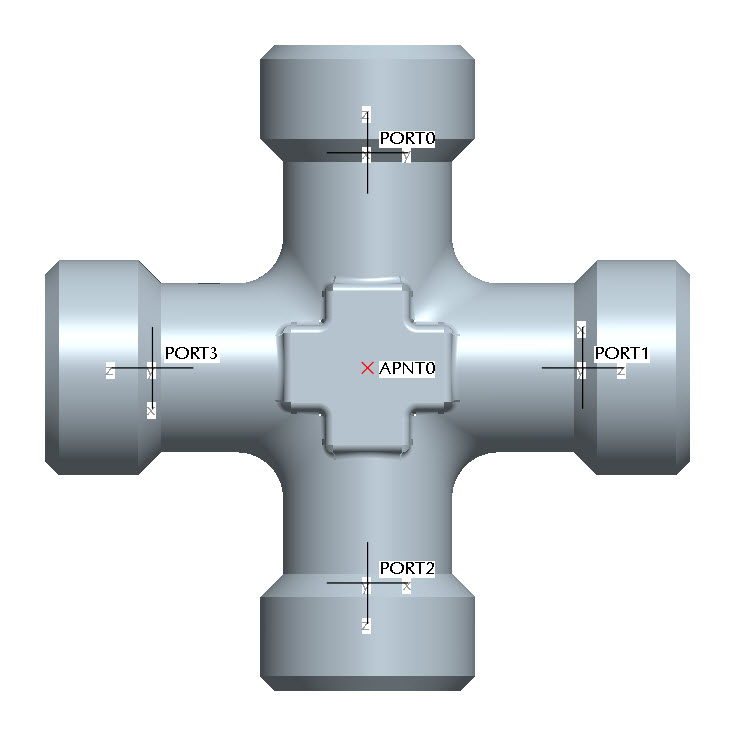

Some extra information about the fitting I used:

PORT0, PORT1, PORT2 and PORT3 coordinate systems are available. (I asume they are in the correct orientation/order)

PORT0 coordinate system has the following feature parameters:

  • SIZE = DN005
  • END_TYPE = WF

Component has the following parameter:

  • FITTING_CODE = BRANCH


These all correspond with the spec-driven piping configuration file parameters.

T-fittings (3-way branch fittings) work like a charm by the way.

J
JimBarrettSmith5-Regular Member
5-Regular Member
July 31, 2014

Hi

I am sorry to say Spec piping does not currently support cross T's

Thanks, Jim
